RNK368.0220.4.02.IK

Cartridge

Part number RNK3680220402IK

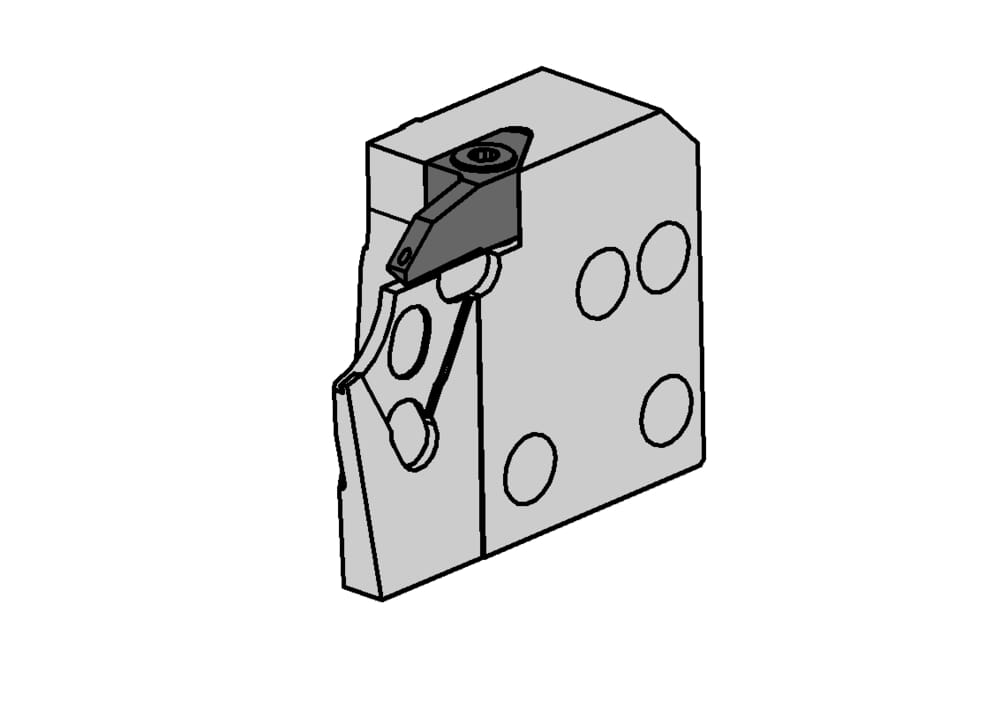

HORN Cartridge RNK368.0220.4.02.IK for Turning

Clamping range minimum (Spannbereich)

1.2 mm

cutting-width-min-met

1.2 mm

cutting-width-max-met

1.5 mm

Plating seat size (Größe)

Katalog_CCTMS

220001

ISO_CCTMS

HORN22000193$$

DIN_CCTMS

HORN-22000193

Katalog_CCTWS

31211N

DIN_CCTWS

HORN-31211000N

ISO_CCTWS

HORN-31211$000N$$$$$

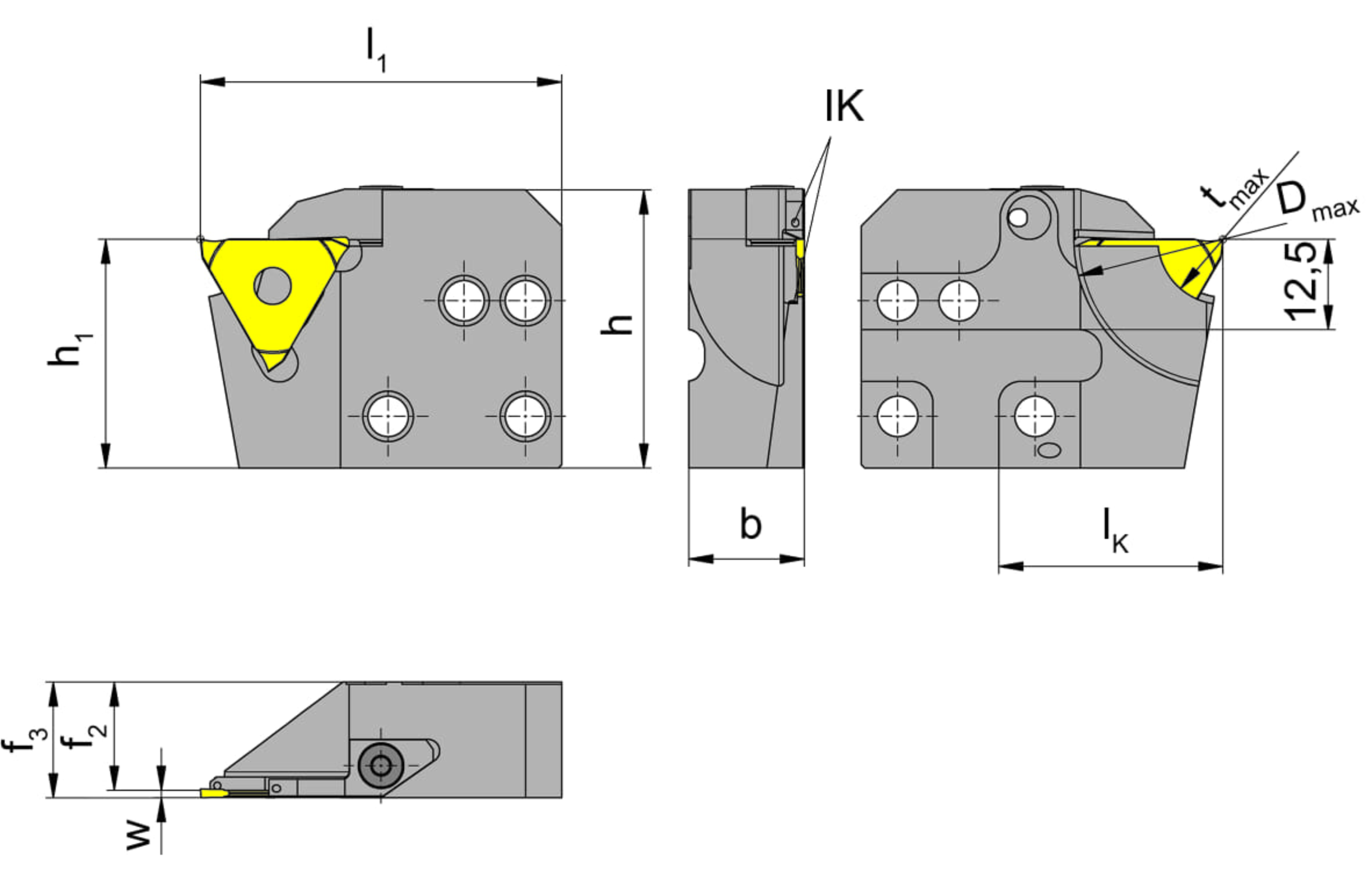

Adjustment dimension of system cassette formula (f3)

f2+w-a1

Clamping range maximum (Spannbereich)

1.5 mm

eclass-shortcut

21-02-90-90

Peak height (h1)

31.65 mm

Maximum workpiece diameter (Dmax)

40 mm

Maximum depth of groove (tmax)

8 mm

Length of unit cassette to cutting edge (lK)

31 mm

Cassette thickness (b)

16 mm

Height (h)

38.5 mm

Adjustment dimension cutting center (f2)

14.7 mm
