RS108.1846.R4 TH35
Insert
Part number RS1081846R4TH35

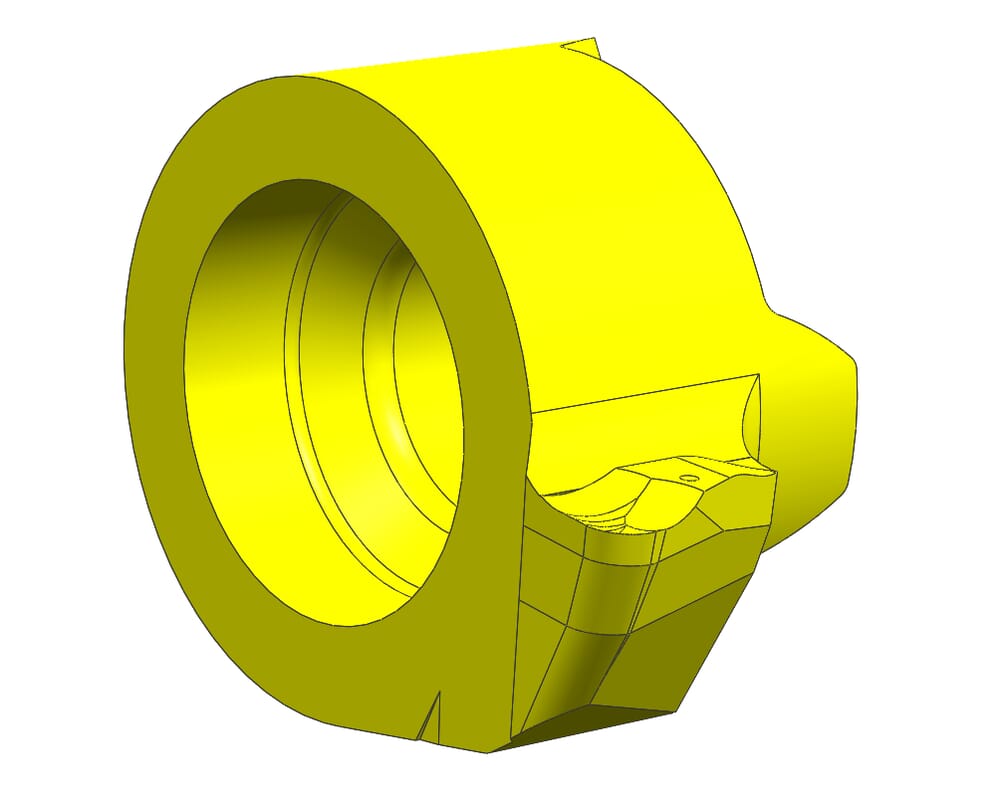

HORN Insert RS108.1846.R4 TH35 for Turning
Please note:Technical instructions
Top radius (r)
0.4
mm
Head size (a)
7.65
mm
eclass-shortcut
21-18-20-11
ISO_SSC
HORN108060$84R$$$$$
DIN_SSC
HORN-10806084R
Katalog_SSC
108060R
Setting range radial (f)
4.65
mm
Tooth diameter, head diameter (d)
6
mm
Cutting insert height, Cutting insert thickness (s)
3.4
mm
Smallest bore diameter (Dmin)
7.8
mm
| Downloads | |
|---|---|
| RS1081846R4_20230116_130427492.STP | Download |
| RS1081846R4_20210629_025049529.DXF | Download |
| Download all files | |
