RS10P.0150.1.D1 EG55

Insert

Part number RS10P01501D1EG55

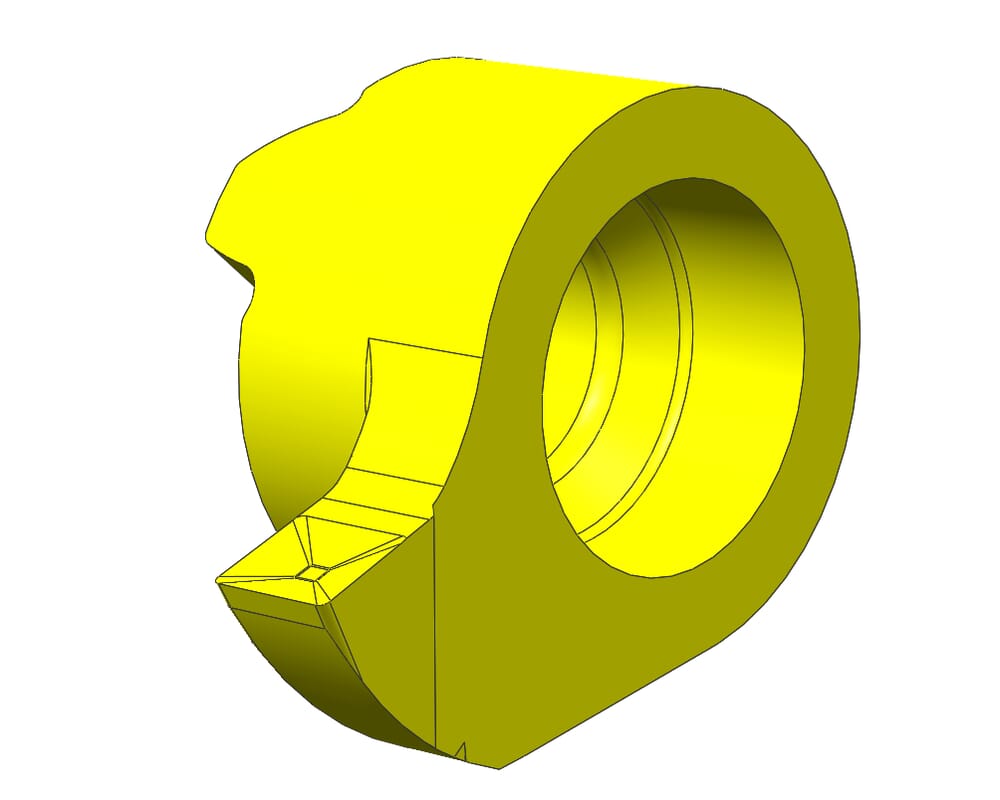

HORN Insert RS10P.0150.1.D1 EG55 for Turning

ISO_SSC

HORN10P060$84R$$$$$

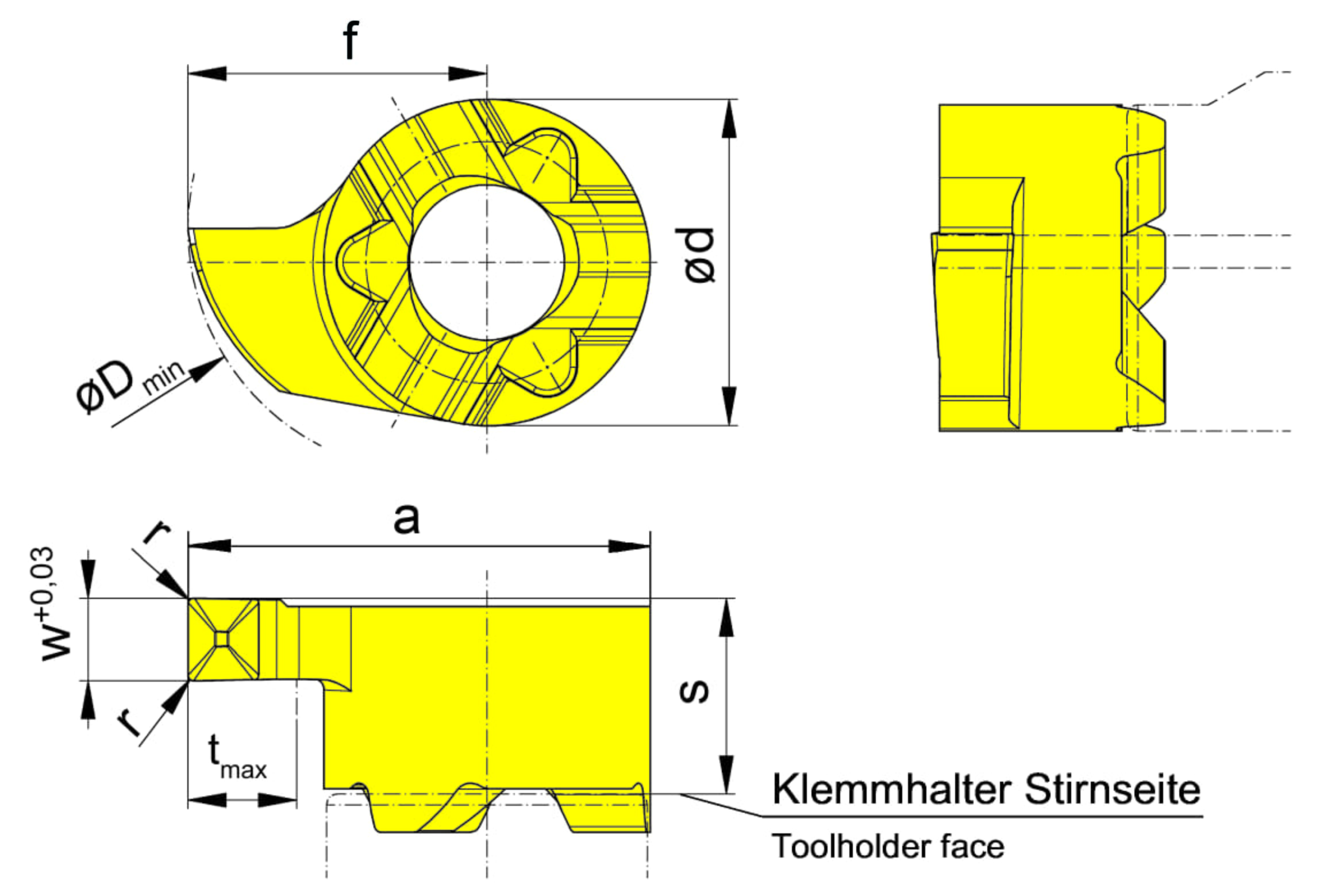

Smallest bore diameter (Dmin)

9 mm

Cutting insert height, Cutting insert thickness (s)

3.6 mm

Corner radius (r)

0.1 mm

Tooth diameter, head diameter (d)

6 mm

Setting range radial (f)

5.5 mm

Width of groove (w)

1.5 mm

Katalog_SSC

10P060R

DIN_SSC

HORN-10P06084R

eclass-shortcut

21-18-20-11

Maximum depth of groove (tmax)

2 mm

Head size (a)

8.5 mm
