RS10P.1854.R2 TH35
Insert
Part number RS10P1854R2TH35

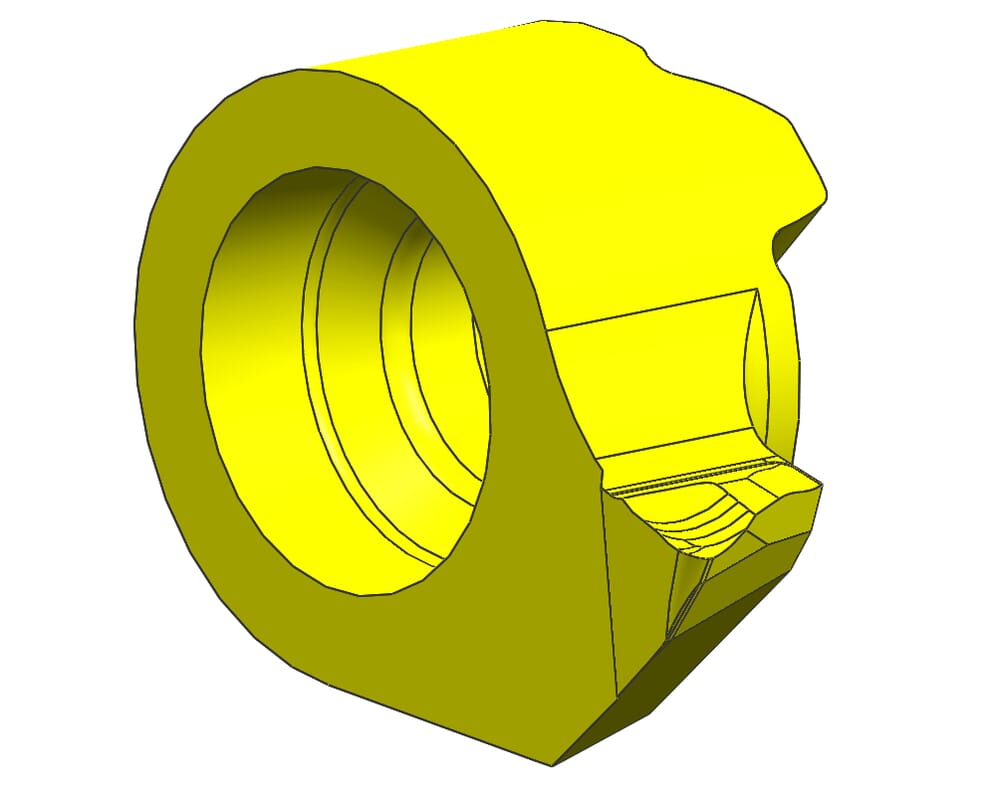

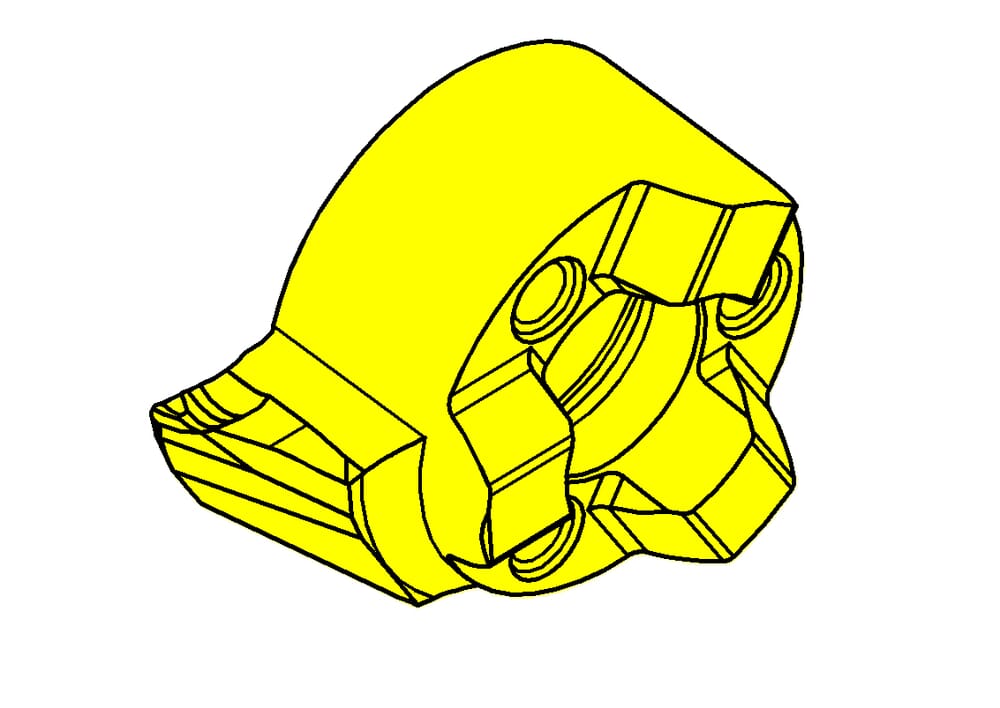

HORN Insert RS10P.1854.R2 TH35 for Turning
Please note:Technical instructions

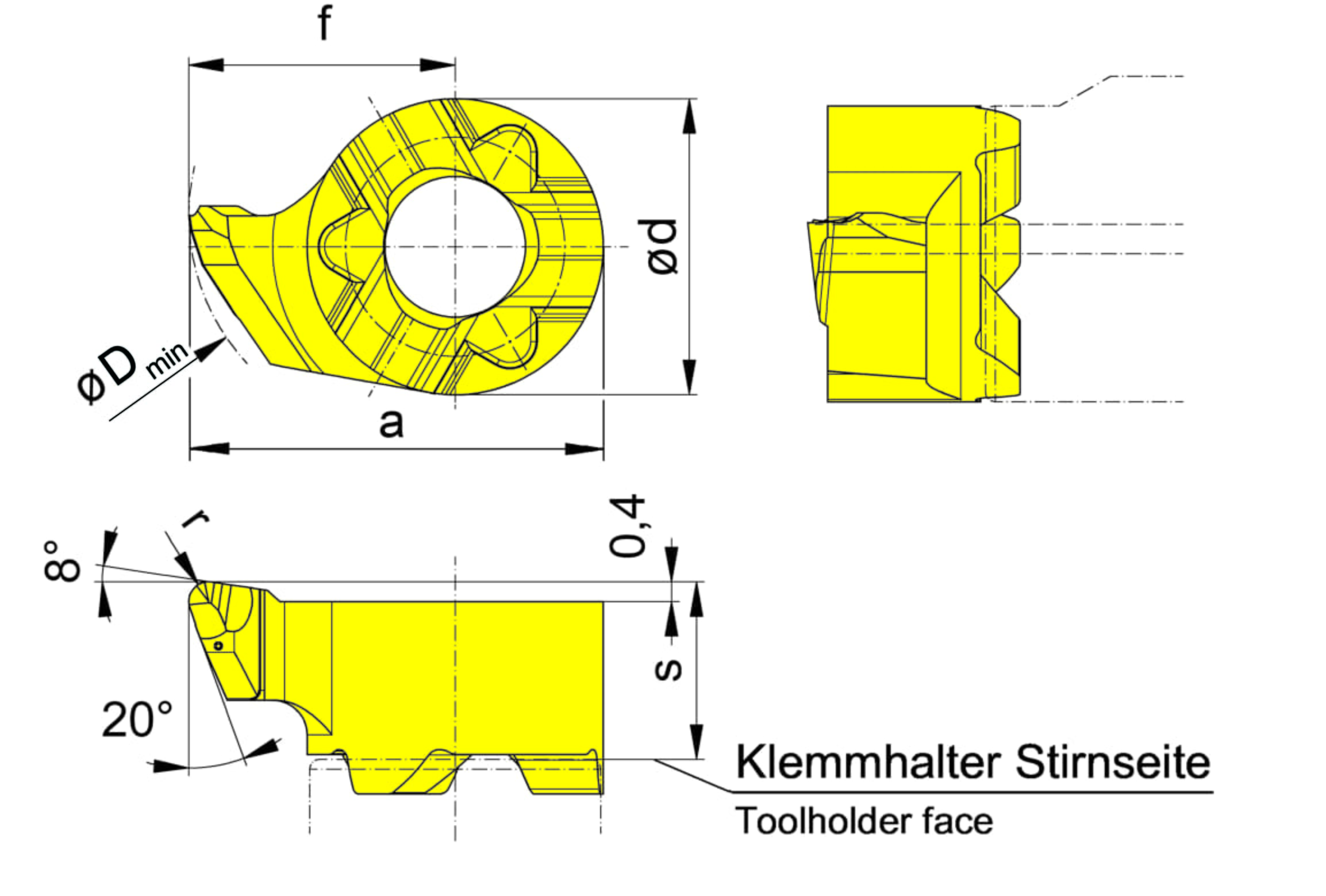

Top radius (r)
0.2
mm
Head size (a)
8.4
mm
eclass-shortcut
21-18-20-11
ISO_SSC
HORN10P060$84R$$$$$
DIN_SSC
HORN-10P06084R
Katalog_SSC
10P060R
Setting range radial (f)
5.4
mm
Tooth diameter, head diameter (d)
6
mm
Cutting insert height, Cutting insert thickness (s)
3.6
mm
Smallest bore diameter (Dmin)
8.8
mm
| Downloads | |
|---|---|
| RS10P1854R2_20230116_131055229.STP | Download |
| RS10P1854R2_20210629_024105642.DXF | Download |
| Download all files | |
