RS114.0300.1.D2 TH35
Insert
Part number RS11403001D2TH35

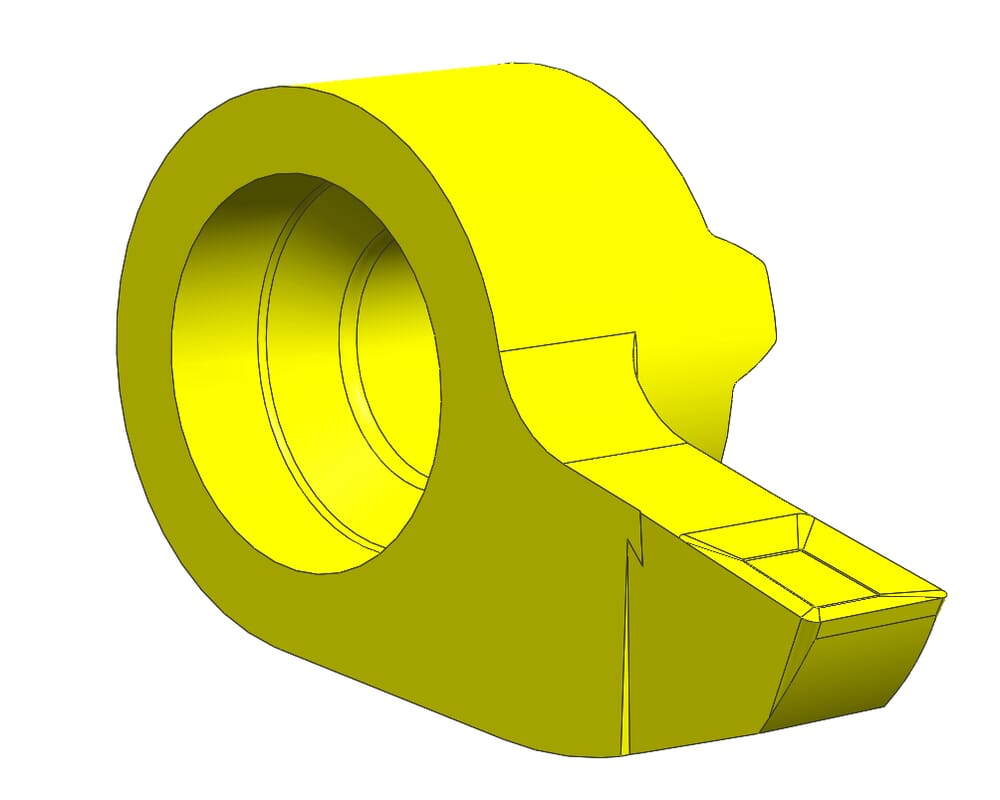

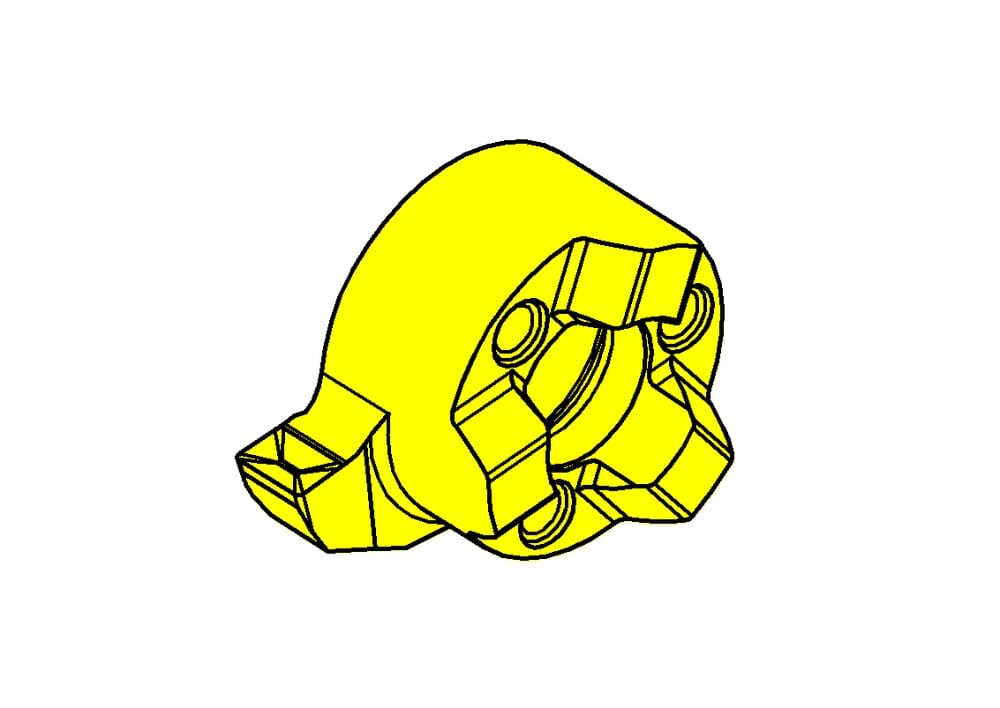

HORN Insert RS114.0300.1.D2 TH35 for Turning
Please note:Technical instructions
ISO_SSC
HORN114090$84R$$$$$

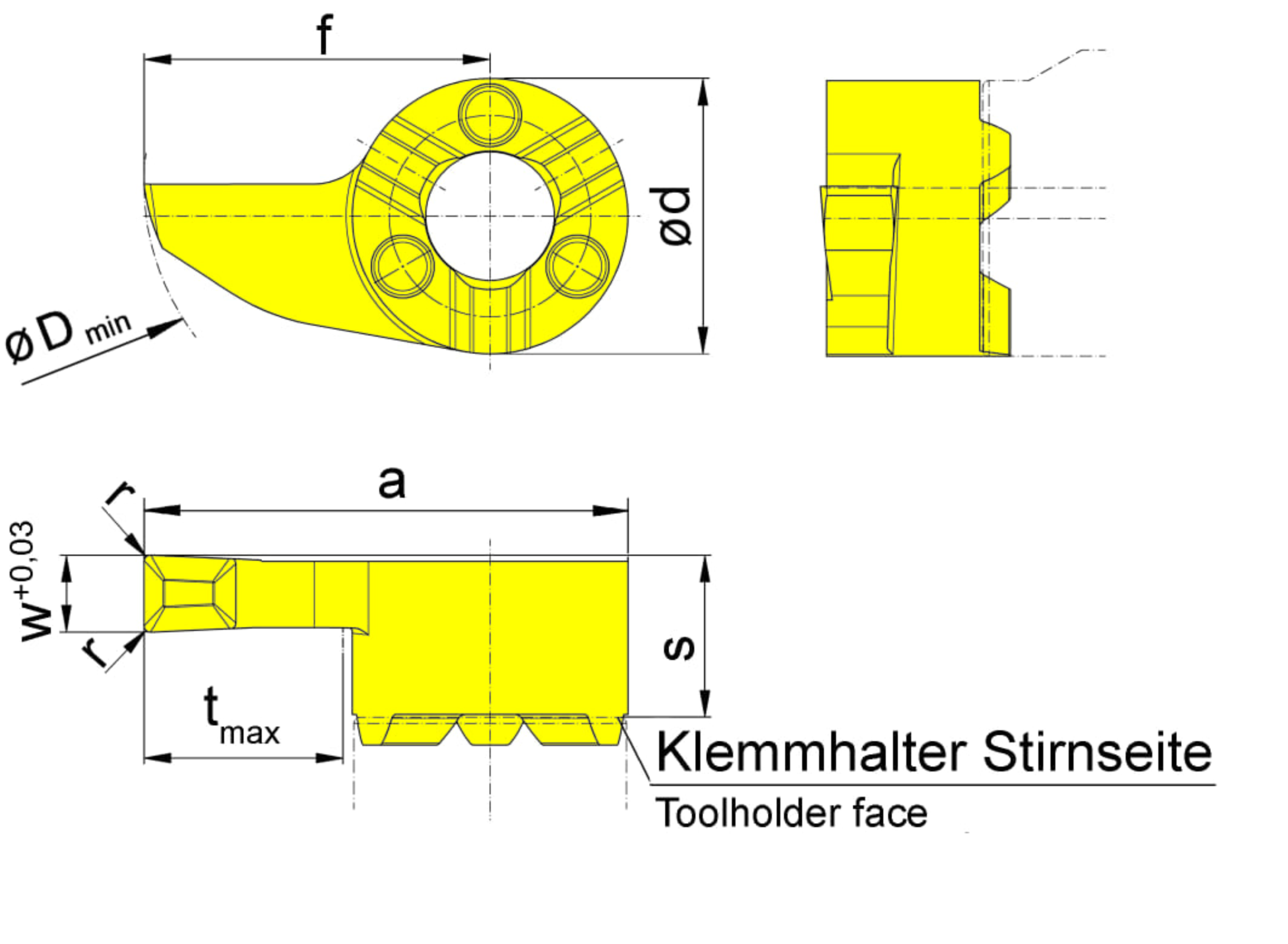

Smallest bore diameter (Dmin)
16.5
mm
Cutting insert height, Cutting insert thickness (s)
5.3
mm
Corner radius (r)
0.2
mm
Tooth diameter, head diameter (d)
9
mm
Setting range radial (f)
11.3
mm
Width of groove (w)
3
mm
Katalog_SSC
114090R
DIN_SSC
HORN-11409084R
eclass-shortcut
21-18-20-11
Maximum depth of groove (tmax)
6.5
mm
Head size (a)
15.8
mm
