RS114.1890.R2 TH35
Insert
Part number RS1141890R2TH35

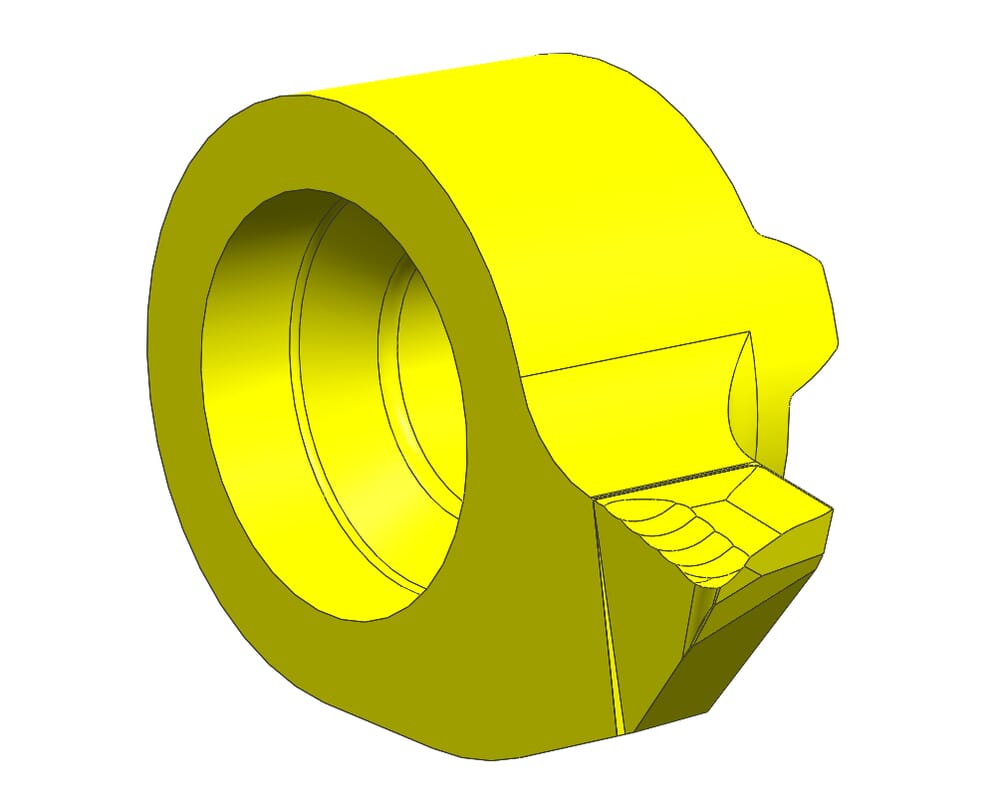

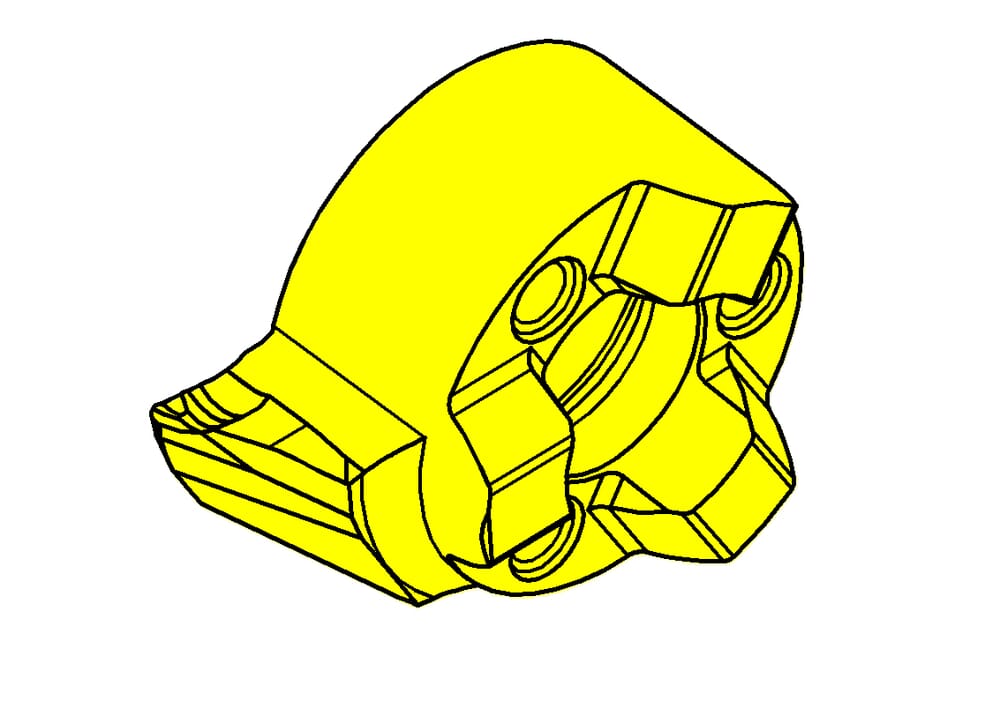

HORN Insert RS114.1890.R2 TH35 for Turning
Please note:Technical instructions

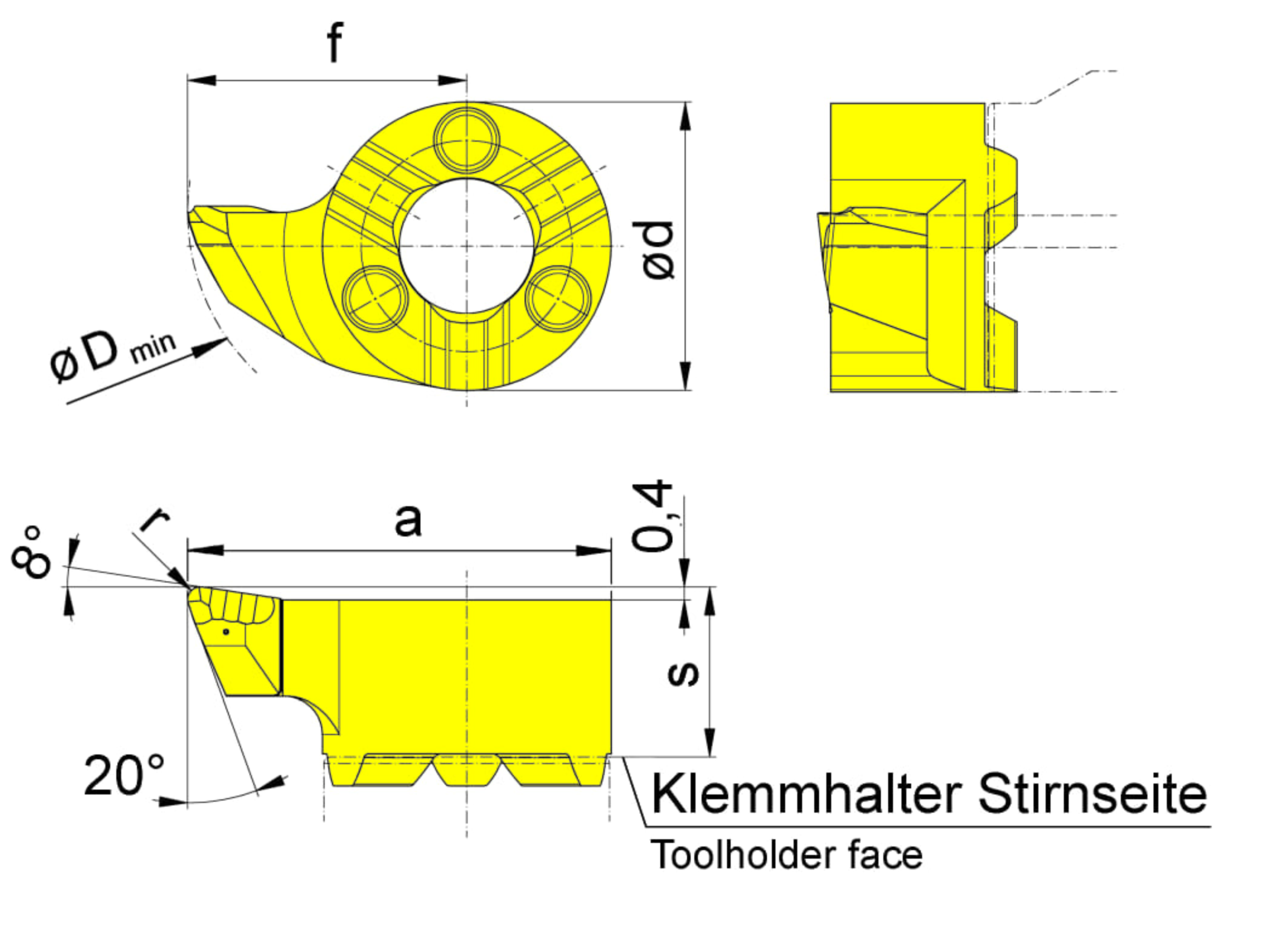

Top radius (r)
0.2
mm
Head size (a)
13.2
mm
eclass-shortcut
21-18-20-11
ISO_SSC
HORN114090$84R$$$$$
DIN_SSC
HORN-11409084R
Katalog_SSC
114090R
Setting range radial (f)
8.7
mm
Tooth diameter, head diameter (d)
9
mm
Cutting insert height, Cutting insert thickness (s)
5.3
mm
Smallest bore diameter (Dmin)
13.8
mm
| Downloads | |
|---|---|
| RS1141890R2_20230116_132529450.STP | Download |
| RS1141890R2_20210629_025352549.DXF | Download |
| Download all files | |
