RS116.1897.R4 TH35
Insert
Part number RS1161897R4TH35

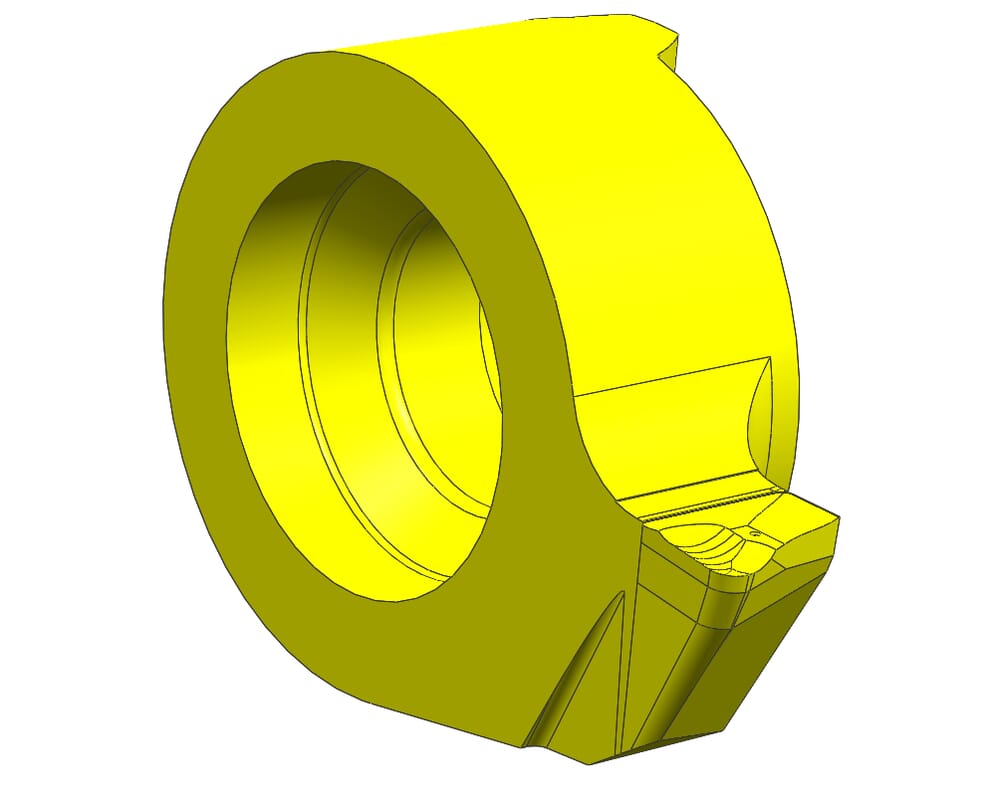

HORN Insert RS116.1897.R4 TH35 for Turning
Please note:Technical instructions
Top radius (r)
0.4
mm
Head size (a)
15.2
mm
eclass-shortcut
21-18-20-11
ISO_SSC
HORN116110$84R$$$$$
DIN_SSC
HORN-11611084R
Katalog_SSC
116110R
Setting range radial (f)
9.7
mm
Tooth diameter, head diameter (d)
11
mm
Cutting insert height, Cutting insert thickness (s)
5.3
mm
Smallest bore diameter (Dmin)
15.5
mm
| Downloads | |
|---|---|
| RS1161897R4_20230116_132617928.STP | Download |
| RS1161897R4_20210629_025528785.DXF | Download |
| Download all files | |
