RS11P.0150.1.D1 EG55
Insert
Part number RS11P01501D1EG55

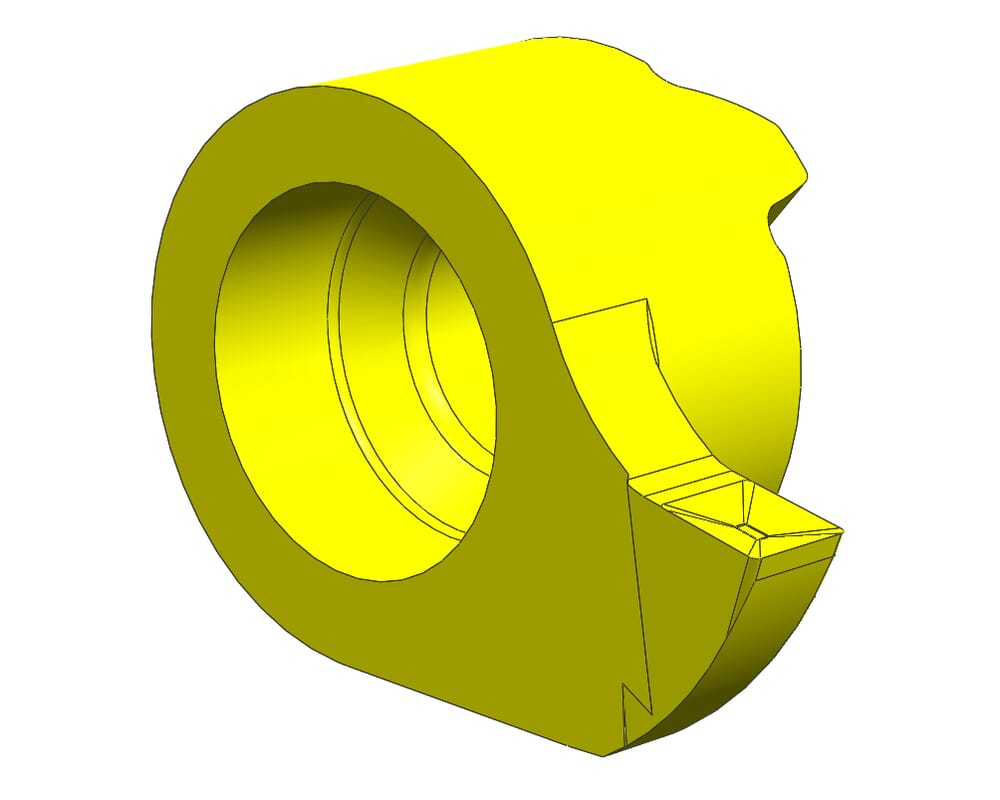

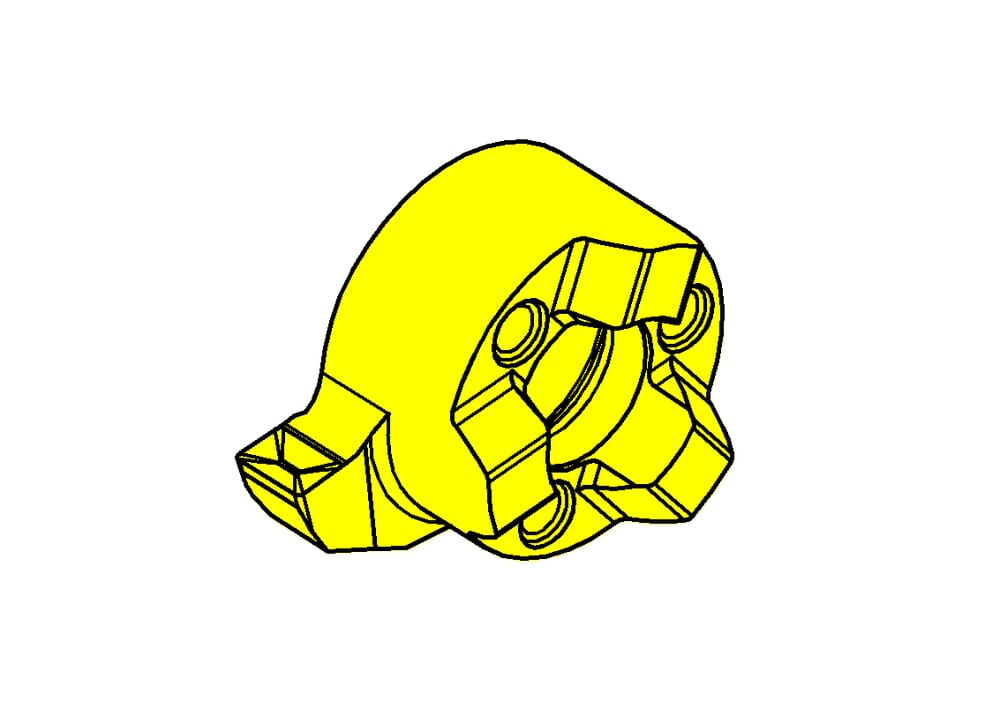

HORN Insert RS11P.0150.1.D1 EG55 for Turning
Please note:Technical instructions
ISO_SSC
HORN11P070$84R$$$$$

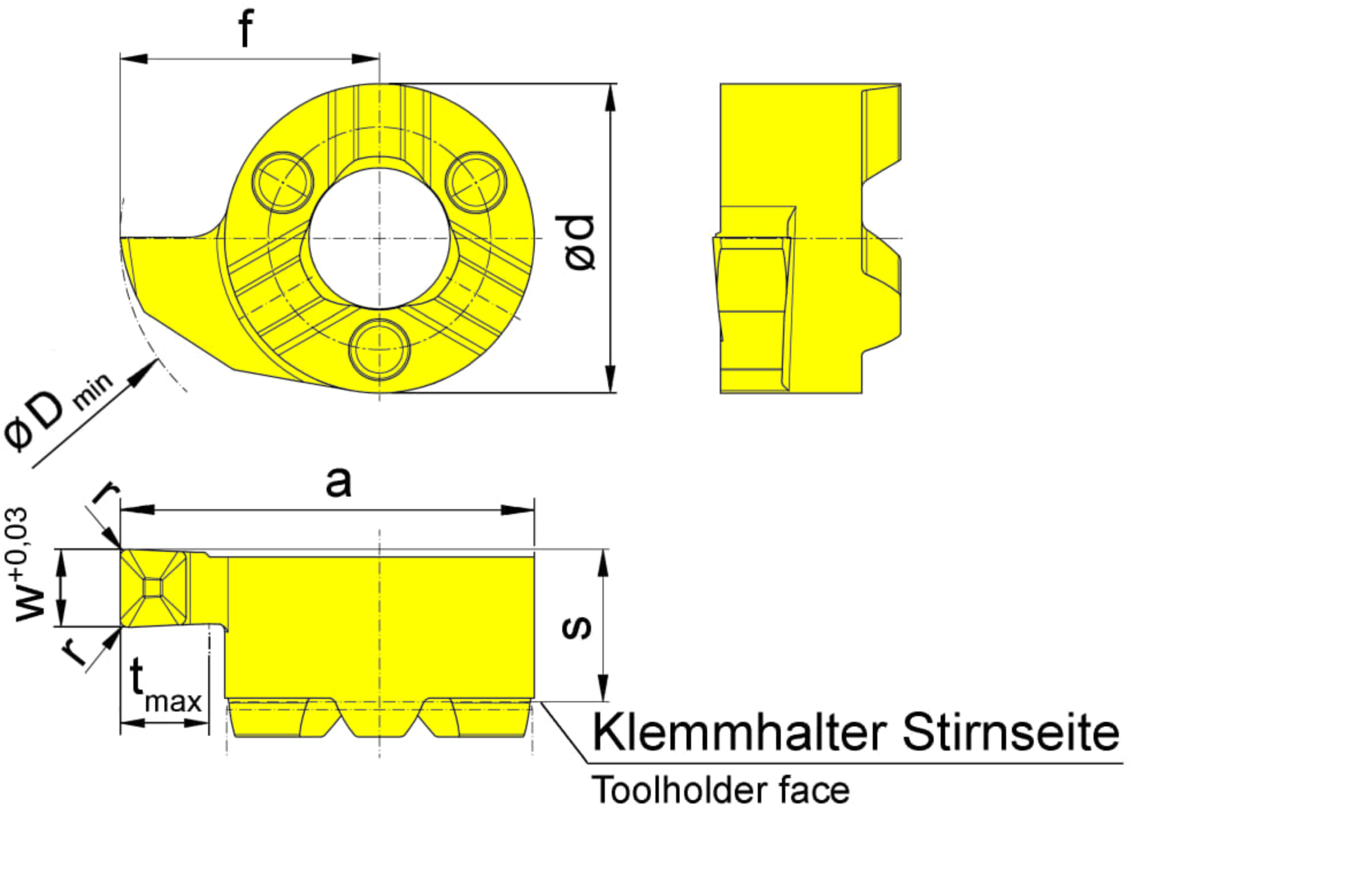

Smallest bore diameter (Dmin)
10.5
mm
Cutting insert height, Cutting insert thickness (s)
4.2
mm
Corner radius (r)
0.1
mm
Tooth diameter, head diameter (d)
7
mm
Setting range radial (f)
6.5
mm
Width of groove (w)
1.5
mm
Katalog_SSC
11P070R
DIN_SSC
HORN-11P07084R
eclass-shortcut
21-18-20-11
Maximum depth of groove (tmax)
2.5
mm
Head size (a)
10
mm
| Downloads | |
|---|---|
| RS11P01501D1_20230116_110729118.STP | Download |
| RS11P01501D1_20210629_024130392.DXF | Download |
| Download all files | |
