RS11P.0250.2.D2 TH35

Insert

Part number RS11P02502D2TH35

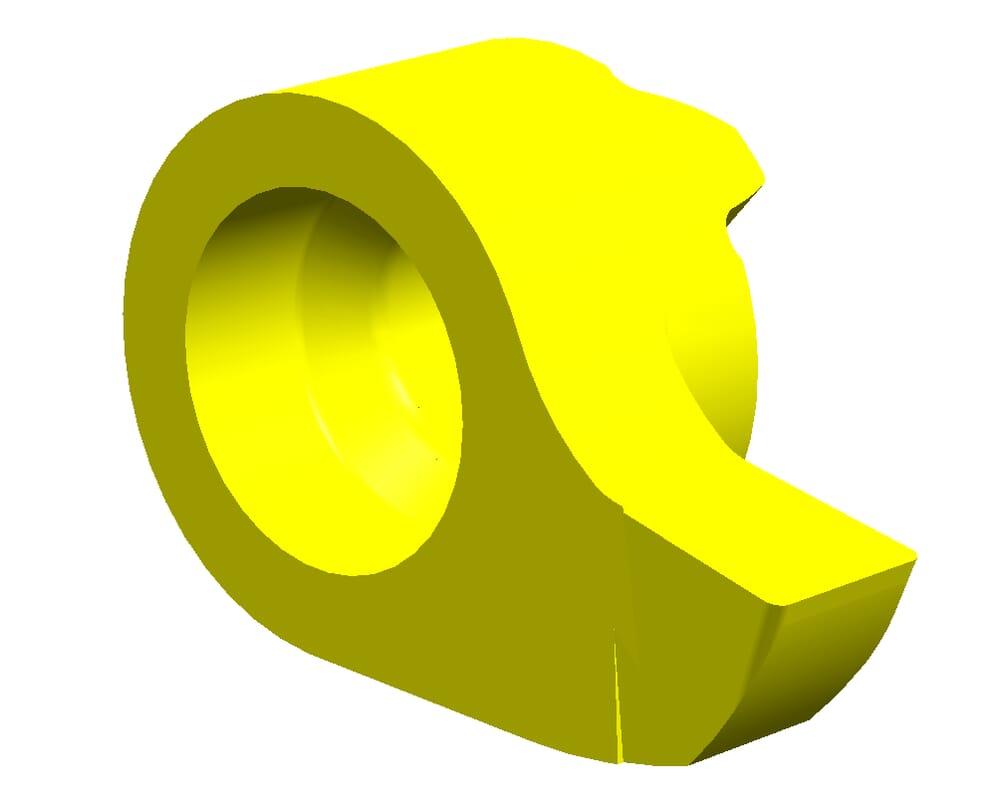

HORN Insert RS11P.0250.2.D2 TH35 for Turning

ISO_SSC

HORN11P070$84R$$$$$

Smallest bore diameter (Dmin)

11.5 mm

Cutting insert height, Cutting insert thickness (s)

4.2 mm

Corner radius (r)

0.2 mm

Tooth diameter, head diameter (d)

7 mm

Setting range radial (f)

7.5 mm

Width of groove (w)

2.5 mm

Katalog_SSC

11P070R

DIN_SSC

HORN-11P07084R

eclass-shortcut

21-18-20-11

Maximum depth of groove (tmax)

3.5 mm

Head size (a)

11 mm
