RS11P.1859.R2 TH35
Insert
Part number RS11P1859R2TH35

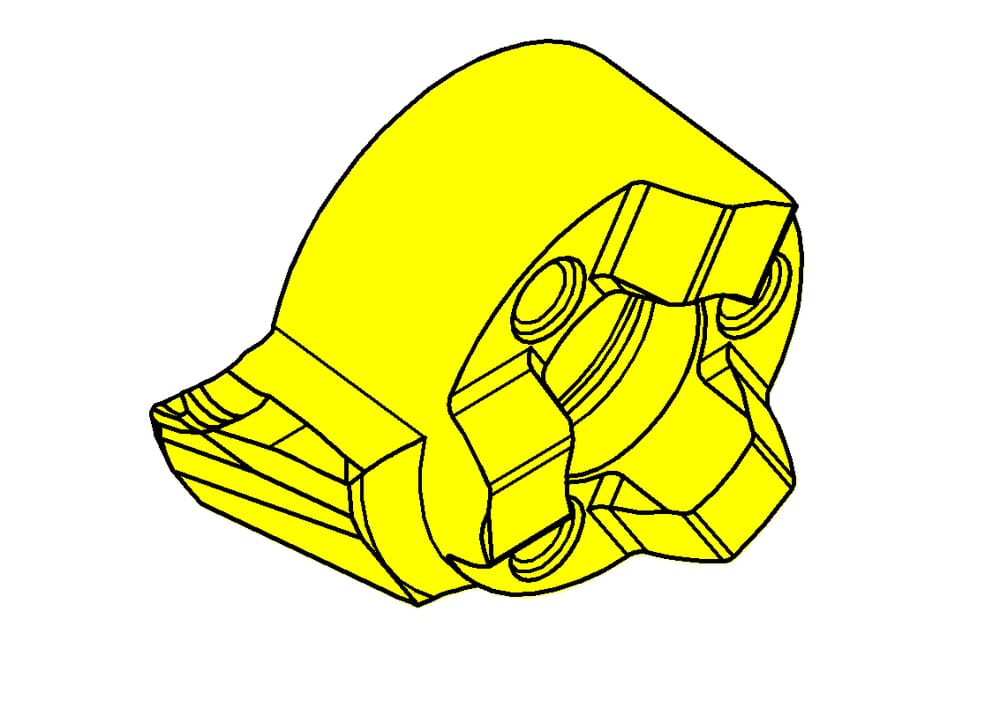

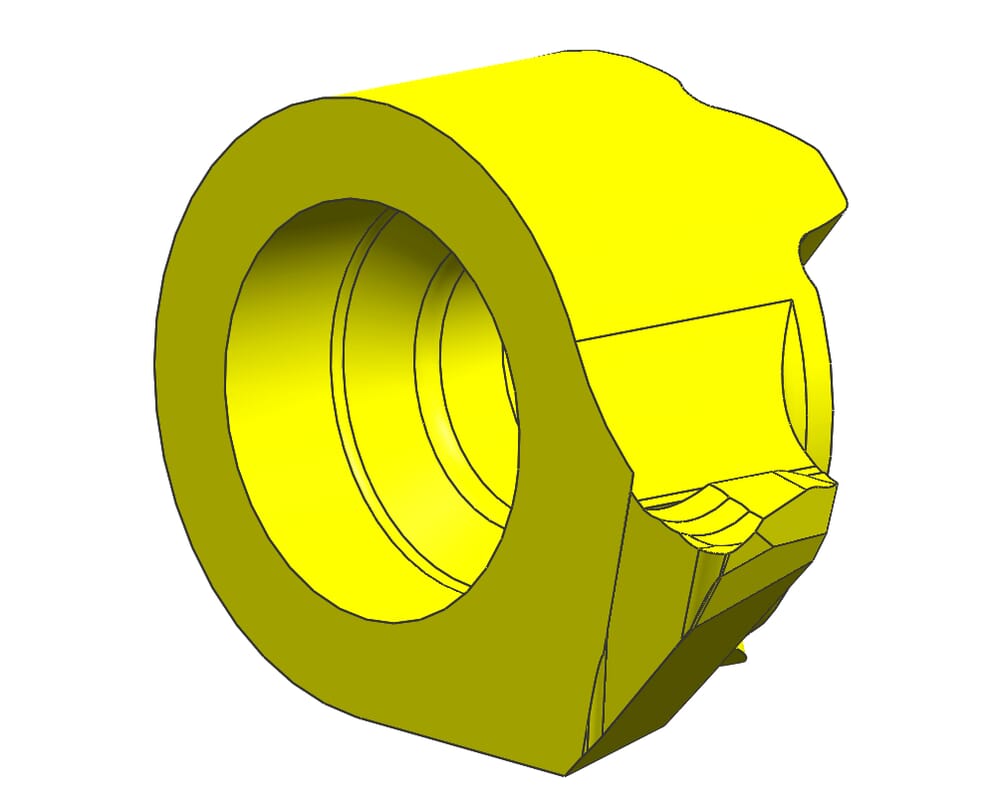

HORN Insert RS11P.1859.R2 TH35 for Turning
Please note:Technical instructions

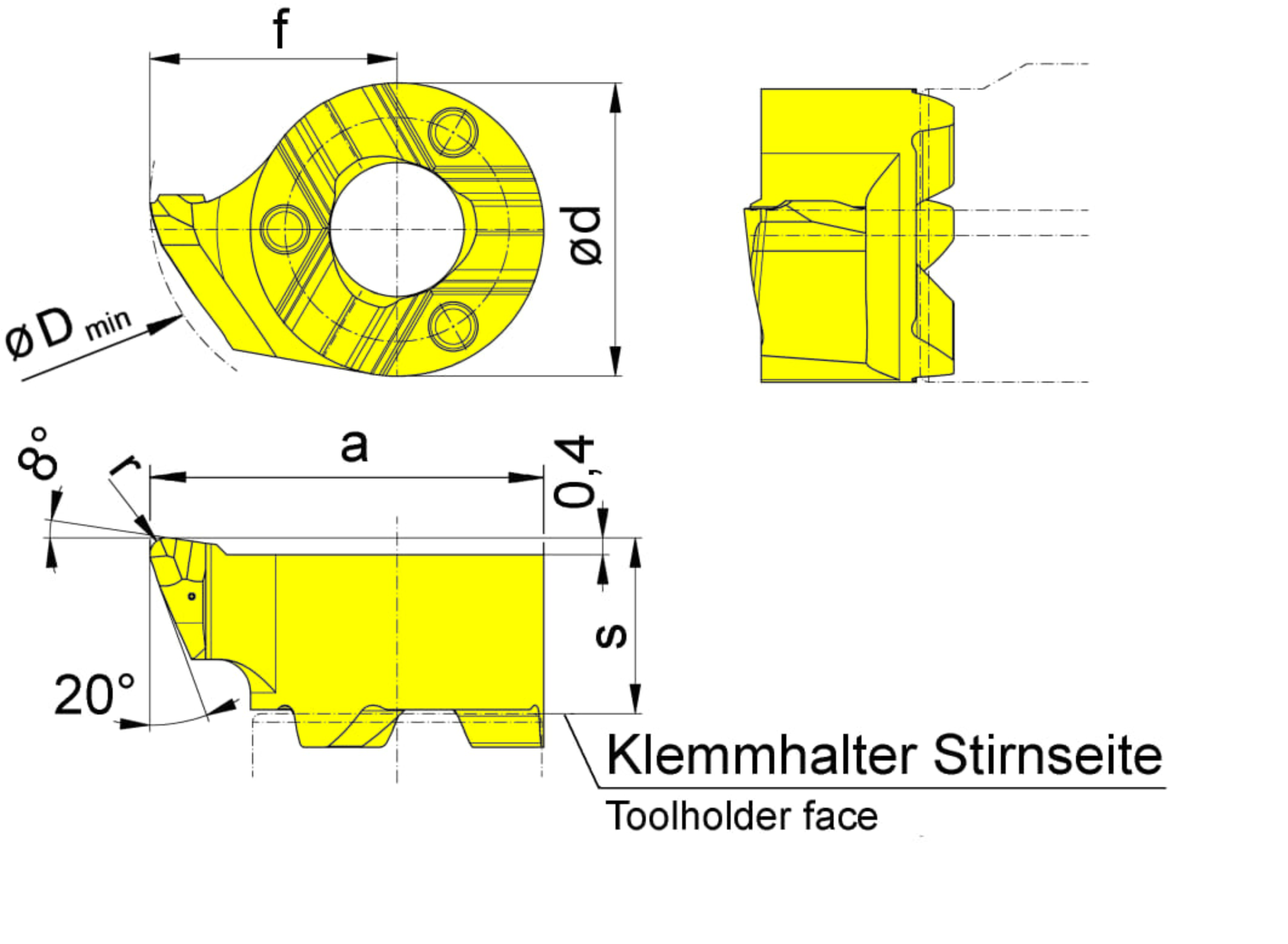

Top radius (r)
0.2
mm
Head size (a)
9.4
mm
eclass-shortcut
21-18-20-11
ISO_SSC
HORN11P070$84R$$$$$
DIN_SSC
HORN-11P07084R
Katalog_SSC
11P070R
Setting range radial (f)
5.9
mm
Tooth diameter, head diameter (d)
7
mm
Cutting insert height, Cutting insert thickness (s)
4.2
mm
Smallest bore diameter (Dmin)
9.8
mm
| Downloads | |
|---|---|
| RS11P1859R2_20230116_133451165.STP | Download |
| RS11P1859R2_20210629_024309472.DXF | Download |
| Download all files | |
