RS18P.0200.1.D2 EG55
Insert
Part number RS18P02001D2EG55

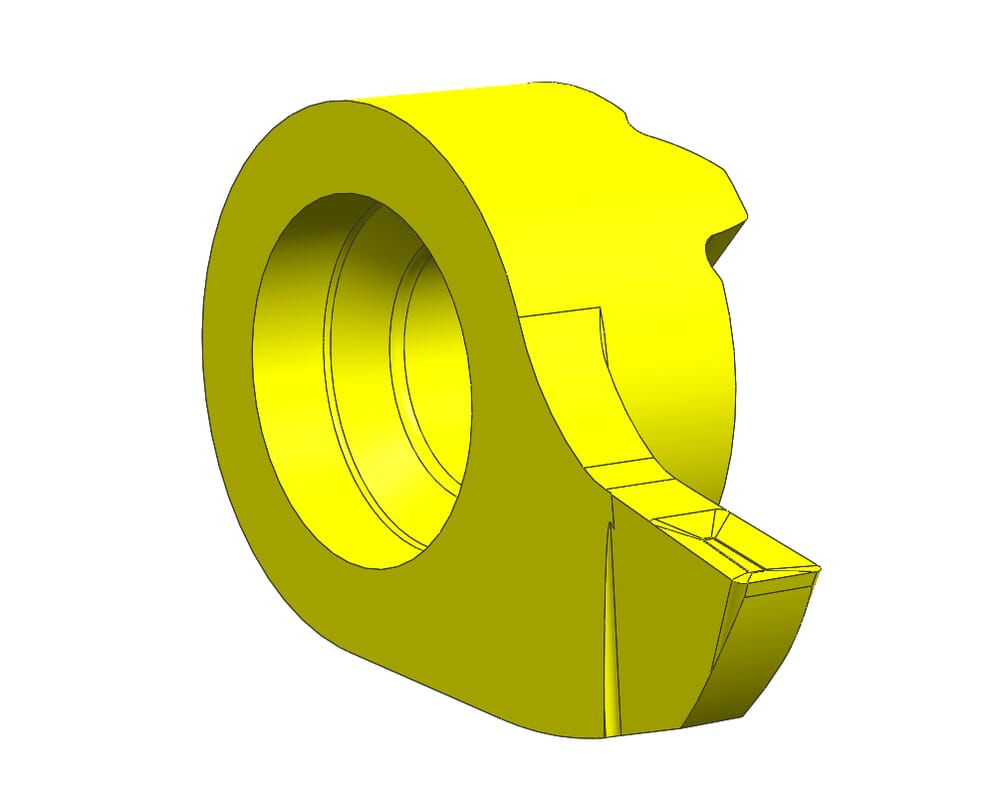

HORN Insert RS18P.0200.1.D2 EG55 for Turning
Please note:Technical instructions
ISO_SSC
HORN18P110$84L$$$$$
Smallest bore diameter (Dmin)
18
mm
Cutting insert height, Cutting insert thickness (s)
5.3
mm
Corner radius (r)
0.2
mm
Tooth diameter, head diameter (d)
11
mm
Setting range radial (f)
12
mm
Width of groove (w)
2
mm
Katalog_SSC
18P110L
DIN_SSC
HORN-18P11084L
eclass-shortcut
21-18-20-11
Maximum depth of groove (tmax)
6
mm
Head size (a)
17.5
mm
| Downloads | |
|---|---|
| RS18P02001D2_20210630_185822734.STP | Download |
| RS18P02001D2_20210629_024347661.DXF | Download |
| Download all files | |
