RS18P.0200.2.D2 TH35
Insert
Part number RS18P02002D2TH35

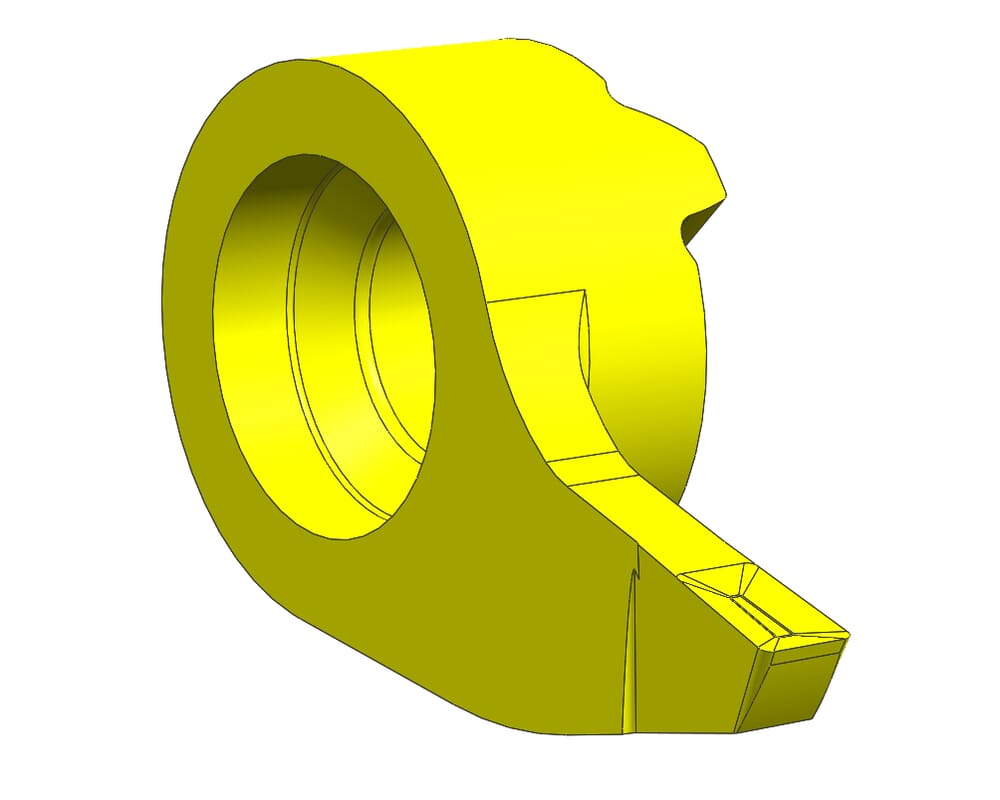

HORN Insert RS18P.0200.2.D2 TH35 for Turning
Please note:Technical instructions
ISO_SSC
HORN18P110$84R$$$$$
Smallest bore diameter (Dmin)
20
mm
Cutting insert height, Cutting insert thickness (s)
5.3
mm
Corner radius (r)
0.2
mm
Tooth diameter, head diameter (d)
11
mm
Setting range radial (f)
14
mm
Width of groove (w)
2
mm
Katalog_SSC
18P110R
DIN_SSC
HORN-18P11084R
eclass-shortcut
21-18-20-11
Maximum depth of groove (tmax)
8
mm
Head size (a)
19.5
mm
| Downloads | |
|---|---|
| RS18P02002D2_20230116_110950715.STP | Download |
| RS18P02002D2_20210629_024413833.DXF | Download |
| Download all files | |
