RS274.0035.04.20 TH35
Insert
Part number RS27400350420TH35

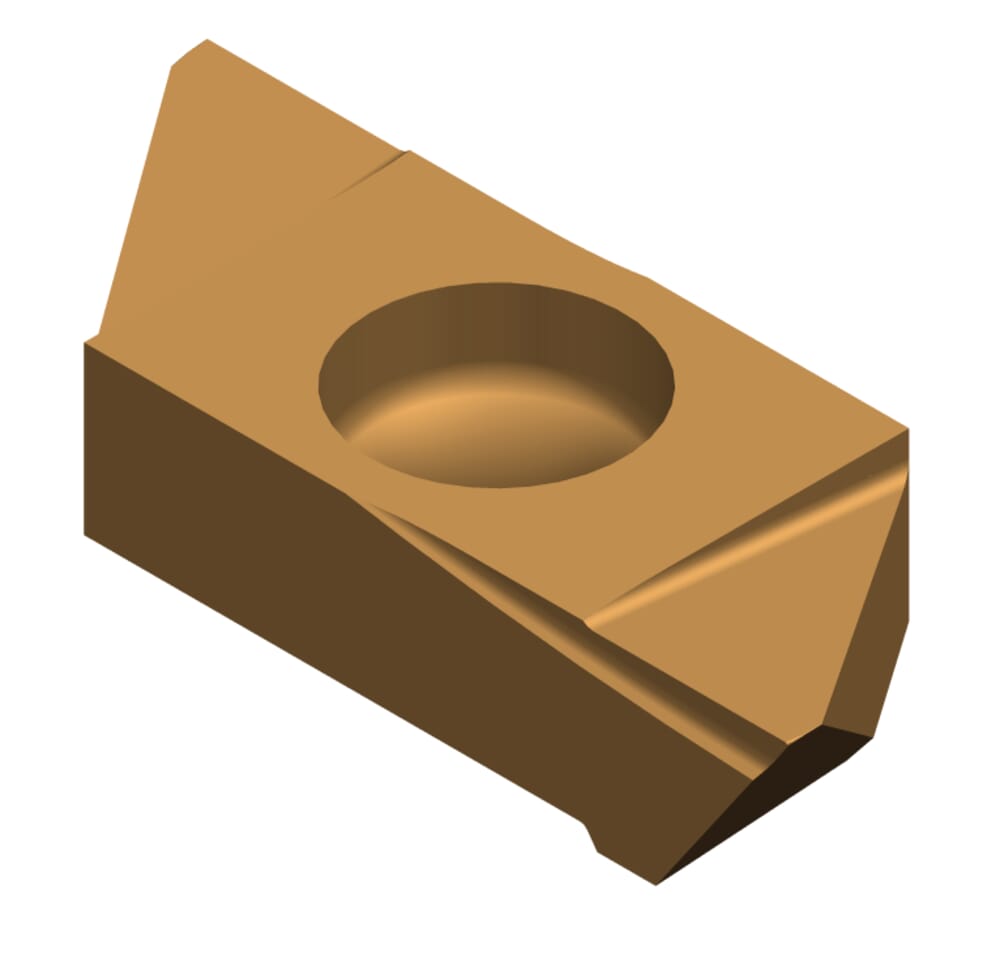

HORN Insert RS274.0035.04.20 TH35 for Turning
Please note:Technical instructions
eclass-shortcut
21-18-20-03
Maximum stepover (ap) (ap)
4
mm
Corner radius (r)
0.05
mm
Plating seat size (Größe)
4
Katalog_SSC
274040R
DIN_SSC
HORN-274040000R
ISO_SSC
HORN274040000R$$$$$
Wiper angle (α2)
0
°
Cutting angle (γ)
5
°
free-angle
35
°
Parting-off chamfer (α1)
35
°
Cancellation (a)
0.1
mm
| Downloads | |
|---|---|
| RS27400350420_20230116_081215141.STP | Download |
| RS27400350420_20211124_203103825.DXF | Download |
| Download all files | |
