RS274.0055.04.20 IG35
Insert
Part number RS27400550420IG35

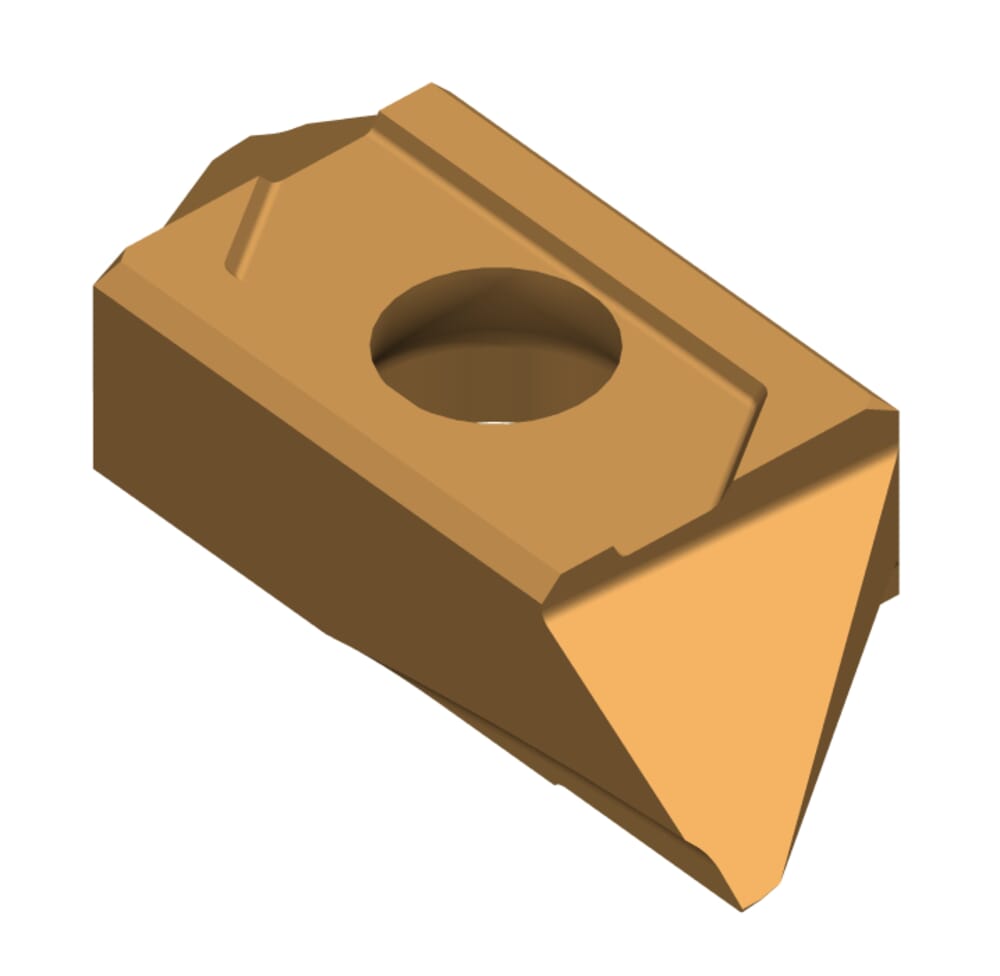

HORN Insert RS274.0055.04.20 IG35 for Turning
Please note:Technical instructions
eclass-shortcut
21-18-20-03
Maximum stepover (ap) (ap)
4
mm
Corner radius (r)
0.05
mm
Plating seat size (Größe)
4
Katalog_SSC
274040R
DIN_SSC
HORN-274040000R
ISO_SSC
HORN274040000R$$$$$
Wiper angle (α2)
0
°
Cutting angle (γ)
5
°
Parting-off chamfer (α1)
55
°
Cancellation (a)
0.1
mm
| Downloads | |
|---|---|
| RS27400550420_20240116_171807205.STP | Download |
| RS27400550420_20211124_200815577.DXF | Download |
| Download all files | |
