RS274.0080.03.10 IG35
Insert
Part number RS27400800310IG35

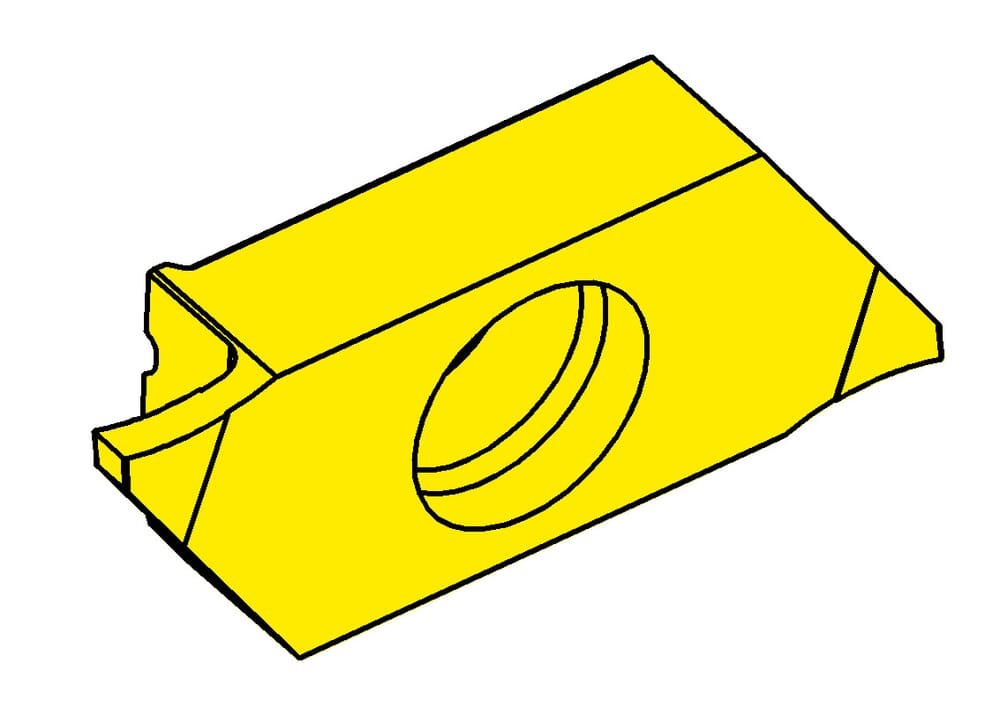

HORN Insert RS274.0080.03.10 IG35 for Turning
Please note:Technical instructions
Maximum depth of groove (tmax)
3 mm
eclass-shortcut
21-18-20-03
ISO_SSC
HORN274040000R$$$$$
Katalog_SSC
274040R
Plating seat size (Größe)
4
Width of groove (w)
0.8 mm
Corner radius (r)
0.05 mm
| Downloads | |
|---|---|
| RS274_0080_03_10_IG35-DXF.DXF | Download |
| RS274_0080_03_10_IG35-STP.STP | Download |
| RS274_0080_03_10_IG35-ISO.XML | Download |
| RS274_0080_03_10_IG35-DIN.XML | Download |
| Download all files | |
