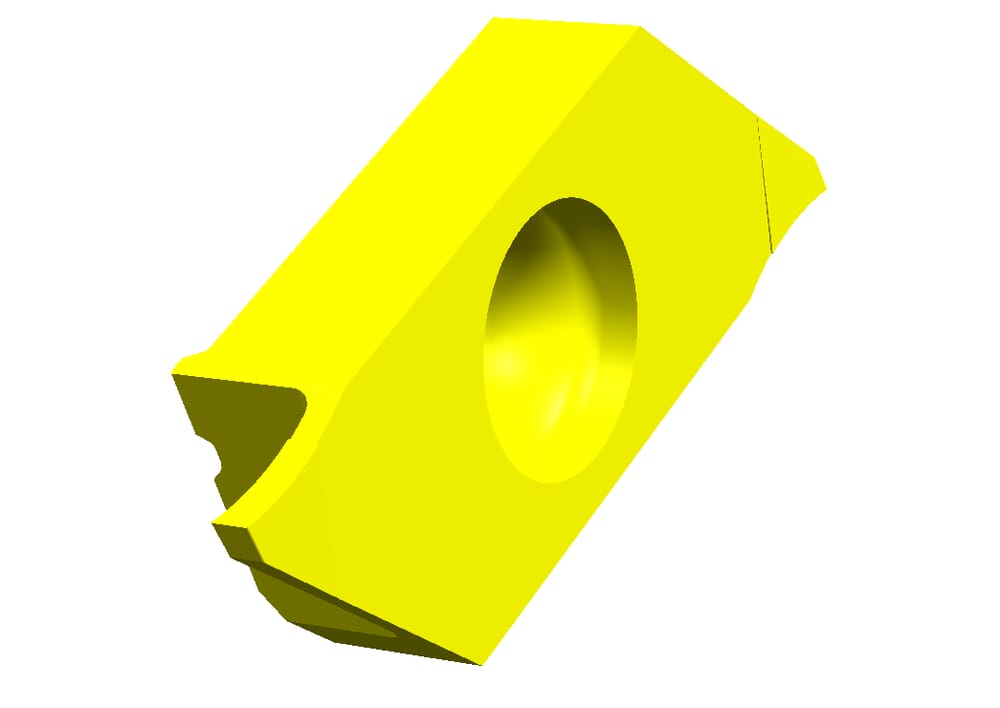

RS274.0080.03.10 TH35
Insert
Part number RS27400800310TH35
HORN Insert RS274.0080.03.10 TH35 for Turning
Please note:Technical instructions
Maximum depth of groove (tmax)
3
mm
eclass-shortcut
21-18-20-03
ISO_SSC
HORN274040000R$$$$$
DIN_SSC
HORN-274040000R
Katalog_SSC
274040R
Plating seat size (Größe)
4
Width of groove (w)
0.8
mm
Corner radius (r)
0.05
mm
| Downloads | |
|---|---|
| RS27400800310_20230116_124238699.STP | Download |
| RS27400800310_20210629_030515704.DXF | Download |
| Download all files | |
