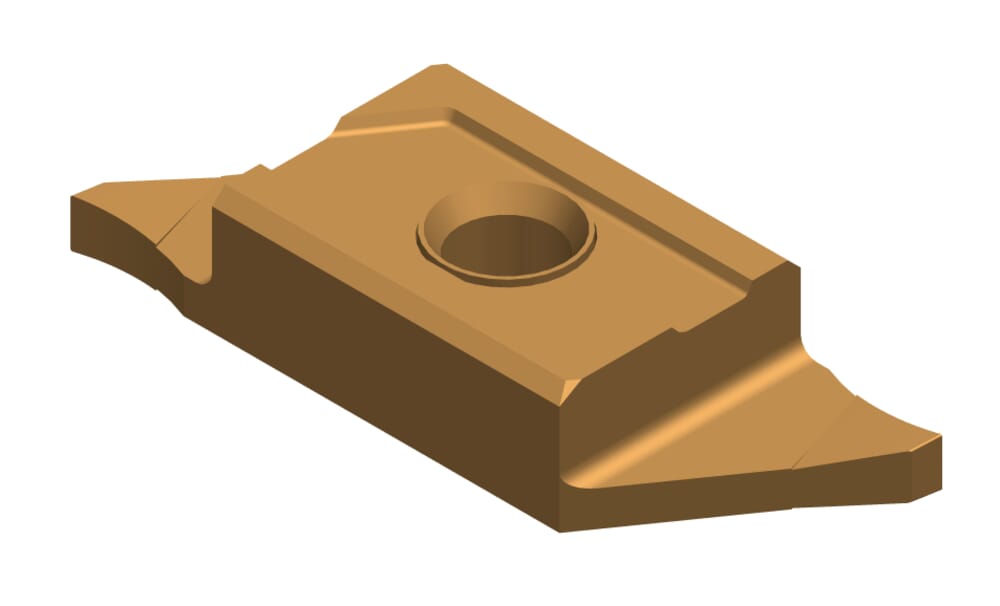

RS274.0150.04.10.E TH35
Insert
Part number RS27401500410ETH35
HORN Insert RS274.0150.04.10.E TH35 for Turning
Please note:Technical instructions
Maximum depth of groove (tmax)
4
mm
eclass-shortcut
21-18-20-03
ISO_SSC
HORN274140000R$$$$$
DIN_SSC
HORN-274140000R
Katalog_SSC
274140R
Plating seat size (Größe)
4
Width of groove (w)
1.5
mm
Corner radius (r)
0.05
mm
| Downloads | |
|---|---|
| RS27401500410_20210630_154313421.STP | Download |
| RS27401500410E_20210629_030657909.DXF | Download |
| Download all files | |
