RS274.0150.04.20 IG35
Insert
Part number RS27401500420IG35

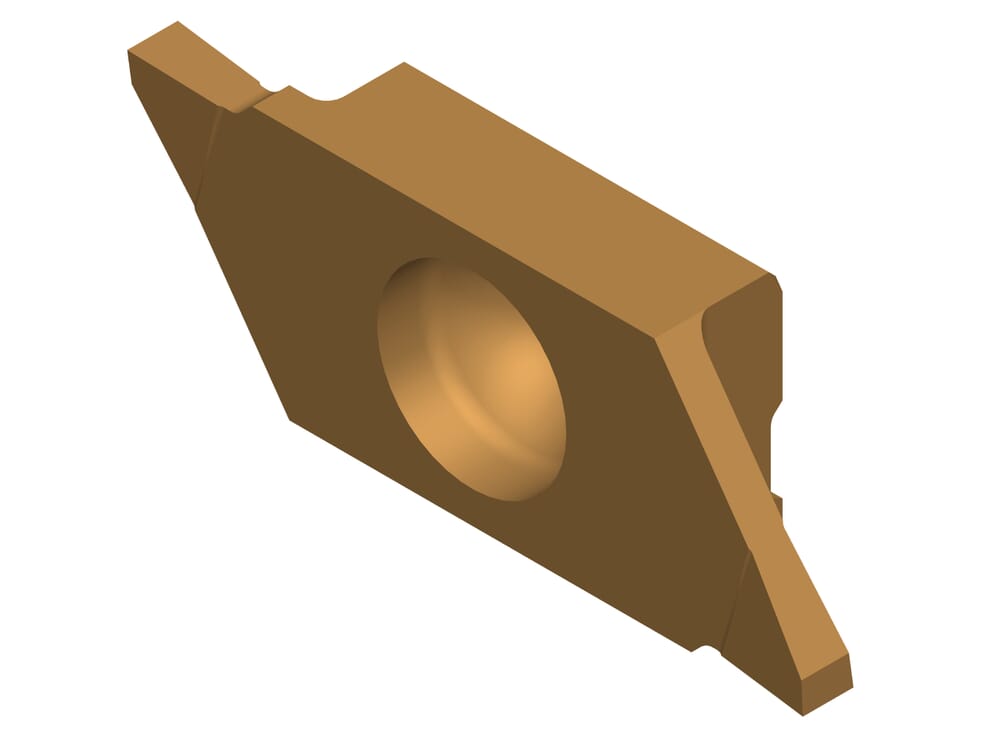

HORN Insert RS274.0150.04.20 IG35 for Turning
Please note:Technical instructions
Maximum depth of groove (tmax)
4
mm
Cutting angle (γ)
5
°
eclass-shortcut
21-18-20-03
ISO_SSC
HORN274040000R$$$$$
DIN_SSC
HORN-274040000R
Katalog_SSC
274040R
Plating seat size (Größe)
4
Width of groove (w)
1.5
mm
| Downloads | |
|---|---|
| RS27401500420_20240116_172650062.STP | Download |
| RS27401500420_20211124_203355785.DXF | Download |
| Download all files | |
