RS274.0160.03.SF MG12
insert
Part number RS274016003SFMG12

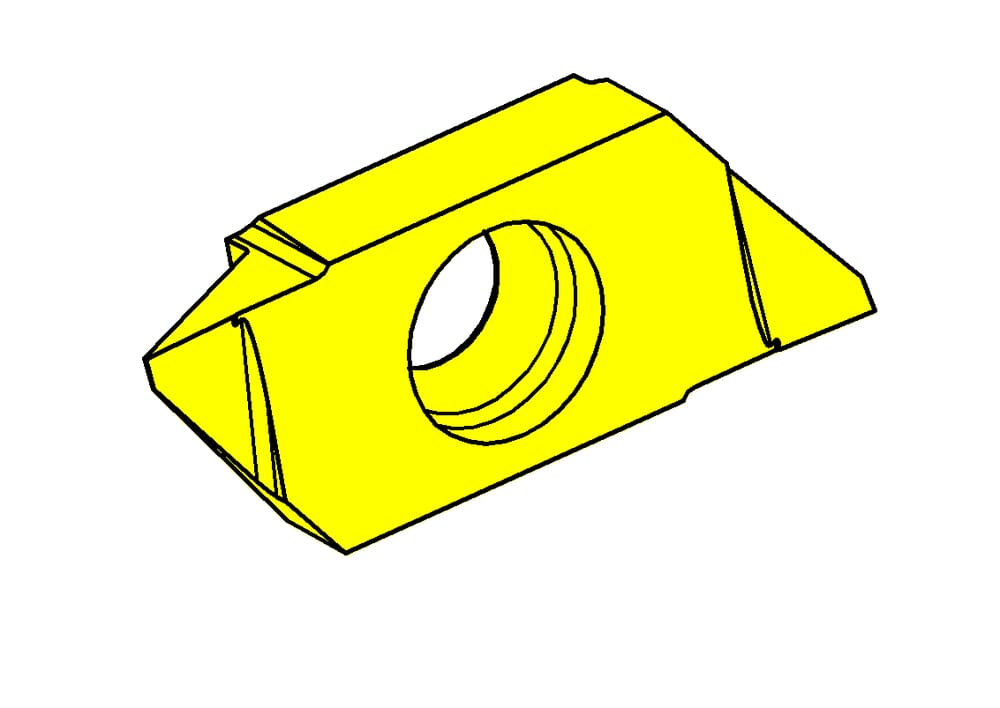

HORN insert RS274.0160.03.SF MG12 for Turning
Please note:Technical instructions

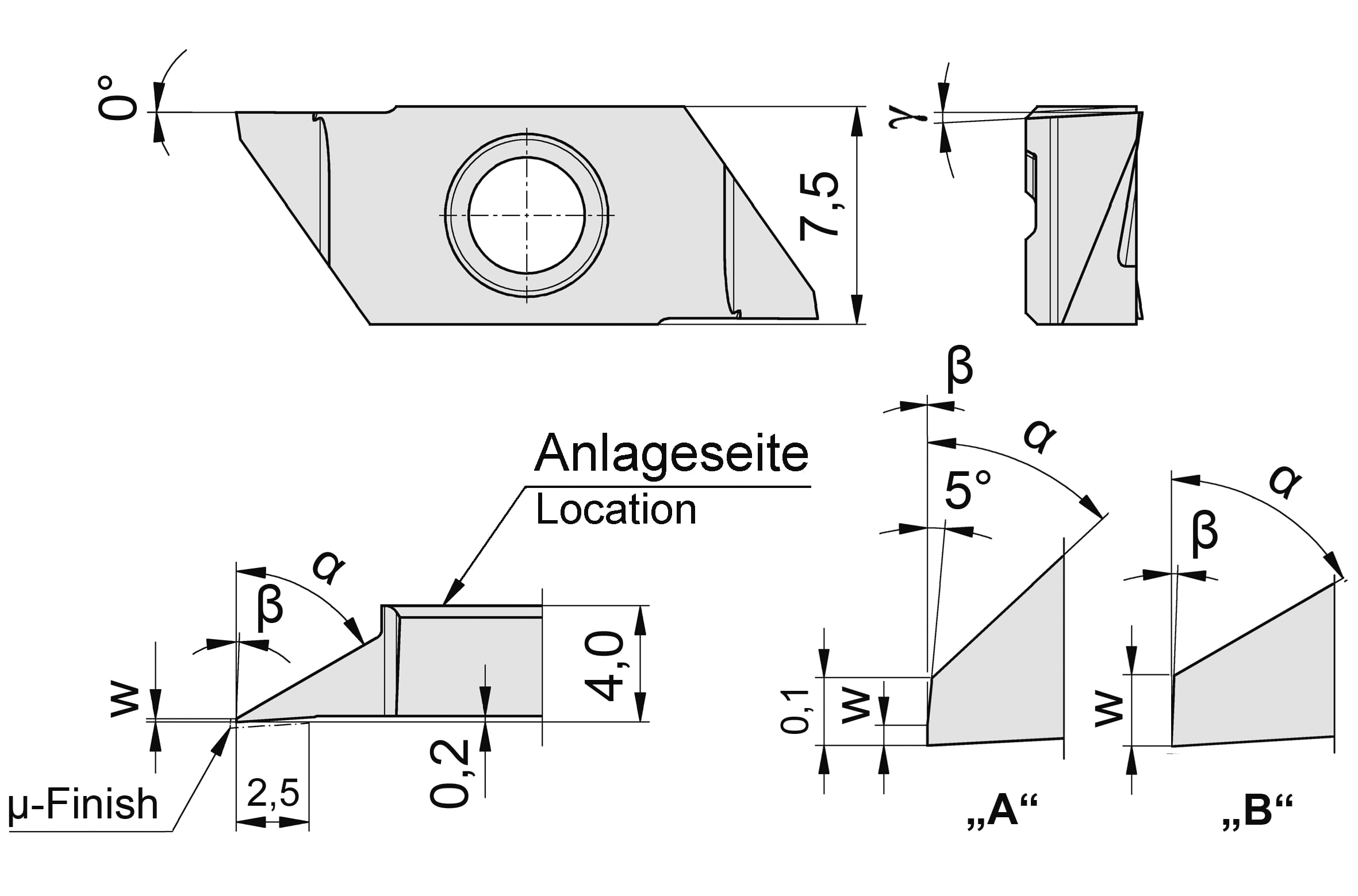

Free angle (α)
60
°
Cutting angle (γ)
3
°
eclass-shortcut
21-18-20-03
Wiper angle (β)
2
°
ISO_SSC
HORN274040000R$$$$$
DIN_SSC
HORN-274040000R
Katalog_SSC
274040R
Plating seat size (Größe)
4
Width of groove (w)
0.105
mm
Form (Form)
B
| Downloads | |
|---|---|
| RS274016003SF_20240116_172829361.STP | Download |
| RS274016003SF.DXF | Download |
| Download all files | |
