RS274.0200.04.20.E TH35
insert
Part number RS27402000420ETH35

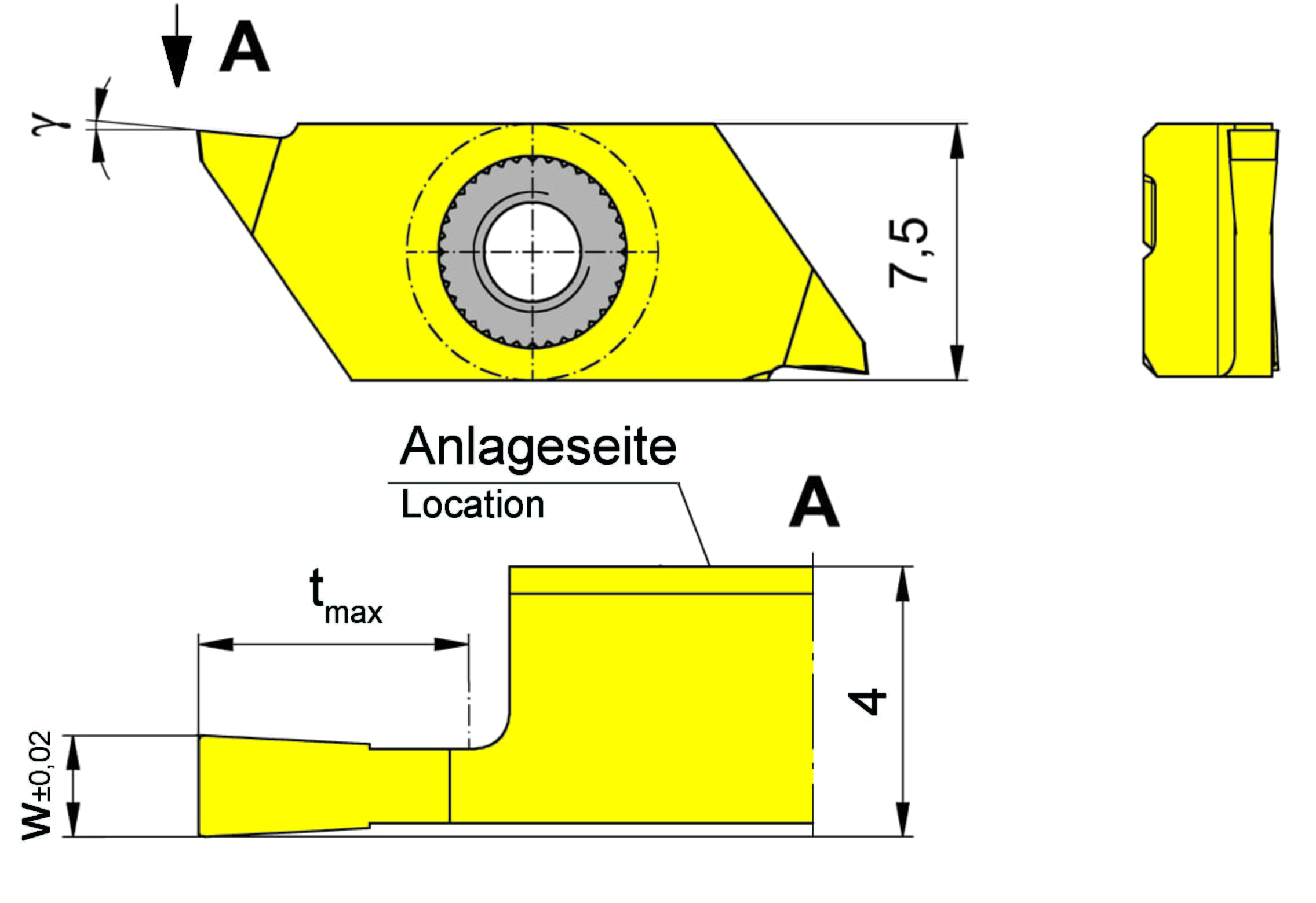

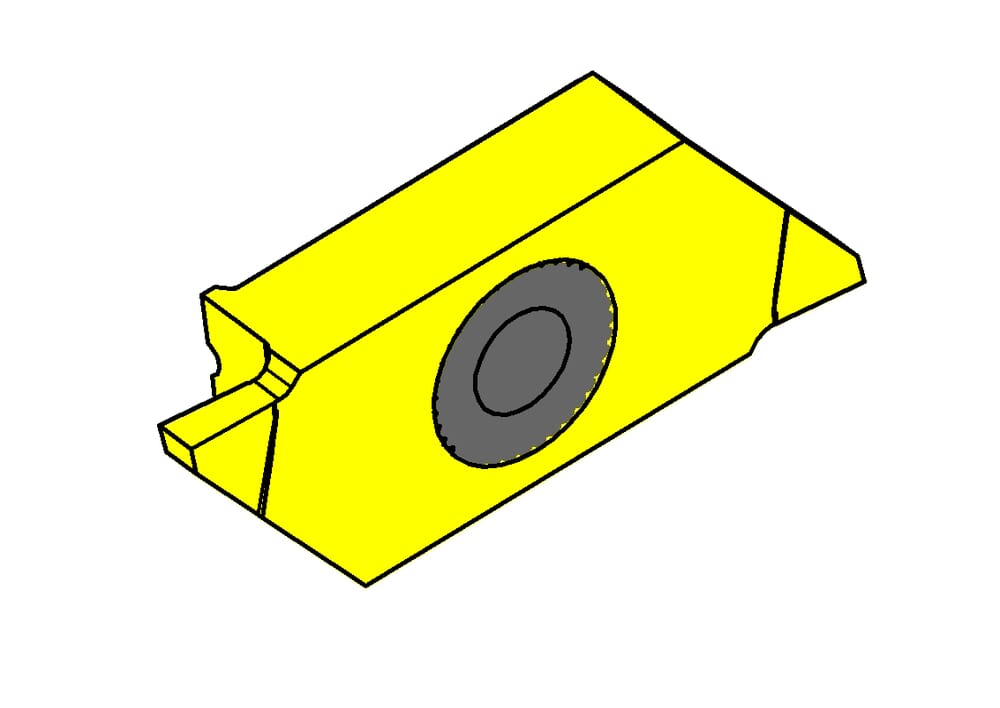

HORN insert RS274.0200.04.20.E TH35 for Turning
Please note:Technical instructions
Maximum depth of groove (tmax)
4
mm
Cutting angle (γ)
5
°
eclass-shortcut
21-18-20-03
ISO_SSC
HORN274140000R$$$$$
DIN_SSC
HORN-274140000R
Katalog_SSC
274140R
Plating seat size (Größe)
4
Width of groove (w)
2
mm
| Downloads | |
|---|---|
| RS27402000420_20240116_172900987.STP | Download |
| RS27402000420_20211124_201249842.DXF | Download |
| Download all files | |
