RS274.0204.01 IG35
Insert
Part number RS274020401IG35

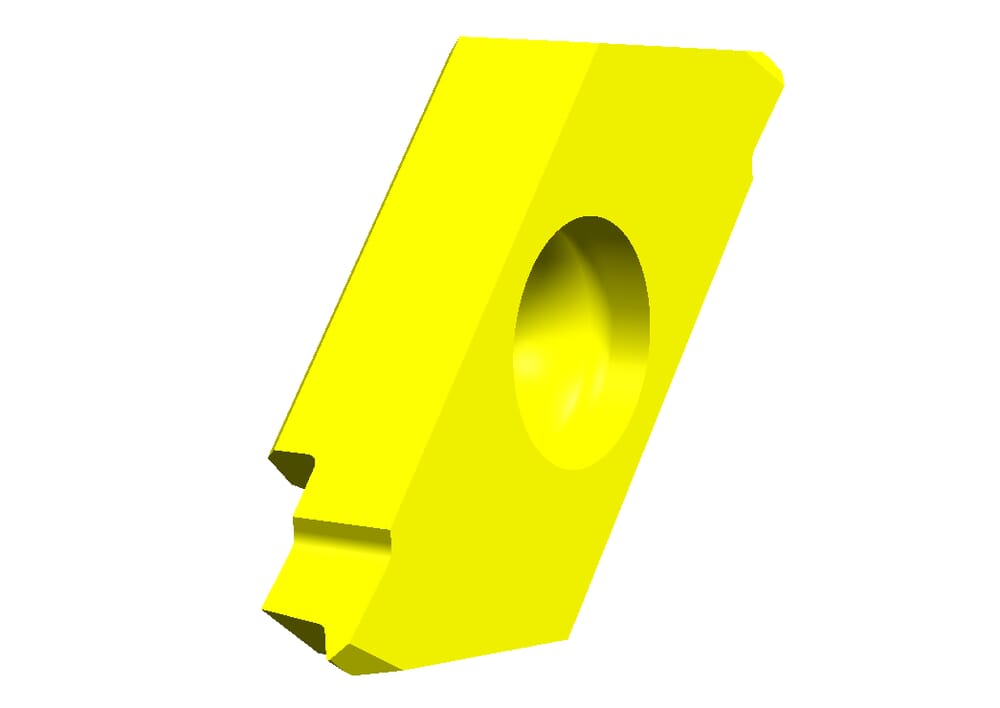

HORN Insert RS274.0204.01 IG35 for Gewinden
Please note:Technical instructions
Top radius (r)
0.06
mm
eclass-shortcut
21-18-20-03
ISO_SSC
HORN274040000R$$$$$
DIN_SSC
HORN-274040000R
Katalog_SSC
274040R
Plating seat size (Größe)
4
Setting length (E)
0.3
mm
Pitch (P)
0.4
mm
| Downloads | |
|---|---|
| RS274020401_20240116_173214820.STP | Download |
| RS274020401_20210629_030944491.DXF | Download |
| Download all files | |
