RS274.0247.04.SF ES1P
Insert
Part number RS274024704SFES1P

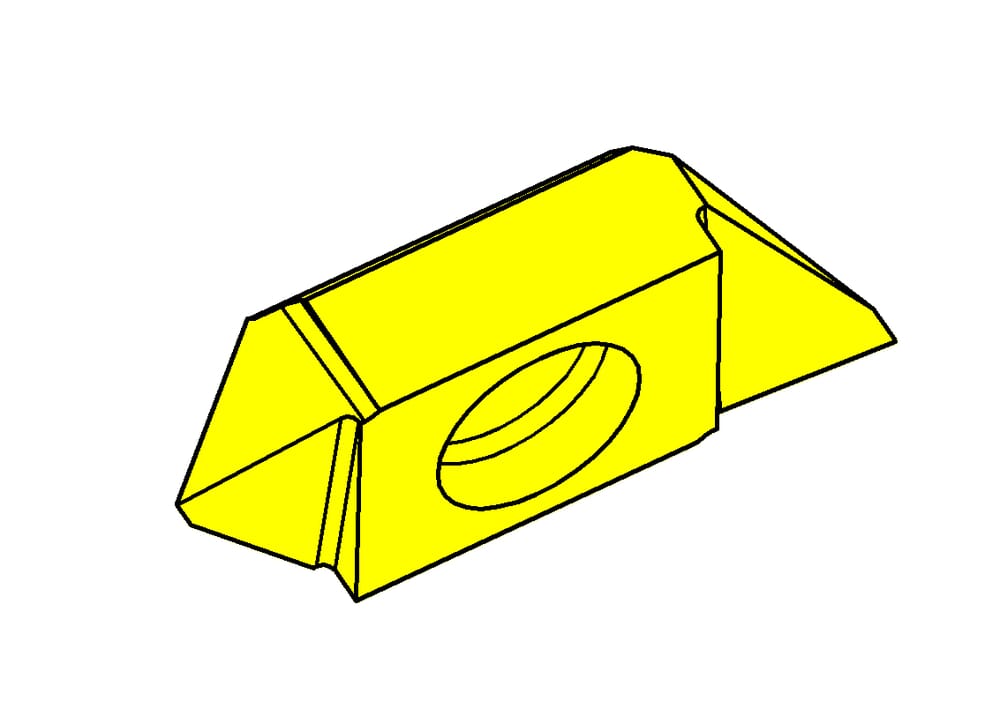

HORN Insert RS274.0247.04.SF ES1P for Turning
Please note:Technical instructions

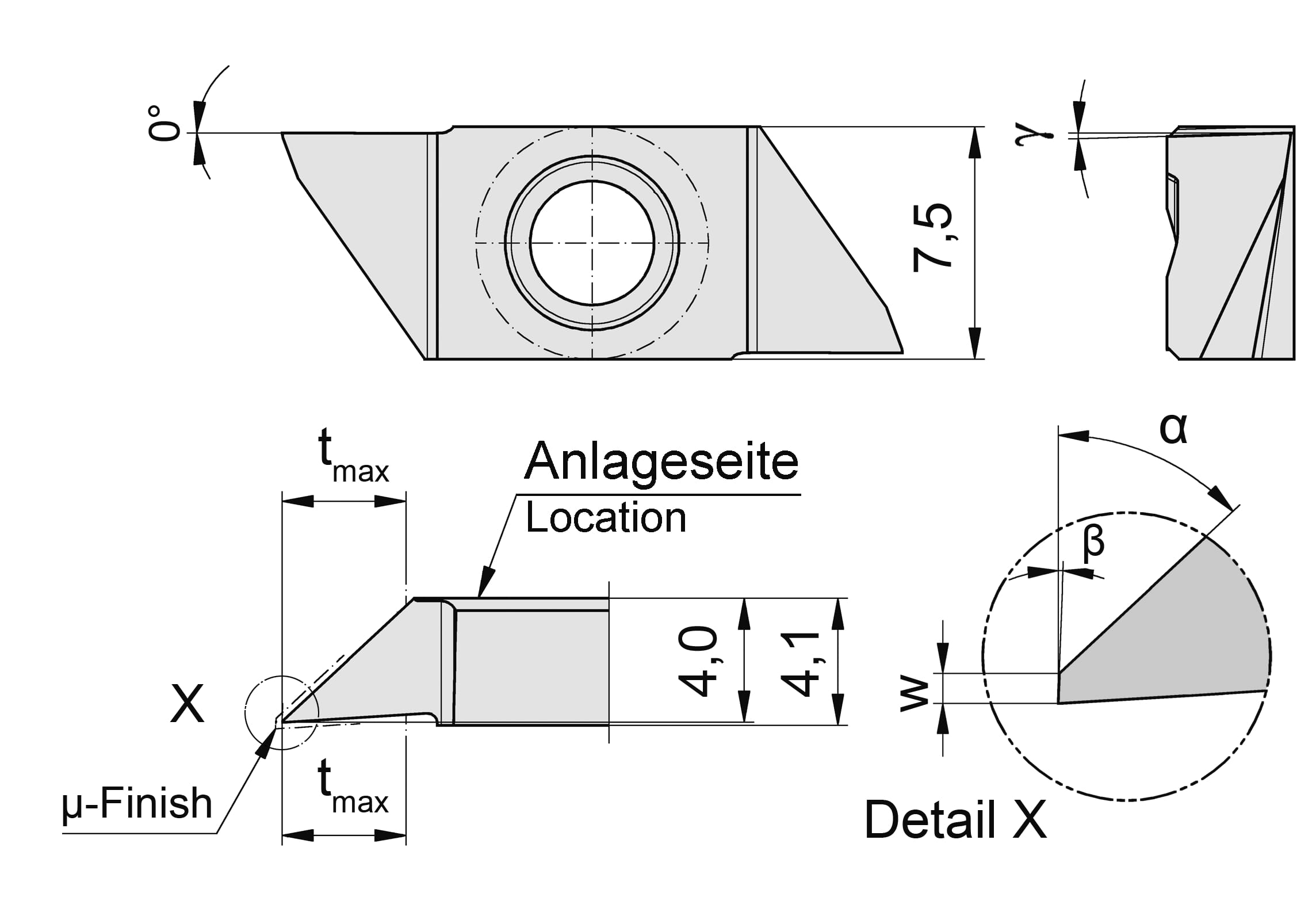

Free angle (α)
47
°
Maximum depth of groove (tmax)
4
mm
Cutting angle (γ)
1.5
°
eclass-shortcut
21-18-20-03
Wiper angle (β)
2
°
ISO_SSC
HORN274040000R$$$$$
DIN_SSC
HORN-274040000R
Katalog_SSC
274040R
Plating seat size (Größe)
4
Width of groove (w)
0.025
mm
| Downloads | |
|---|---|
| RS274024704SF.STP | Download |
| RS274024704SF_20211124_203653636.DXF | Download |
| Download all files | |
