RS274.0255.04.20 TH35
Insert
Part number RS27402550420TH35

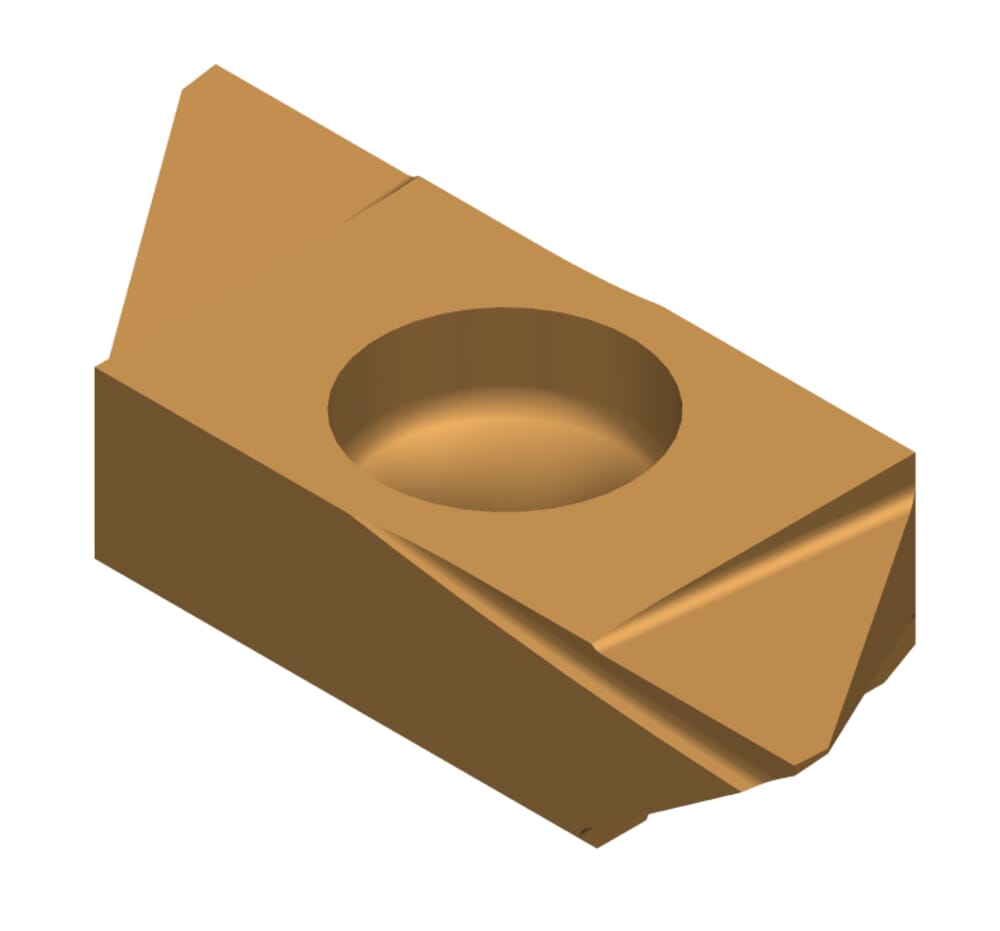

HORN Insert RS274.0255.04.20 TH35 for Turning
Please note:Technical instructions
eclass-shortcut
21-18-20-03
Maximum stepover (ap) (ap)
4
mm
Width of groove (w)
0.2
mm
Plating seat size (Größe)
4
Katalog_SSC
274040R
DIN_SSC
HORN-274040000R
ISO_SSC
HORN274040000R$$$$$
Wiper angle (α2)
0
°
Cutting angle (γ)
5
°
Parting-off chamfer (α1)
55
°
Cancellation (a)
0.1
mm
| Downloads | |
|---|---|
| RS27402550420_20240116_173520939.STP | Download |
| RS27402550420_20211124_203721450.DXF | Download |
| Download all files | |
