RS274.0460.04.10 TH35
Insert
Part number RS27404600410TH35

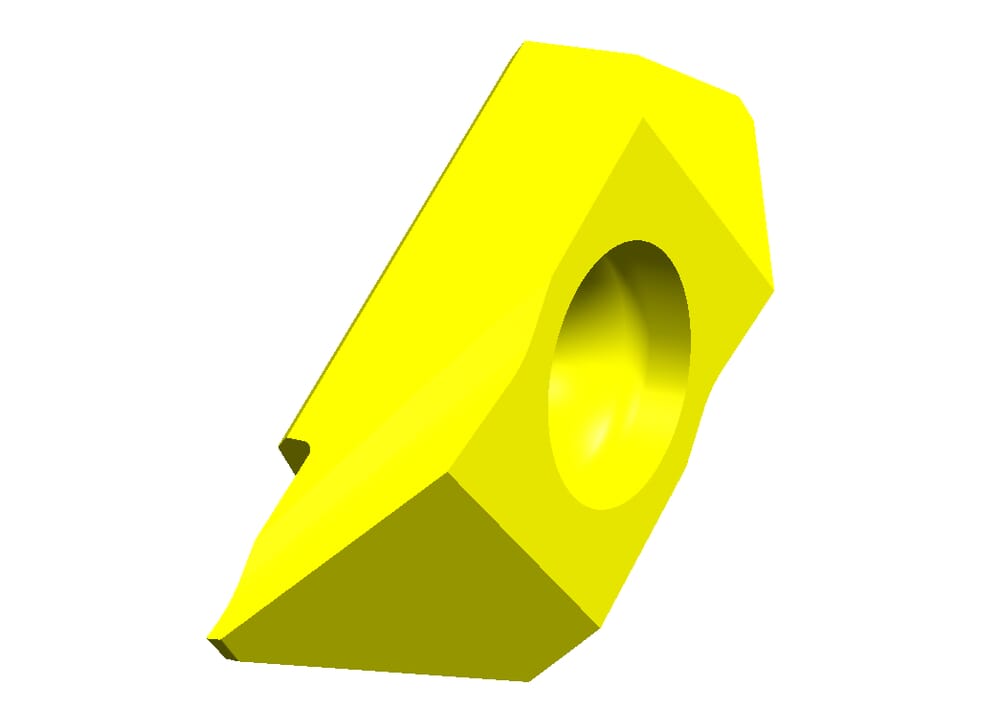

HORN Insert RS274.0460.04.10 TH35 for Turning
Please note:Technical instructions
Cancellation (a)
1
mm
Cutting angle (γ)
15
°
eclass-shortcut
21-18-20-03
ISO_SSC
HORN274040000R$$$$$
DIN_SSC
HORN-274040000R
Katalog_SSC
274040R
Plating seat size (Größe)
4
Width of groove (w)
0.4
mm
Corner radius (r)
0.05
mm
Maximum stepover (ap) (ap)
4
mm
| Downloads | |
|---|---|
| RS27404600410_20230116_090549291.STP | Download |
| RS27404600410_20210629_031238432.DXF | Download |
| Download all files | |
