RS274.0460.04.M0.E K10
insert
Part number RS274046004M0EK10

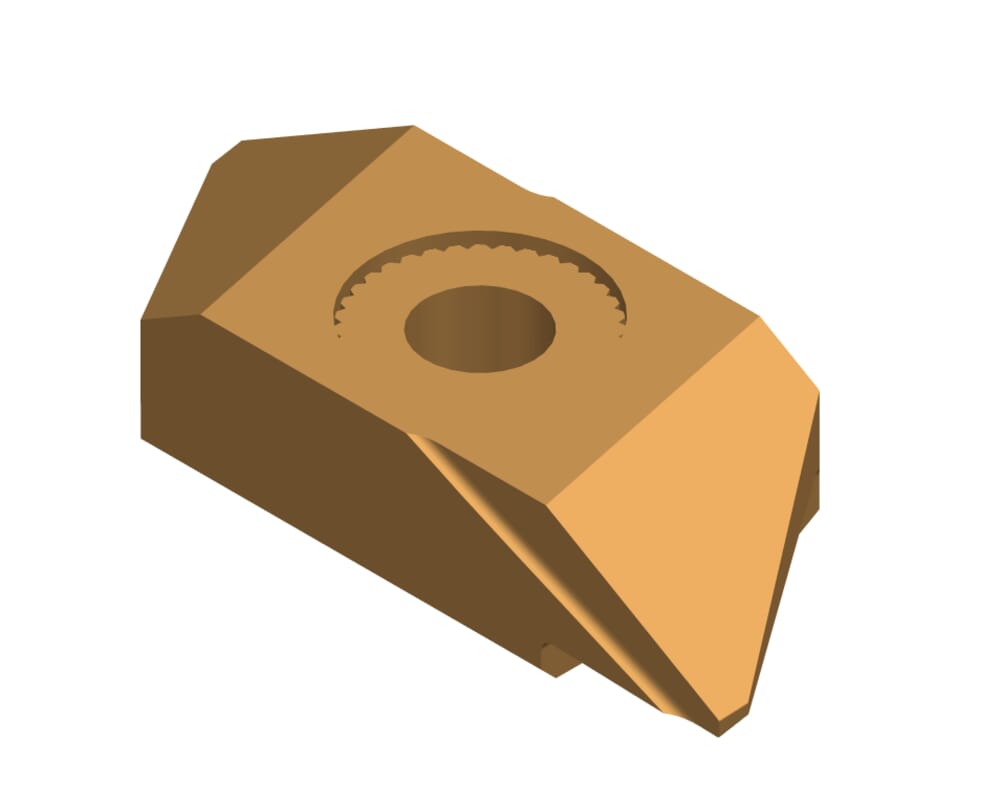

HORN insert RS274.0460.04.M0.E K10 for Turning
Please note:Technical instructions
Cancellation (a)
1
mm
Cutting angle (γ)
0
°
eclass-shortcut
21-18-20-03
ISO_SSC
HORN274140000R$$$$$
DIN_SSC
HORN-274140000R
Katalog_SSC
274140R
Plating seat size (Größe)
4
Width of groove (w)
0.4
mm
Corner radius (r)
0.05
mm
Maximum stepover (ap) (ap)
4
mm
| Downloads | |
|---|---|
| RS274046004M0E_20240116_173714544.STP | Download |
| RS274046004M0E_20210629_031330964.DXF | Download |
| Download all files | |
