RS274.0712.02 TH35
Insert
Part number RS274071202TH35

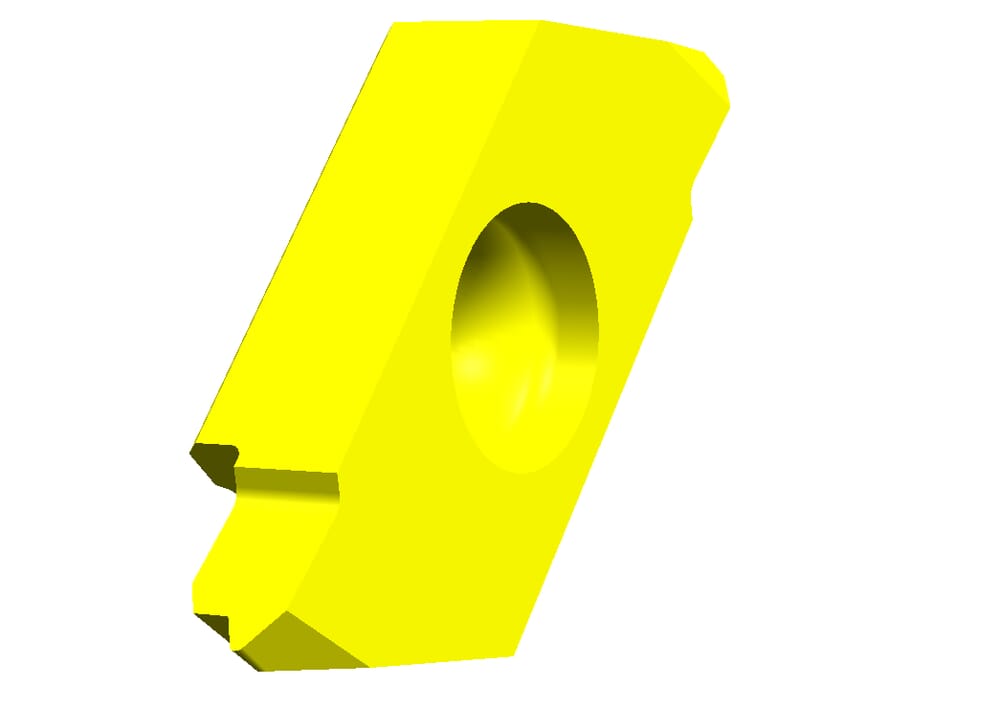

HORN Insert RS274.0712.02 TH35 for Gewinden
Please note:Technical instructions
number-of-teeth
2
St.
Top radius (r)
0.15
mm
Profile, thread depth (h1)
0.77
mm
eclass-shortcut
21-18-20-03
ISO_SSC
HORN274040000R$$$$$
DIN_SSC
HORN-274040000R
Katalog_SSC
274040R
Plating seat size (Größe)
4
Setting length (E)
0.7
mm
Pitch (P)
1.25
mm
| Downloads | |
|---|---|
| RS274071202_20210630_141509546.STP | Download |
| RS274071202_20210629_031539123.DXF | Download |
| Download all files | |
