RS274.1510.03.M0L IG35
Insert
Part number RS274151003M0LIG35

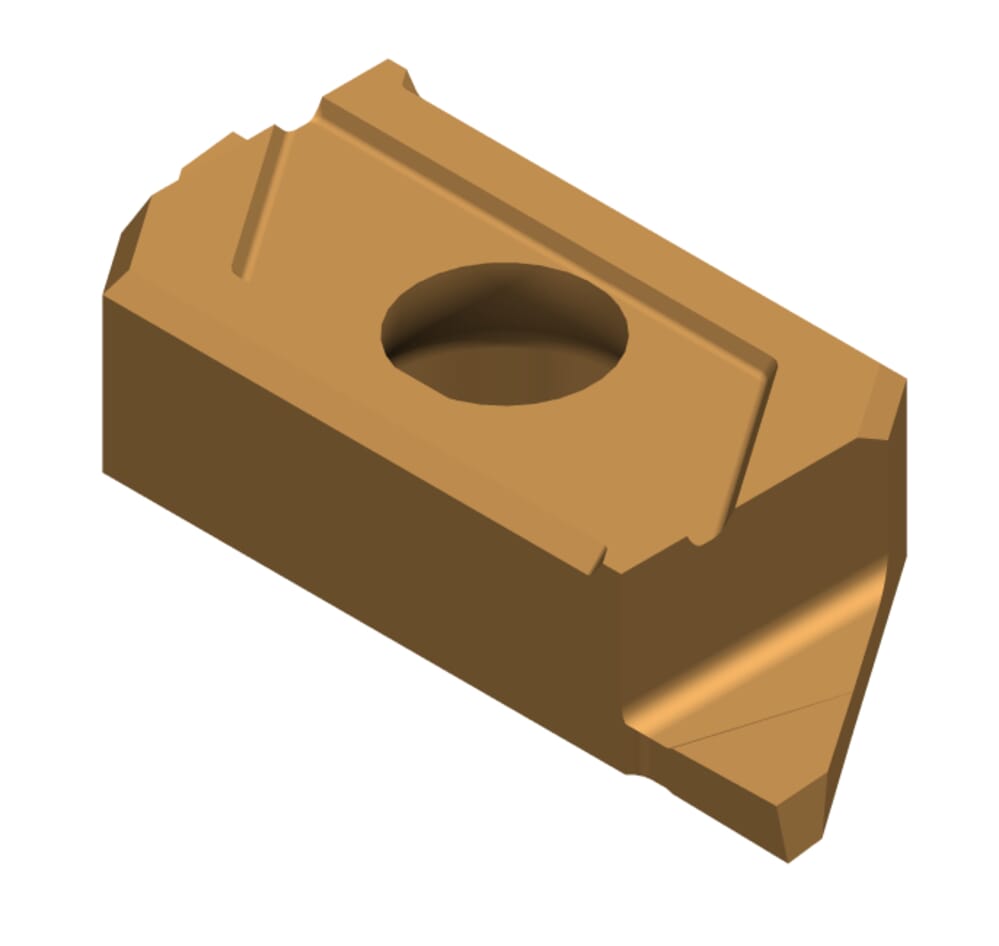

HORN Insert RS274.1510.03.M0L IG35 for Turning
Please note:Technical instructions
Parting-off chamfer (α)
15
°
Maximum depth of groove (tmax)
3
mm
Cutting angle (γ)
0
°
eclass-shortcut
21-18-20-03
ISO_SSC
HORN274040000R$$$$$
DIN_SSC
HORN-274040000R
Katalog_SSC
274040R
Plating seat size (Größe)
4
Width of groove (w)
1
mm
| Downloads | |
|---|---|
| RS274151003M0L_20240116_173022301.STP | Download |
| RS274151003M0L_20211124_203920267.DXF | Download |
| Download all files | |
