RS274.1515.04.10L IG35
Insert
Part number RS27415150410LIG35

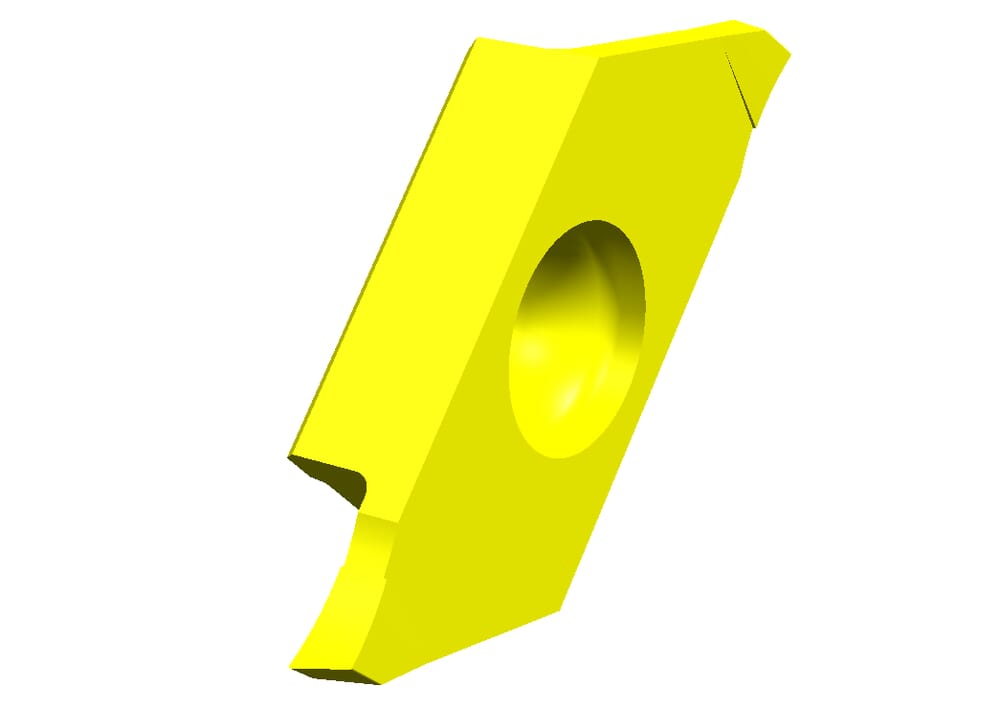

HORN Insert RS274.1515.04.10L IG35 for Turning
Please note:Technical instructions
Parting-off chamfer (α)
15
°
Maximum depth of groove (tmax)
4
mm
eclass-shortcut
21-18-20-03
ISO_SSC
HORN274040000R$$$$$
DIN_SSC
HORN-274040000R
Katalog_SSC
274040R
Plating seat size (Größe)
4
Width of groove (w)
1.5
mm
Corner radius (r)
0.05
mm
| Downloads | |
|---|---|
| RS27415150410L_20240116_173113053.STP | Download |
| RS27415150410L.DXF | Download |
| Download all files | |
