RS274.1515.04.M0L IG35
Insert
Part number RS274151504M0LIG35

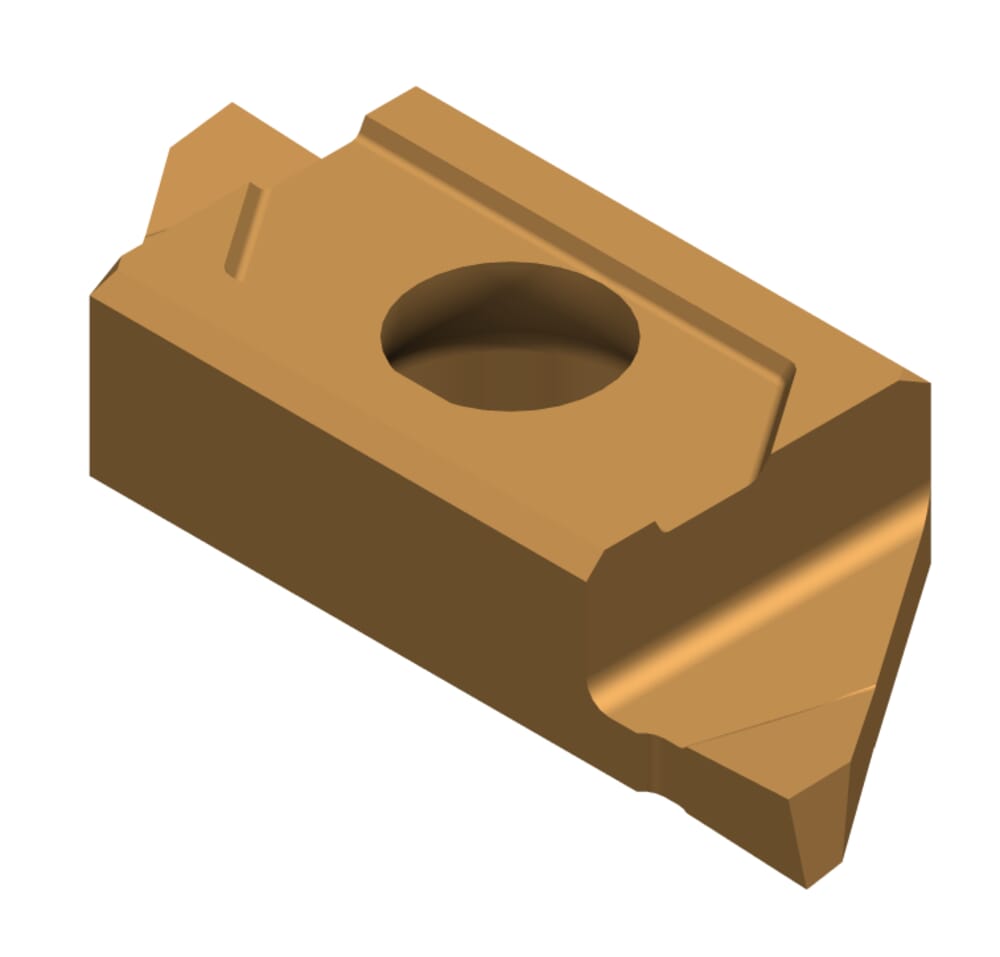

HORN Insert RS274.1515.04.M0L IG35 for Turning
Please note:Technical instructions
Parting-off chamfer (α)
15
°
Maximum depth of groove (tmax)
4
mm
Cutting angle (γ)
0
°
eclass-shortcut
21-18-20-03
ISO_SSC
HORN274040000R$$$$$
DIN_SSC
HORN-274040000R
Katalog_SSC
274040R
Plating seat size (Größe)
4
Width of groove (w)
1.5
mm
| Downloads | |
|---|---|
| RS274151504M0_20240116_173247649.STP | Download |
| RS274151504M0_20211124_204650802.DXF | Download |
| Download all files | |
