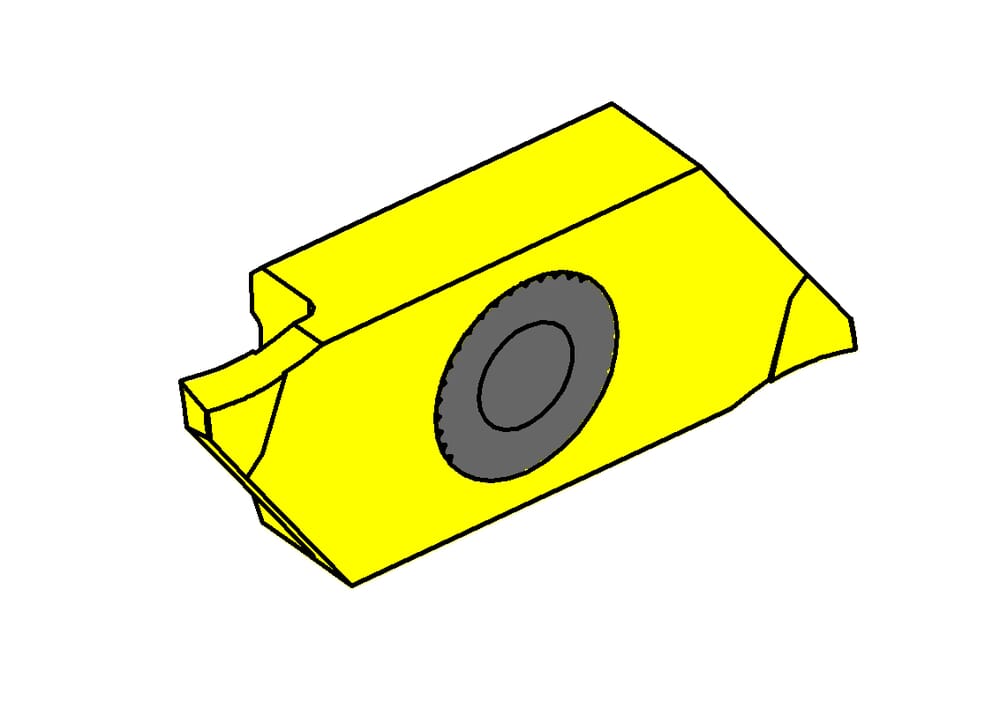

RS2741515041LE_PICTO.TIF

RS274.1520.06.1L.E IG35

Insert

ABSTECHEN_20210506_153854505.EPS

GEOMETRIE_10.EPS

Part number RS2741520061LEIG35

HORN Insert RS274.1520.06.1L.E IG35 for Turning

Please note:Technical instructions

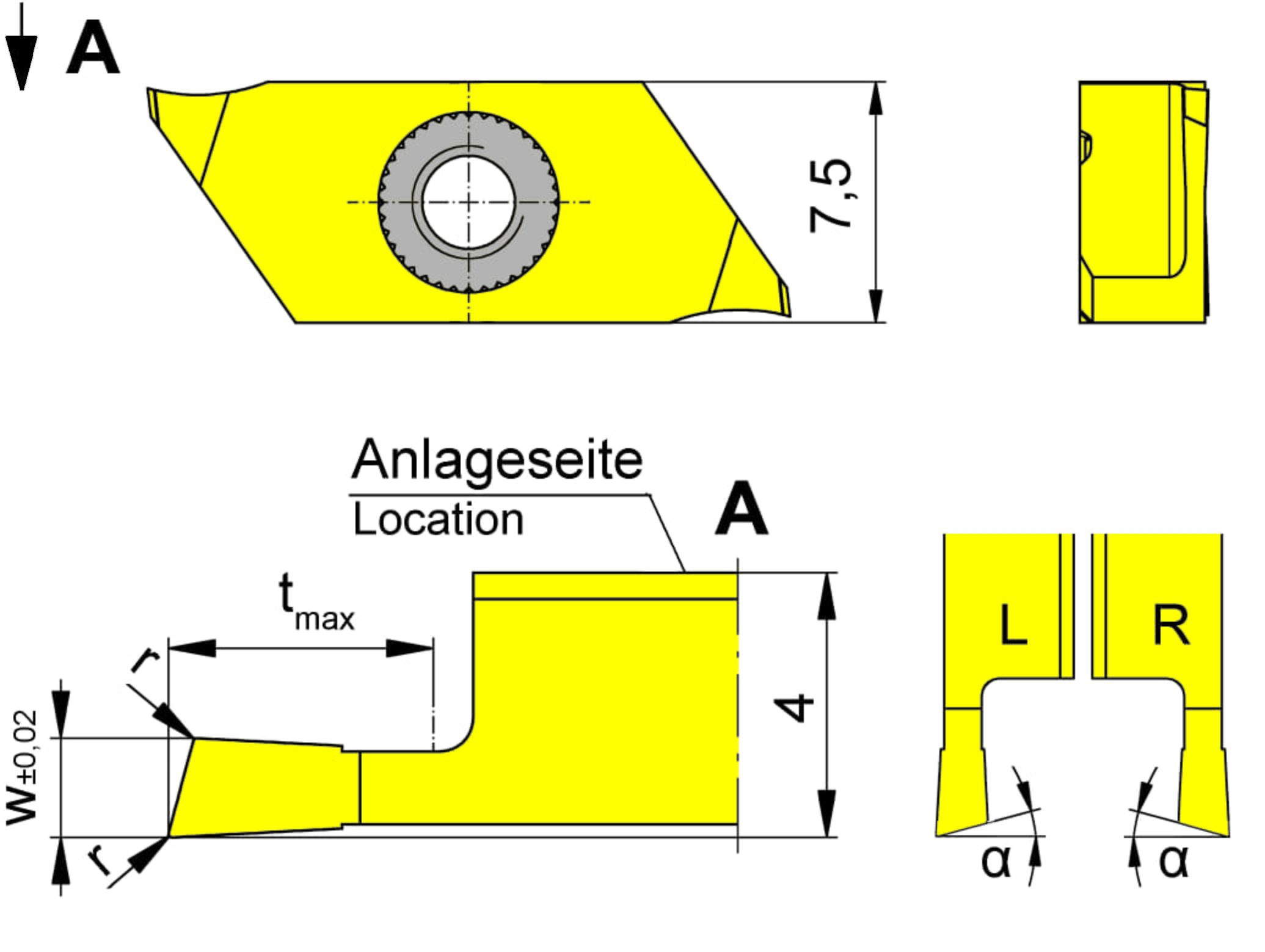

Parting-off chamfer (α)

15 °

Maximum depth of groove (tmax)

6 mm

eclass-shortcut

21-18-20-03

ISO_SSC

HORN274140000R$$$$$

DIN_SSC

HORN-274140000R

Katalog_SSC

274140R

Plating seat size (Größe)

4

Width of groove (w)

2 mm

Corner radius (r)

0.05 mm
