RS274.1520.06.20L TH35
Insert
Part number RS27415200620LTH35
HORN Insert RS274.1520.06.20L TH35 for Turning

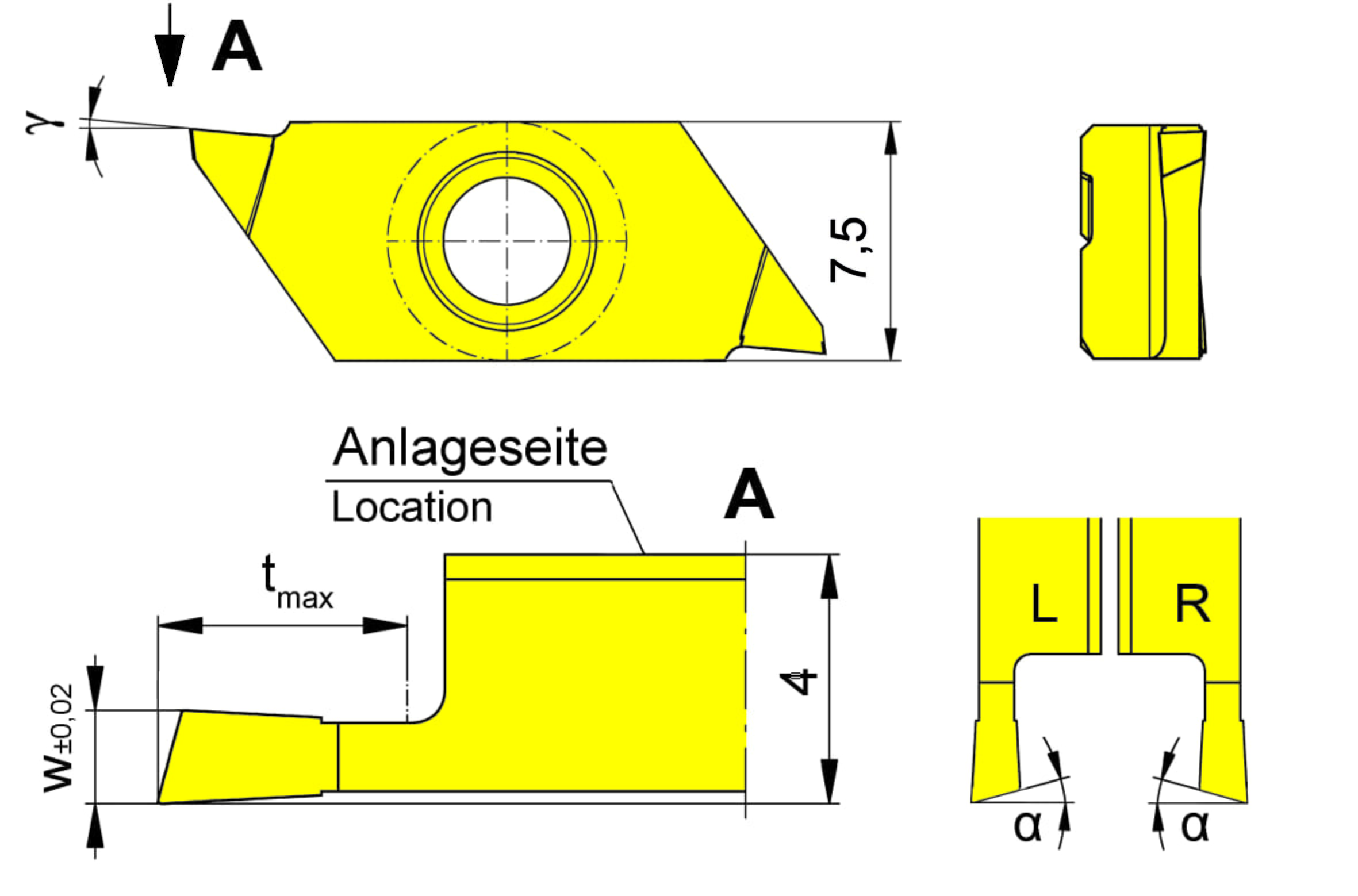

Please note:Technical instructions
Parting-off chamfer (α)
15
°
Maximum depth of groove (tmax)
6
mm
Cutting angle (γ)
5
°
eclass-shortcut
21-18-20-03
ISO_SSC
HORN274040000R$$$$$
DIN_SSC
HORN-274040000R
Katalog_SSC
274040R
Plating seat size (Größe)
4
Width of groove (w)
2
mm
| Downloads | |
|---|---|
| RS27415200620L_20240116_173350713.STP | Download |
| RS27415200620_20211124_204821277.DXF | Download |
| Download all files | |
