RS274.1520.06.M0 TH35
Insert
Part number RS274152006M0TH35

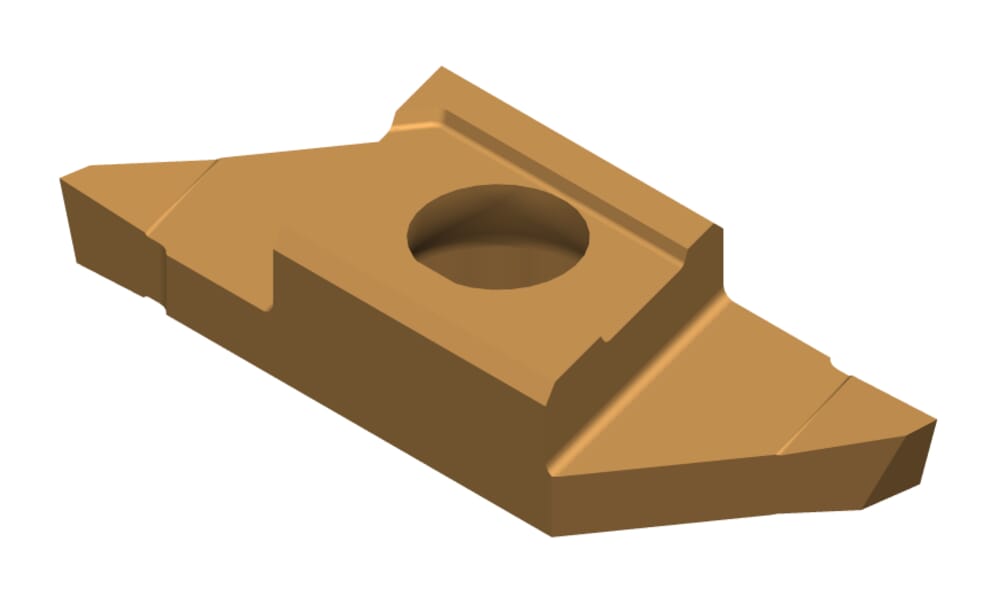

HORN Insert RS274.1520.06.M0 TH35 for Turning
Please note:Technical instructions
Parting-off chamfer (α)
15
°
Maximum depth of groove (tmax)
6
mm
Cutting angle (γ)
0
°
eclass-shortcut
21-18-20-03
ISO_SSC
HORN274040000R$$$$$
DIN_SSC
HORN-274040000R
Katalog_SSC
274040R
Plating seat size (Größe)
4
Width of groove (w)
2
mm
| Downloads | |
|---|---|
| RS274152006M0_20240116_173400822.STP | Download |
| RS274152006M0_20211124_202232928.DXF | Download |
| Download all files | |
