RS310.5028.16 AS45
Insert
Part number RS310502816AS45

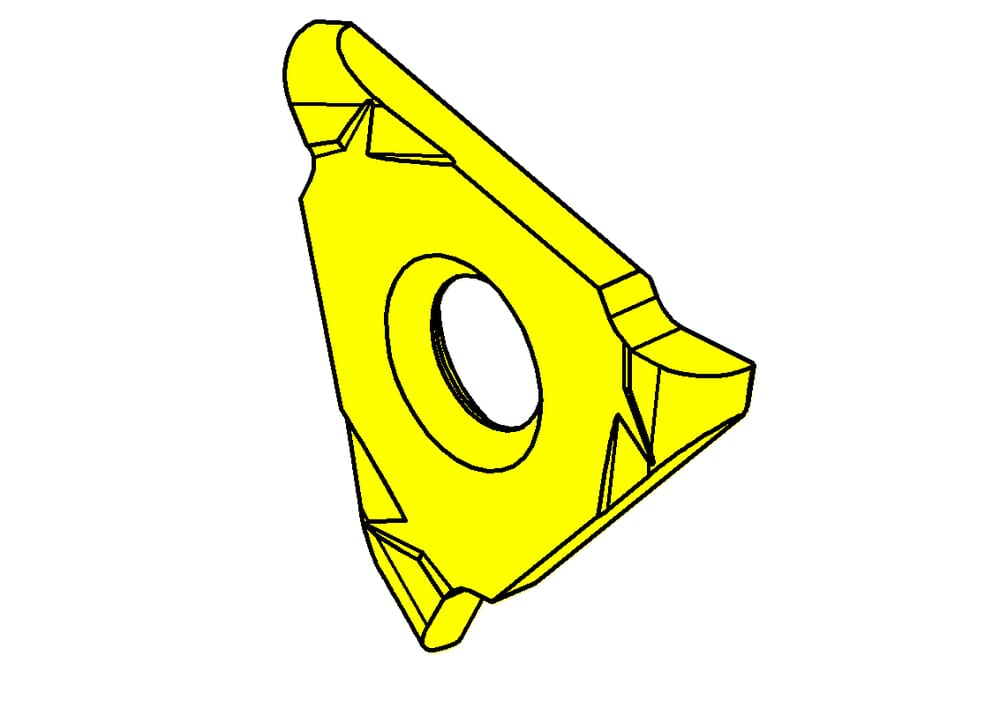

HORN Insert RS310.5028.16 AS45 for Milling
Please note:Technical instructions
eclass-shortcut
21-18-20-01
ISO_SSC
HORN310028101R$$$$$
DIN_SSC
HORN-310028101R
Katalog_SSC
310028R
Width of groove (w)
5
mm
Radius, full-radius (r)
1.6
mm
Cutting insert thickness (Plant to cutting edge) (bs)
2.68
mm
Plate thickness without cutting edge (s)
2.62
mm
| Downloads | |
|---|---|
| RS310502816_20230116_091447731.STP | Download |
| RS310502816.DXF | Download |
| Download all files | |
