RS312.0525.F2 EG56
Insert
Part number RS3120525F2EG56

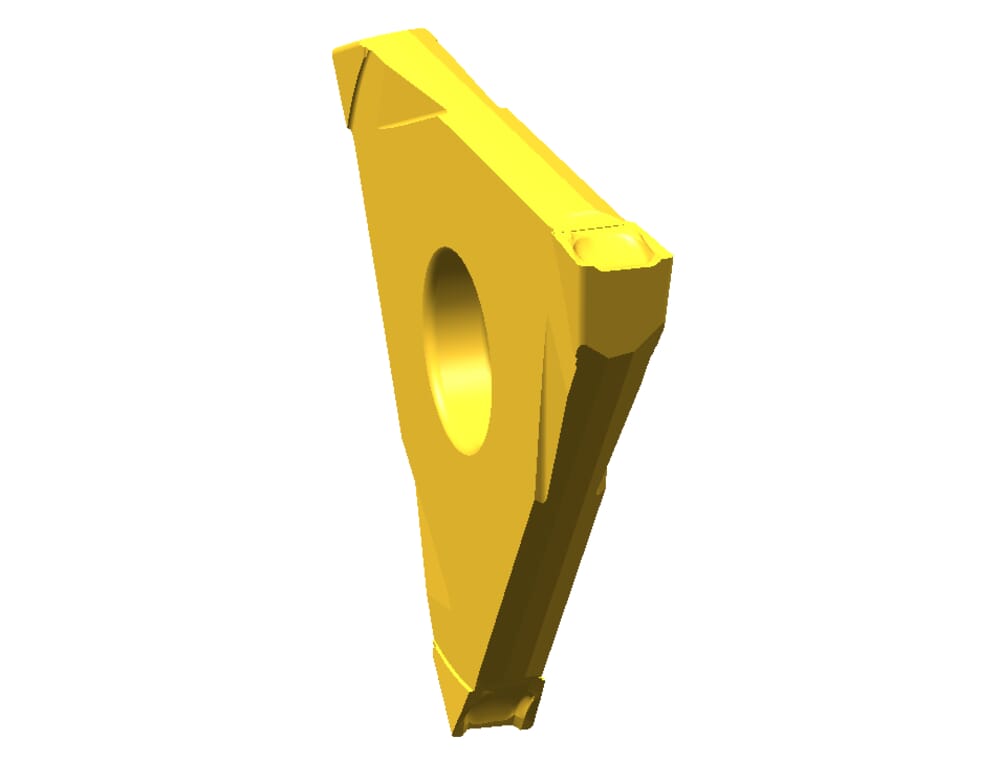

HORN Insert RS312.0525.F2 EG56 for Turning
Please note:Technical instructions
Cancellation (a1)
0.25
mm
Parting-off chamfer (α)
5
°
eclass-shortcut
21-18-20-01
ISO_SSC
HORN-31202$000N$$$$$
DIN_SSC
HORN-31202000N
Katalog_SSC
31202N
Plating seat size (Größe)
2
Width of groove (w)
2.5
mm
Corner radius (r)
0.2
mm
| Downloads | |
|---|---|
| RS3120525F2_20240116_182004432.STP | Download |
| RS3120525F2_20211124_210216515.DXF | Download |
| Download all files | |
