RS316.0200.FY2 TI25
Insert
Part number RS3160200FY2TI25

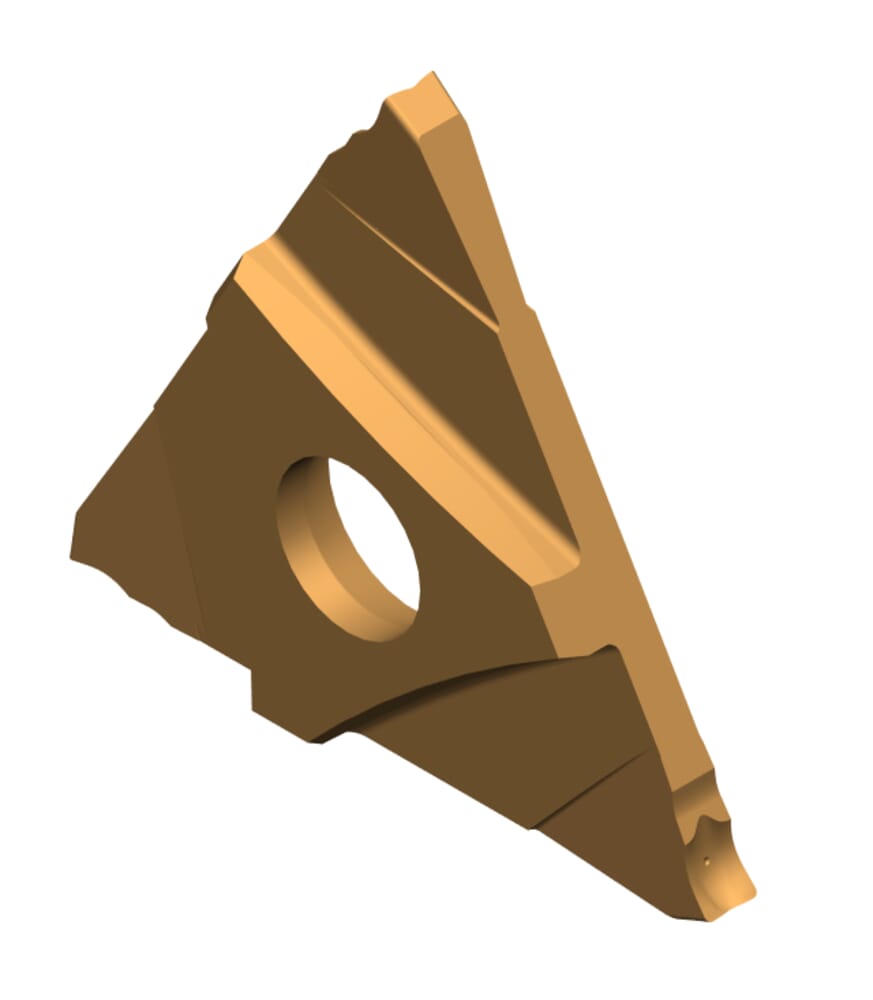

HORN Insert RS316.0200.FY2 TI25 for Turning
Please note:Technical instructions
Maximum depth of groove (tmax)
8
mm
eclass-shortcut
21-18-20-01
ISO_SSC
HORNS31603$000R$$$$$
DIN_SSC
HORN-S31603000R
Katalog_SSC
S31603R
Plating seat size (Größe)
3
Width of groove (w)
2
mm
Cutting insert width (s)
3.5
mm
Corner radius (r)
0.2
mm
| Downloads | |
|---|---|
| RS3160200FY2_20240116_174558837.STP | Download |
| RS3160200FY2_20210629_034655932.DXF | Download |
| Download all files | |
