RS316.0250.EN2 AS6G
Insert
Part number RS3160250EN2AS6G

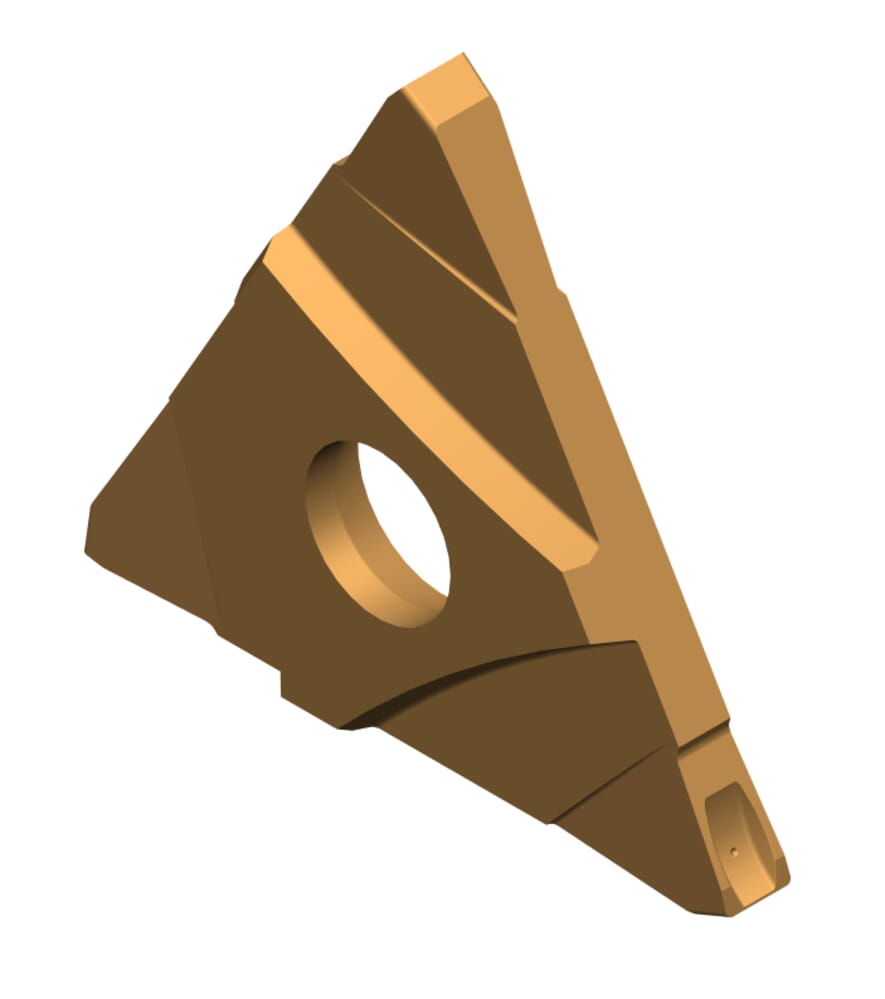

HORN Insert RS316.0250.EN2 AS6G for Turning
Please note:Technical instructions
Maximum depth of groove (tmax)
8
mm
eclass-shortcut
21-18-20-01
ISO_SSC
HORNS31603$000R$$$$$
DIN_SSC
HORN-S31603000R
Katalog_SSC
S31603R
Plating seat size (Größe)
3
Width of groove (w)
2.5
mm
Cutting insert width (s)
3.5
mm
Corner radius (r)
0.2
mm
| Downloads | |
|---|---|
| RS3160250EN2_20240116_174621228.STP | Download |
| RS3160250EN2_20210629_034758512.DXF | Download |
| Download all files | |
