RS316.0250.FY2 TI25
Insert
Part number RS3160250FY2TI25

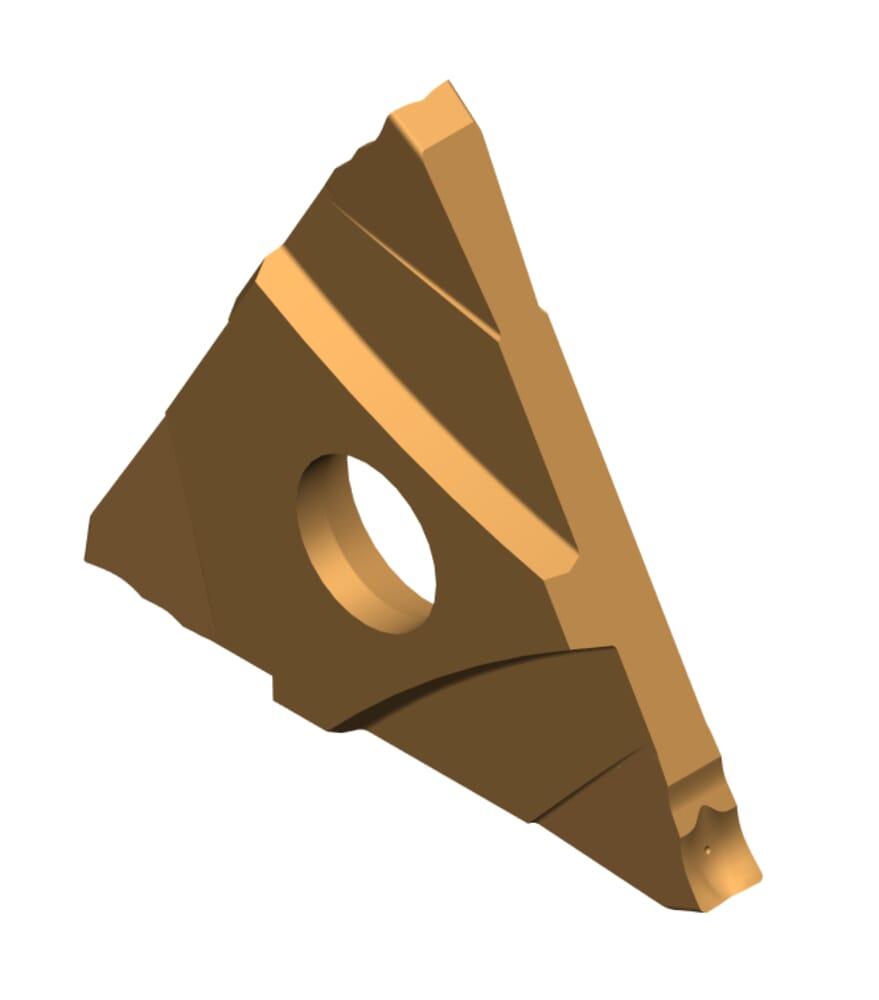

HORN Insert RS316.0250.FY2 TI25 for Turning
Please note:Technical instructions

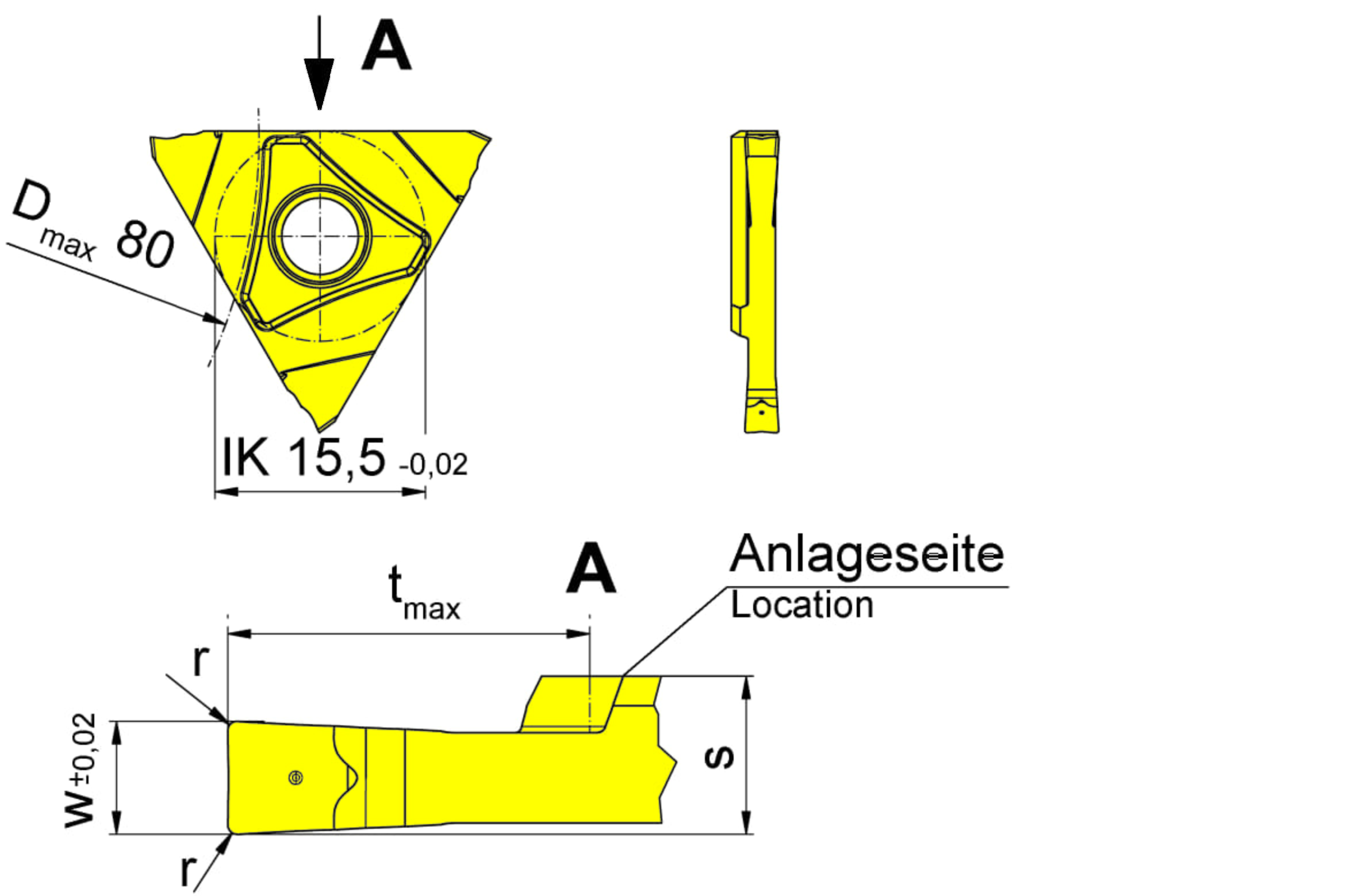

Maximum depth of groove (tmax)
8
mm
eclass-shortcut
21-18-20-01
ISO_SSC
HORNS31603$000R$$$$$
DIN_SSC
HORN-S31603000R
Katalog_SSC
S31603R
Plating seat size (Größe)
3
Width of groove (w)
2.5
mm
Cutting insert width (s)
3.5
mm
Corner radius (r)
0.2
mm
| Downloads | |
|---|---|
| RS3160250FY2_20240116_174638557.STP | Download |
| RS3160250FY2_20210629_034813294.DXF | Download |
| Download all files | |
