S117.0026.00 MG12

Inserts

Part number S117002600MG12

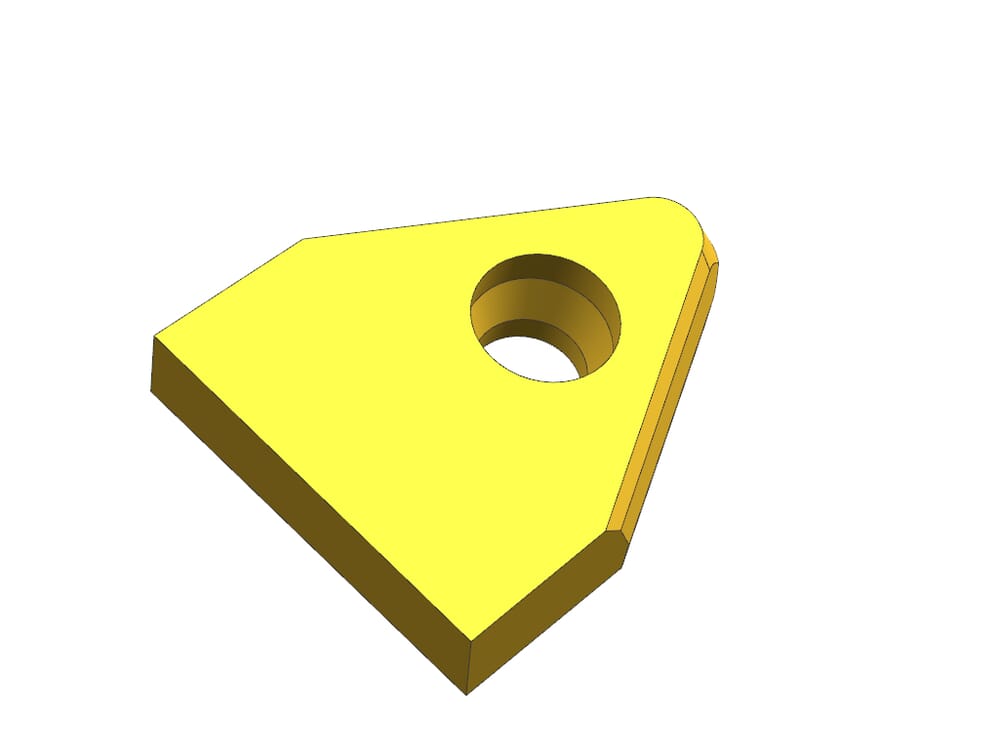

HORN Inserts S117.0026.00 MG12 for Turning

Insertion angle (α)

5 °

Maximum depth of groove (tmax)

10 mm

eclass-shortcut

21-18-20-11

Toolholder (Klemmhalter)

H117...26

ISO_SSC

HORN117261050N$$$$$

DIN_SSC

HORN-117261050N

Katalog_SSC

1172605

Width of groove (w)

26 mm

Cutting insert height, Cutting insert thickness (E)

7 mm

Total length (l)

32 mm
