S117.SW30.16.A1 AN45

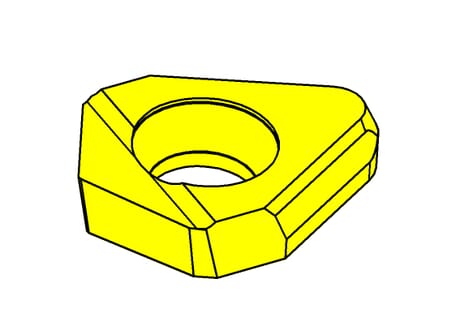

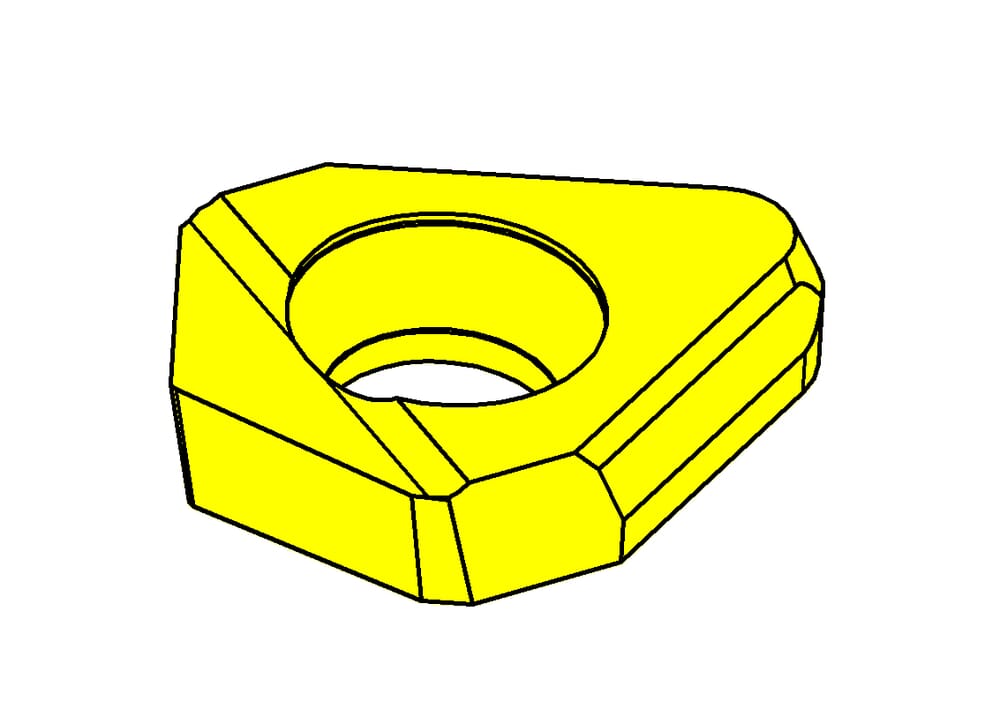

117 style broach insert - A1 geometry
Part number S117SW3016A1AN45
HORN 117 style broach insert - A1 geometry S117.SW30.16.A1 AN45 for Broaching
Please note:Technical instructions

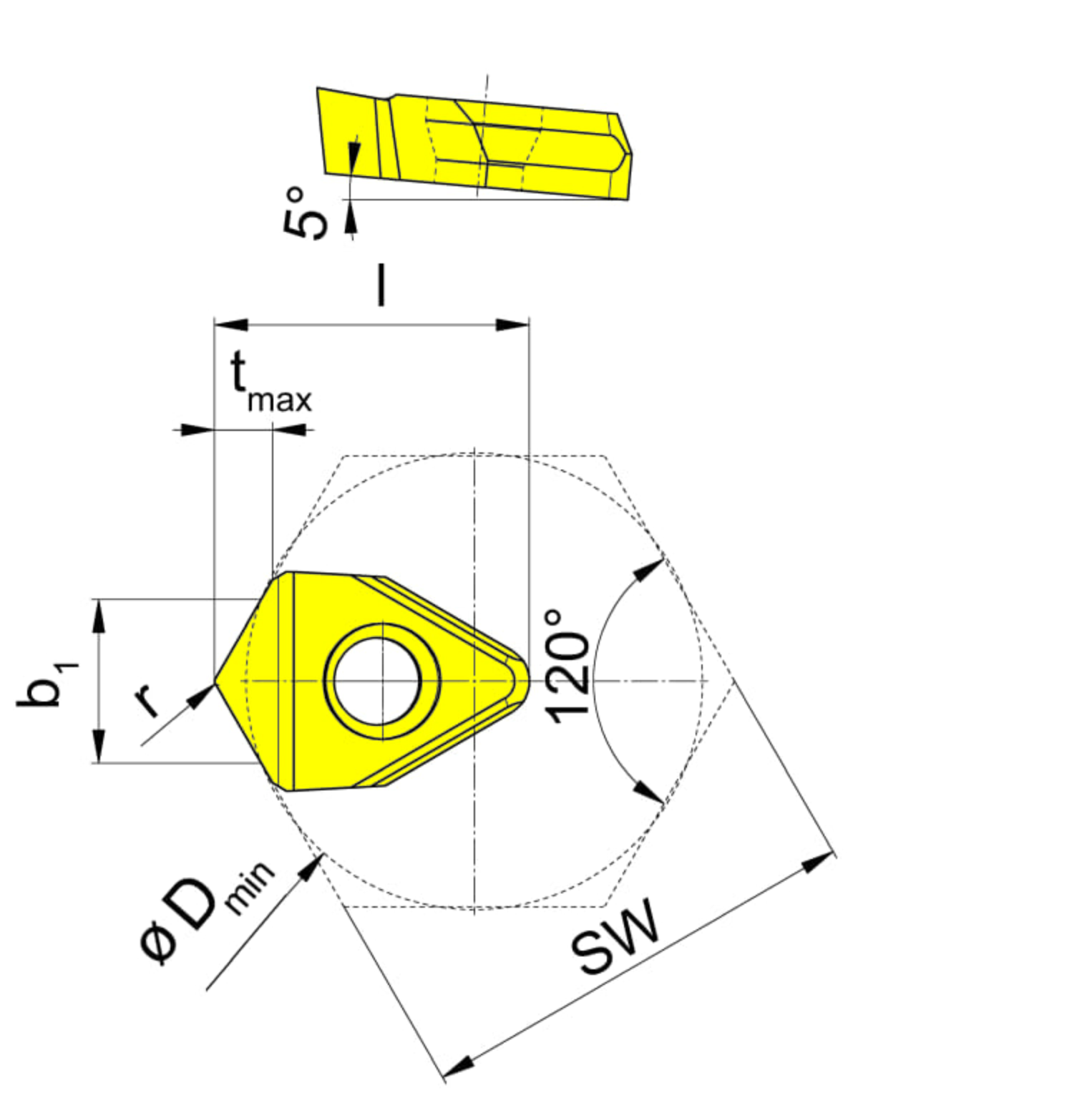

Key range maximum (SW)
36
mm
Form (Form)
N
Cutting width minimum (b1)
11.32
mm
Smallest bore diameter (Dmin)
30.3
mm
Total length (l)
20.7
mm
Cutting width maximum (b1)
13.97
mm
Katalog_SSC
117N605
DIN_SSC
HORN-117N61050N
ISO_SSC
HORN117N61050N$$$$$
Smallest bore diameter (Dmin)
36.3
mm
Key range minimum (SW)
30
mm
Toolholder (Klemmhalter)
SH117.3032.30.1.16
eclass-shortcut
21-18-20-11
Maximum depth of groove (tmax)
4.2
mm
Top radius (r)
0.3
mm
| Downloads | |
|---|---|
| S117SW3016_20210630_164955835.STP | Download |
| S117SW3016.DXF | Download |
| Download all files | |
