S15A.0300.10.15 TH35
insert
Part number S15A03001015TH35

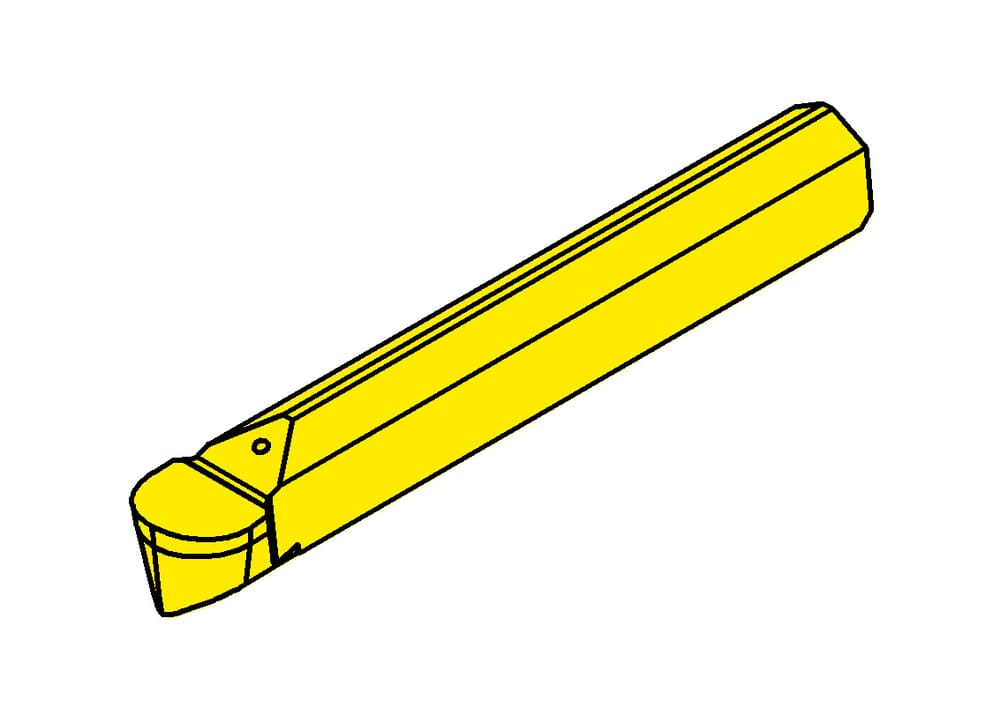

HORN insert S15A.0300.10.15 TH35 for Turning
Please note:Technical instructions
Full radius (r)
1.5 mm
eclass-shortcut
21-18-20-11
ISO_SSC
HORN25A030008N$$$$$
Katalog_SSC
25A03
Plating seat size (Größe)
3
Width of groove (w)
3 mm
Total length (l)
21 mm
| Downloads | |
|---|---|
| S15A_0300_10_15_TH35-DXF.DXF | Download |
| S15A_0300_10_15_TH35-STP.STP | Download |
| S15A_0300_10_15_TH35-ISO.XML | Download |
| S15A_0300_10_15_TH35-DIN.XML | Download |
| Download all files | |
