S209.0200.1A2 AS45
insert
Part number S20902001A2AS45

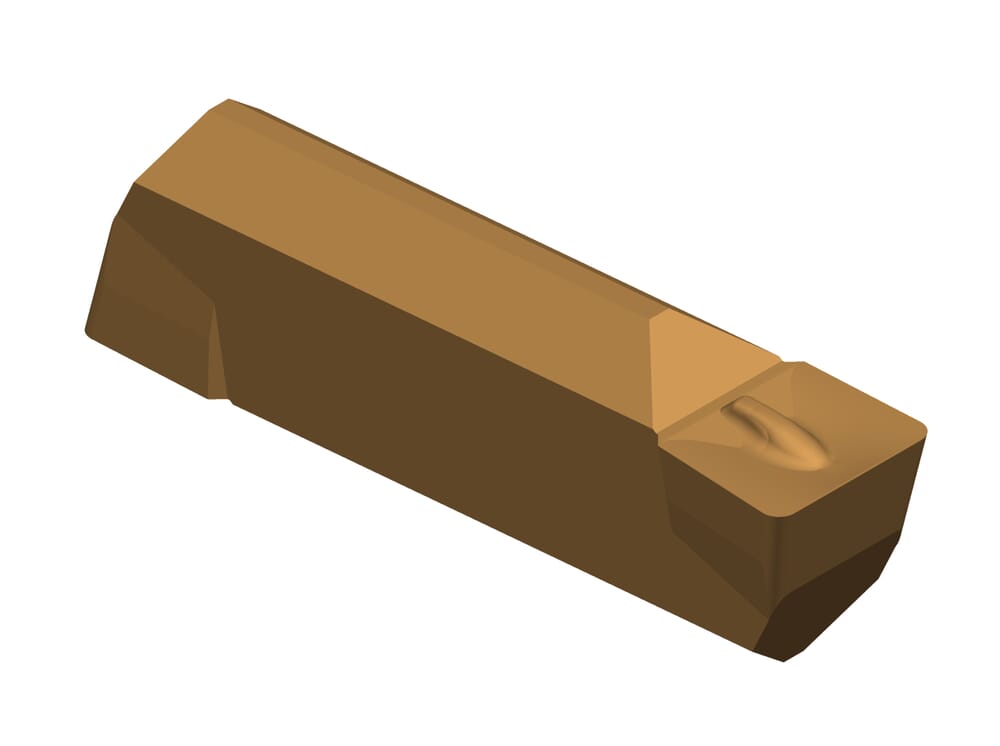

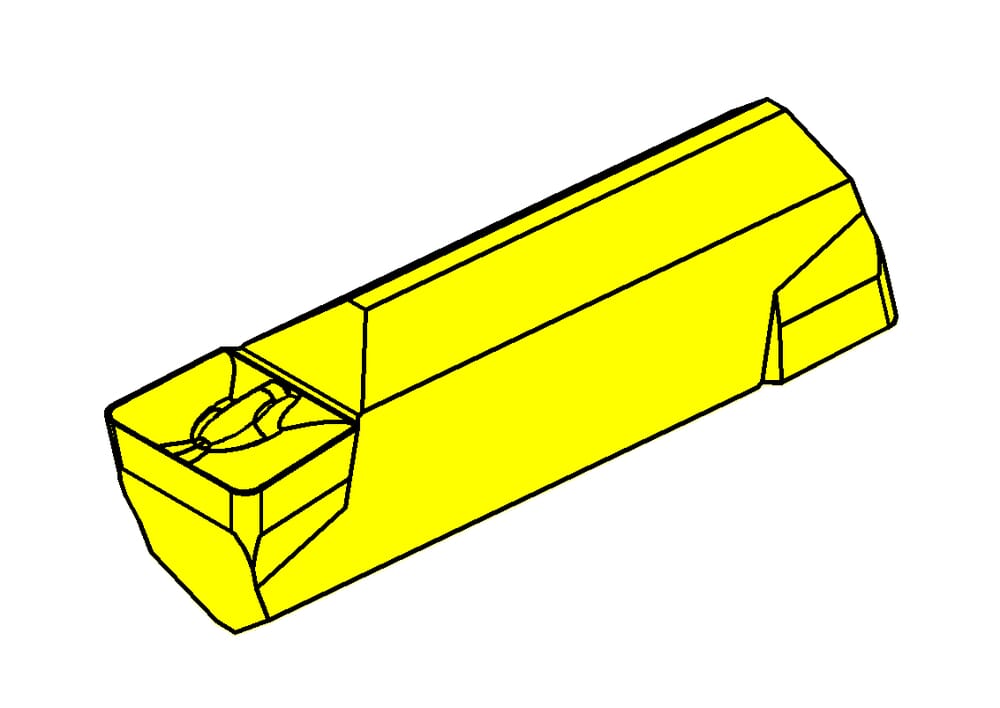

HORN insert S209.0200.1A2 AS45 for Turning
Please note:Technical instructions
eclass-shortcut
21-18-20-03
ISO_SSC
HORN209200058N$$$$$
DIN_SSC
HORN-209200058N
Katalog_SSC
20920

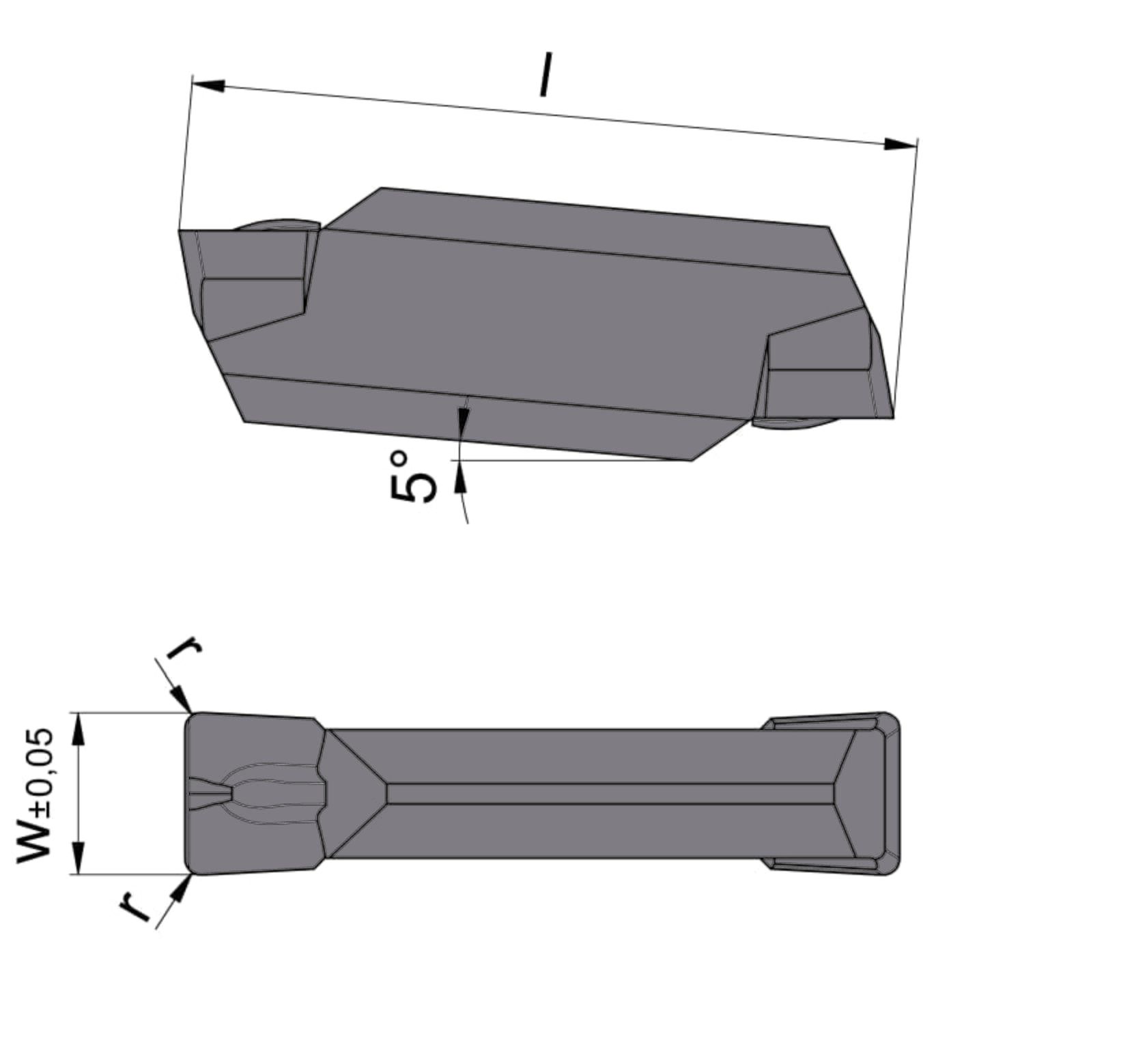

Plating seat size (Größe)
20
Width of groove (w)
2
mm
Corner radius (r)
0.2
mm
Total length (l)
9
mm
| Downloads | |
|---|---|
| S20902001A2_20210630_175815094.STP | Download |
| S20902001A2_20210629_062425394.DXF | Download |
| Download all files | |
