S209.FB20.02 EG35
Insert
Part number S209FB2002EG35

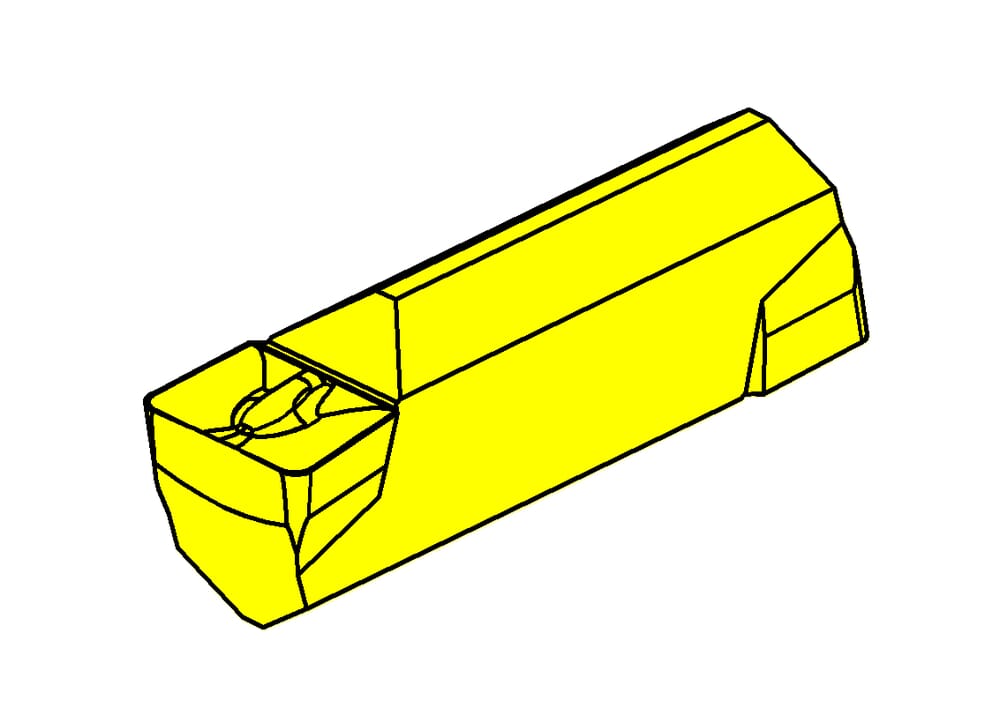

HORN Insert S209.FB20.02 EG35 for Turning
Please note:Technical instructions
eclass-shortcut
21-18-20-03
ISO_SSC
HORN209200058N$$$$$
DIN_SSC
HORN-209200058N
Katalog_SSC
20920
plating-seat-size
20

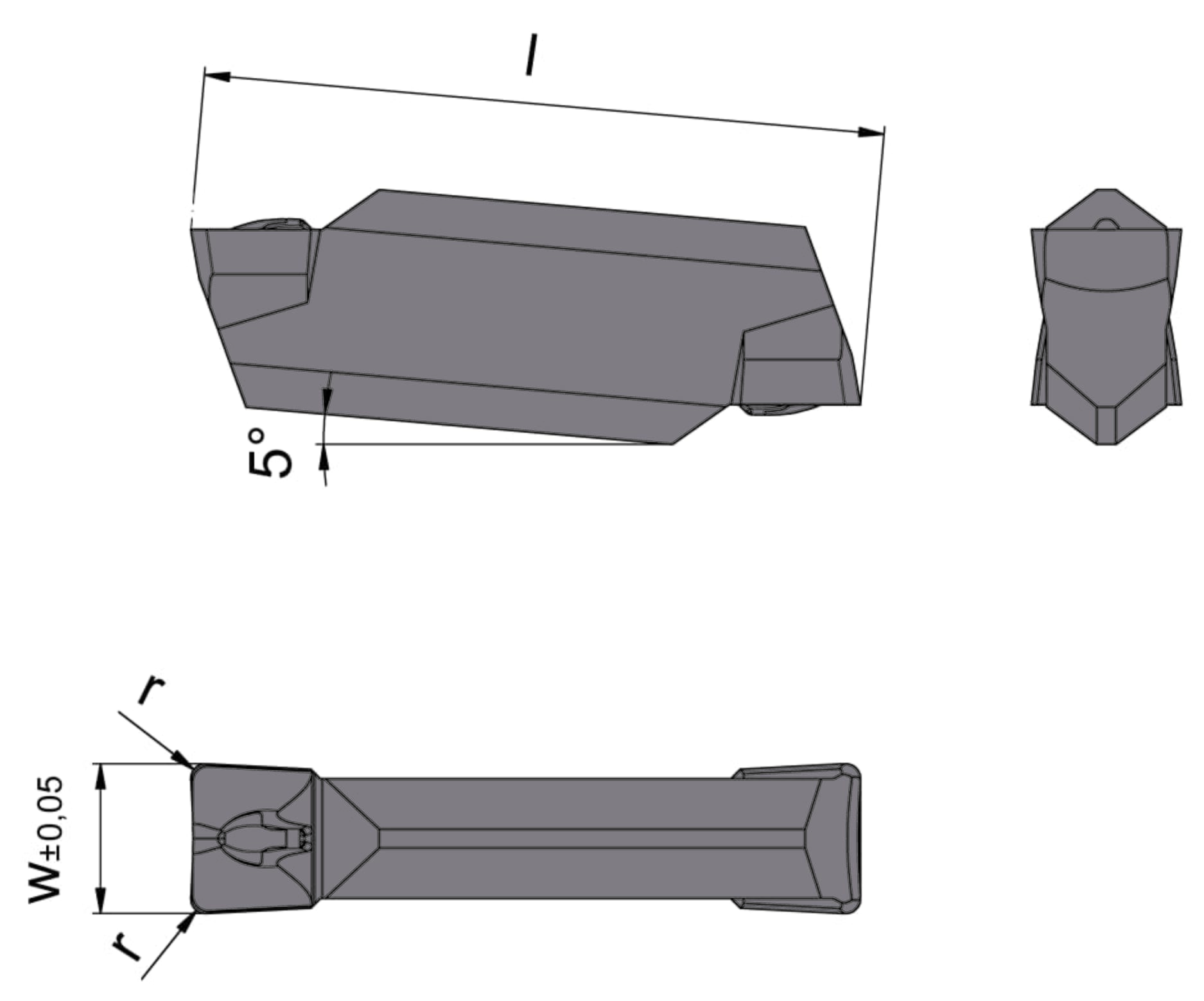

Width of groove (w)
2
mm
Corner radius (r)
0.2
mm
Total length (l)
9
mm
| Downloads | |
|---|---|
| S209FB2002_20230116_083226770.STP | Download |
| S209FB2002.DXF | Download |
| Download all files | |
