S224.0300.FY2 TI25
Insert
Part number S2240300FY2TI25

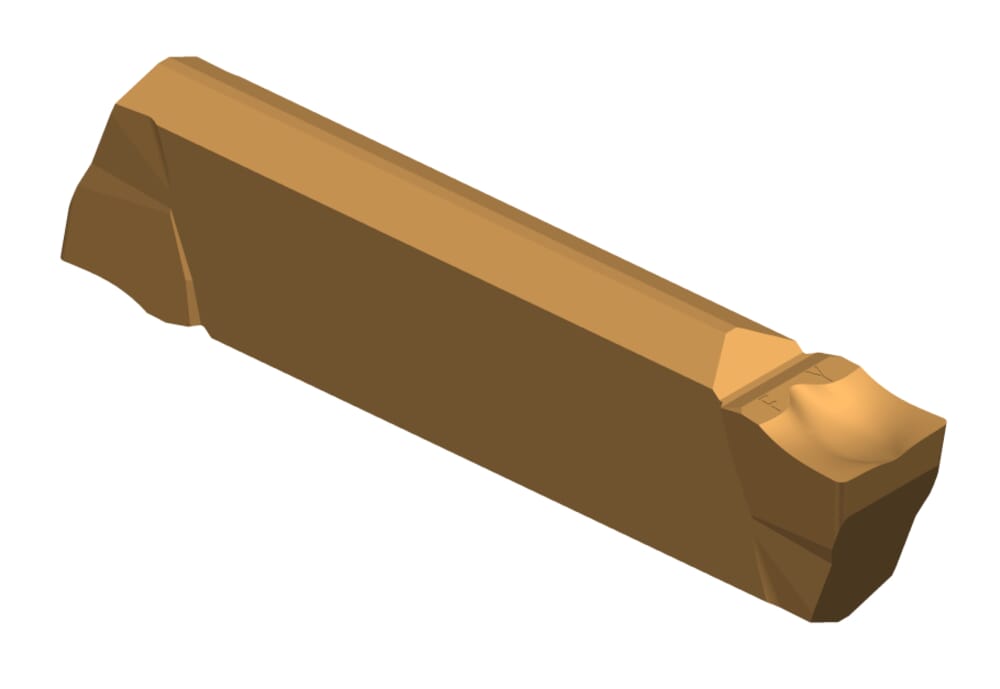

HORN Insert S224.0300.FY2 TI25 for Turning
Please note:Technical instructions
eclass-shortcut
21-18-20-03
ISO_SSC
HORN224030058N$$$$$
DIN_SSC
HORN-224030058N
Katalog_SSC
224038
Plating seat size (Größe)
3
Width of groove (w)
3
mm
Corner radius (r)
0.2
mm
| Downloads | |
|---|---|
| S2240300FY2_20230116_081849899.STP | Download |
| S2240300FY2_20210629_064159197.DXF | Download |
| Download all files | |
