S224.FB30.02 IG6T
Insert
Part number S224FB3002IG6T

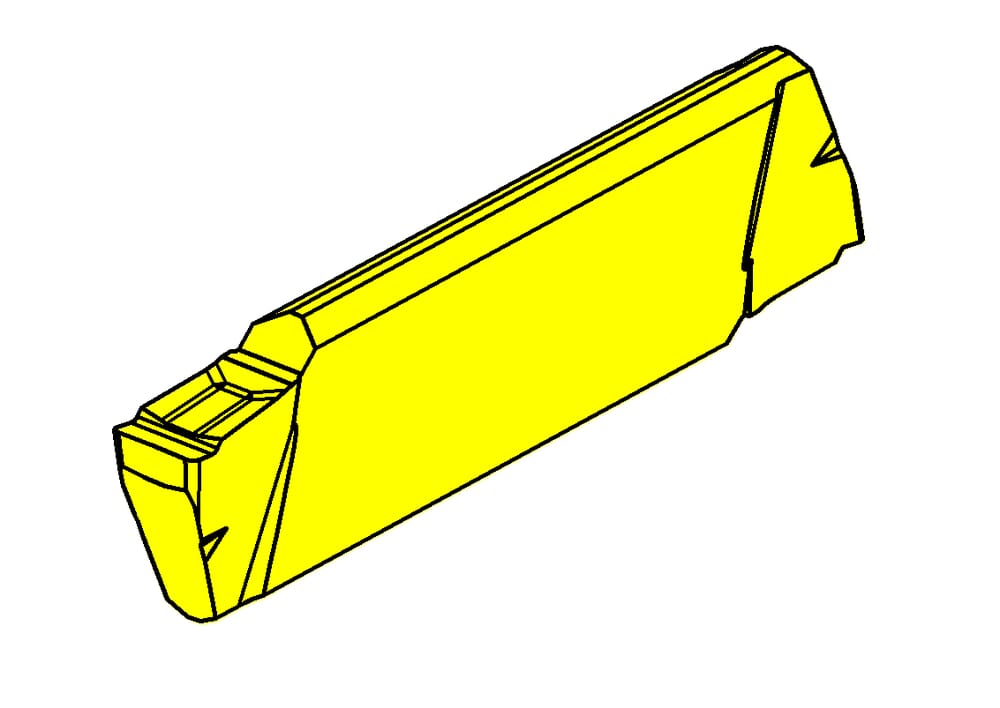

HORN Insert S224.FB30.02 IG6T for Turning
Please note:Technical instructions
eclass-shortcut
21-18-20-03
ISO_SSC
HORN-224030058N
DIN_SSC
HORN224030058N$$$$$
Katalog_SSC
224038
Plating seat size (Größe)
3

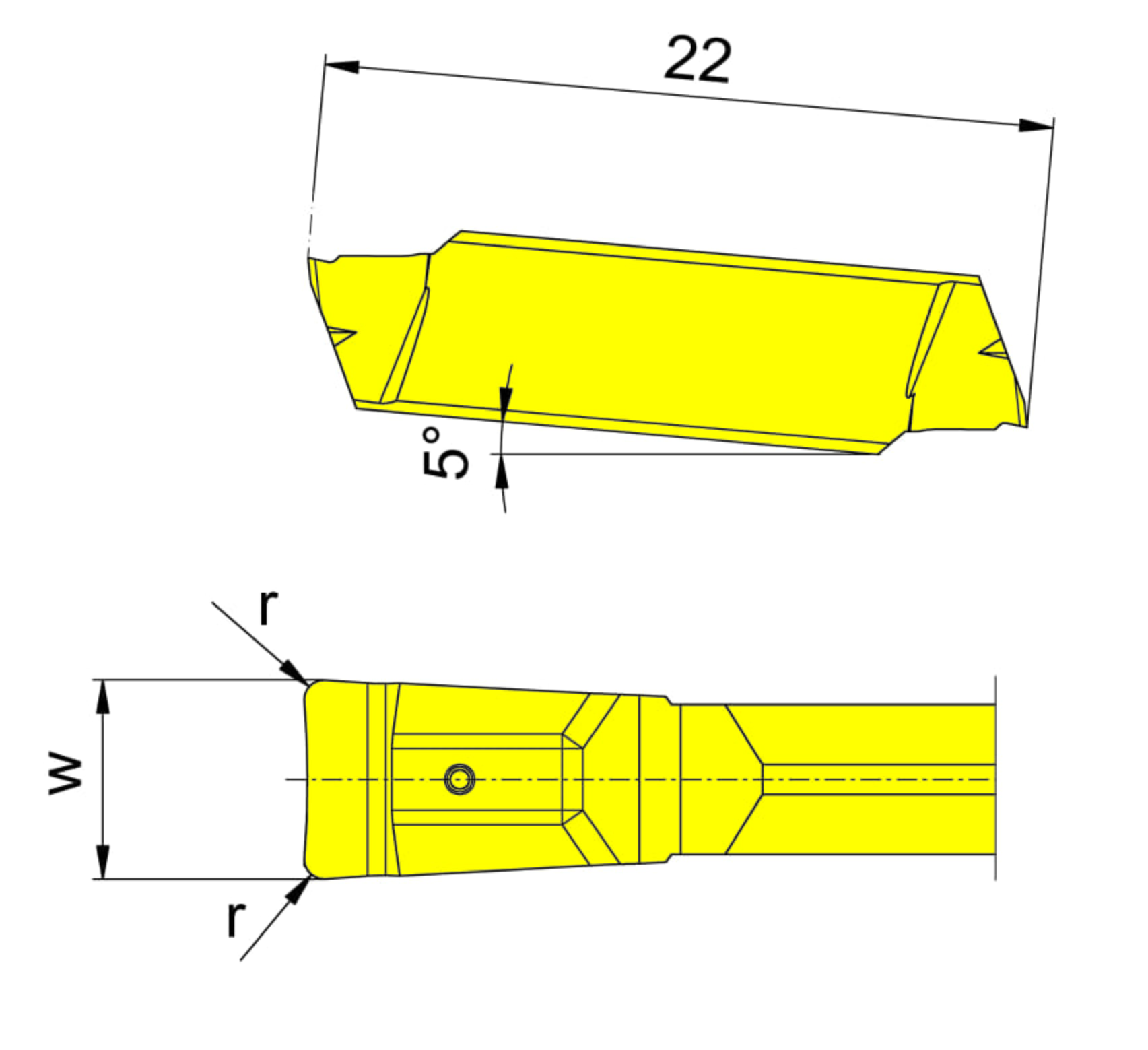

Width of groove (w)
3
mm
Corner radius (r)
0.2
mm
| Downloads | |
|---|---|
| S224FB3002_20230116_083217888.STP | Download |
| S224FB3002.DXF | Download |
| Download all files | |
