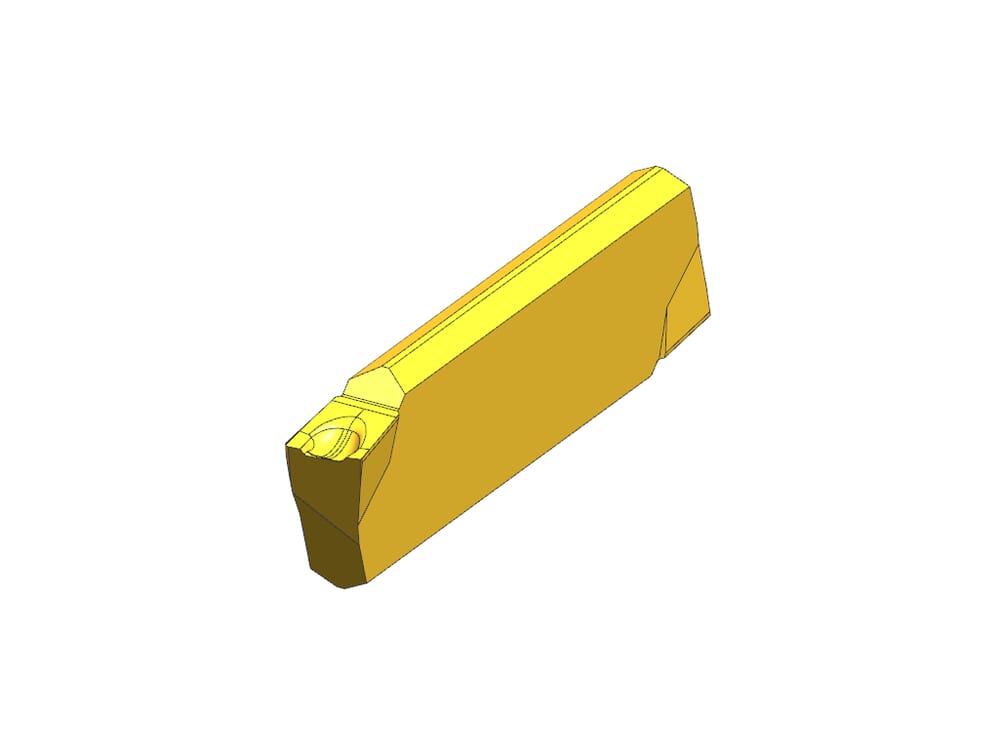

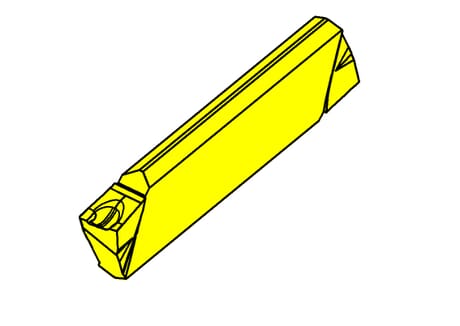

S229.0040.C1 TN35
Inserts
Part number S2290040C1TN35
HORN Inserts S229.0040.C1 TN35 for Turning
Please note:Technical instructions

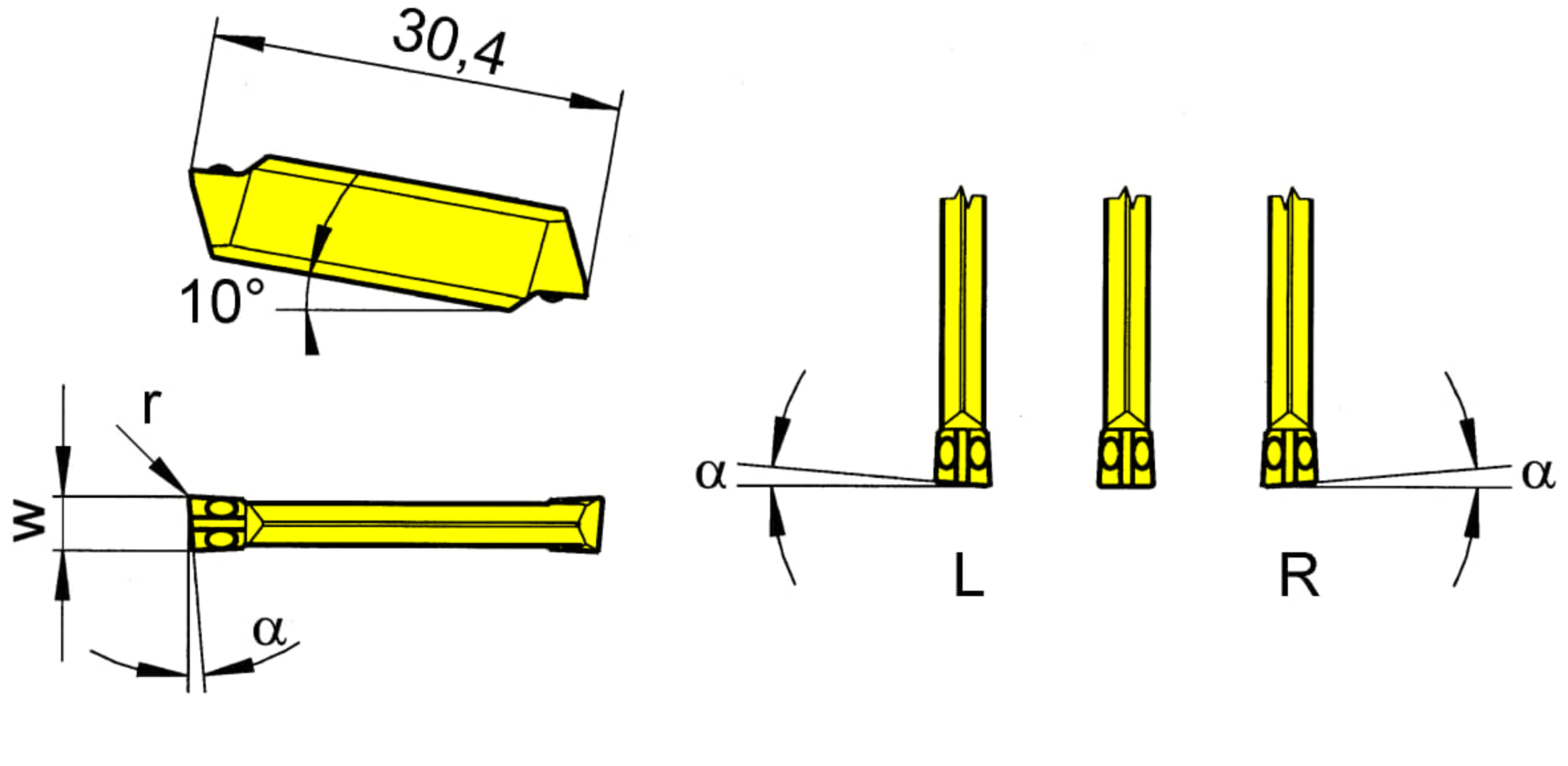

Parting-off chamfer (α)
0
°
eclass-shortcut
21-18-20-03
ISO_SSC
HORN229030108N$$$$$;HORN229040108N$$$$$
DIN_SSC
HORN-229030108N;HORN-229040108N
Katalog_SSC
229030;229040
Plating seat size (Größe)
3;4
Width of groove (w)
4
mm
Corner radius (r)
0.15
mm
| Downloads | |
|---|---|
| S229_0040_C1_20171121_201832368.STP | Download |
| S229_0040_C1.DXF | Download |
| Download all files | |
