S229.0300.FY2 IG35
Insert
Part number S2290300FY2IG35

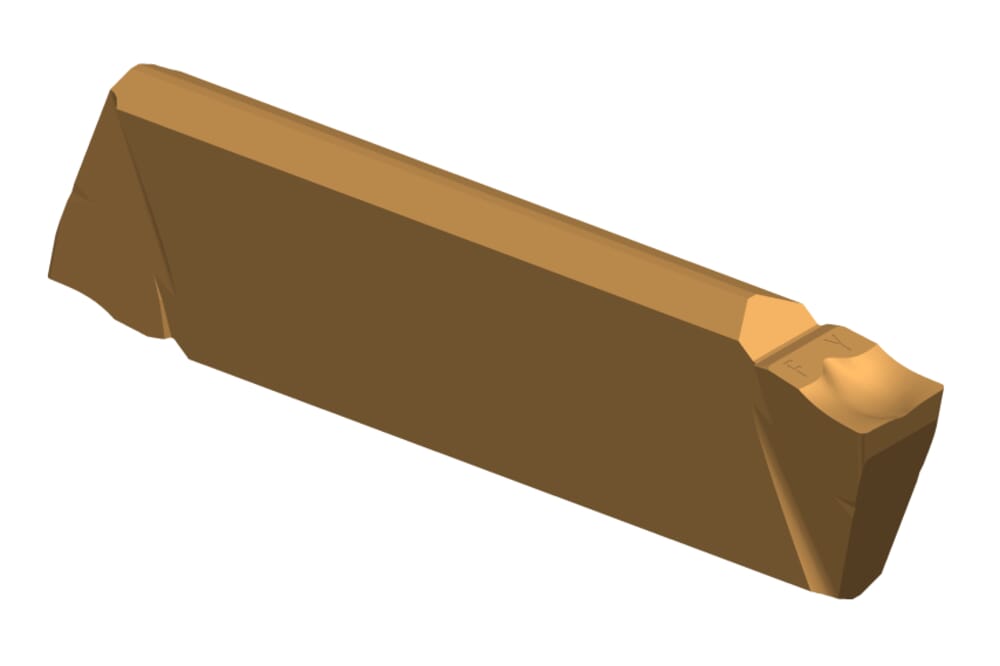

HORN Insert S229.0300.FY2 IG35 for Turning
Please note:Technical instructions
eclass-shortcut
21-18-20-03
ISO_SSC
HORN229020108N$$$$$;HORN229030108N$$$$$
DIN_SSC
HORN-229020108N;HORN-229030108N
Katalog_SSC
229020;229030
Plating seat size (Größe)
3
Width of groove (w)
3
mm
Corner radius (r)
0.2
mm
| Downloads | |
|---|---|
| S2290300FY2_20230116_214152009.STP | Download |
| S2290300FY2_20210629_065249195.DXF | Download |
| Download all files | |
