S229.0400.3V3 AS45
Insert
Part number S22904003V3AS45

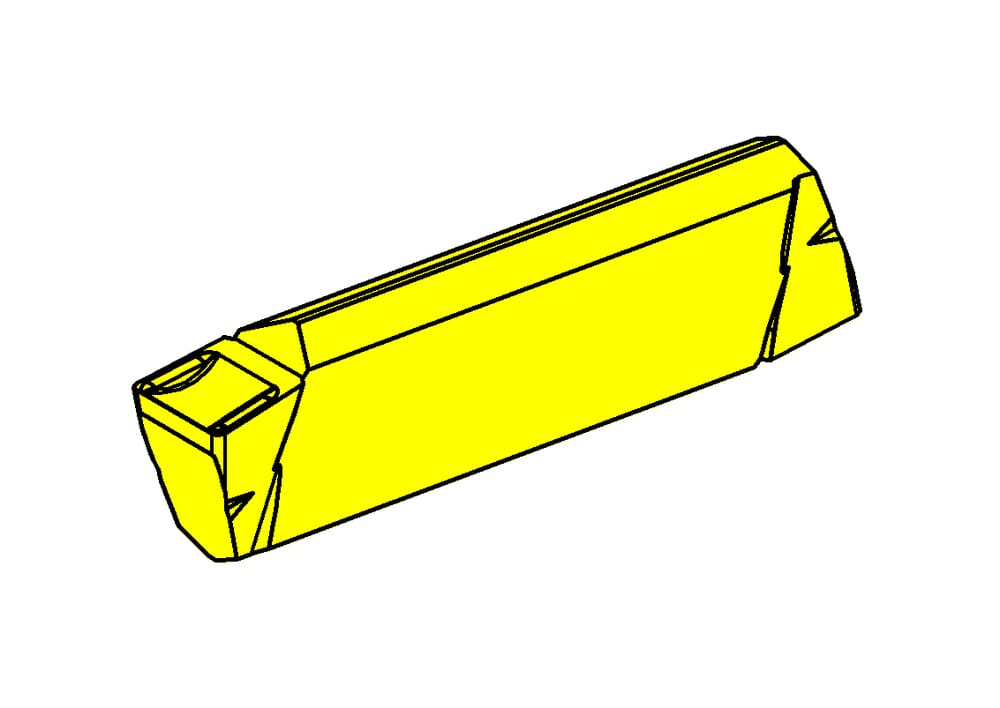

HORN Insert S229.0400.3V3 AS45 for Turning
Please note:Technical instructions
eclass-shortcut
21-18-20-11
ISO_SSC
HORN229030108N$$$$$;HORN229040108N$$$$$
DIN_SSC
HORN-229030108N;HORN-229040108N
Katalog_SSC
229030;229040
Plating seat size (Größe)
3;4

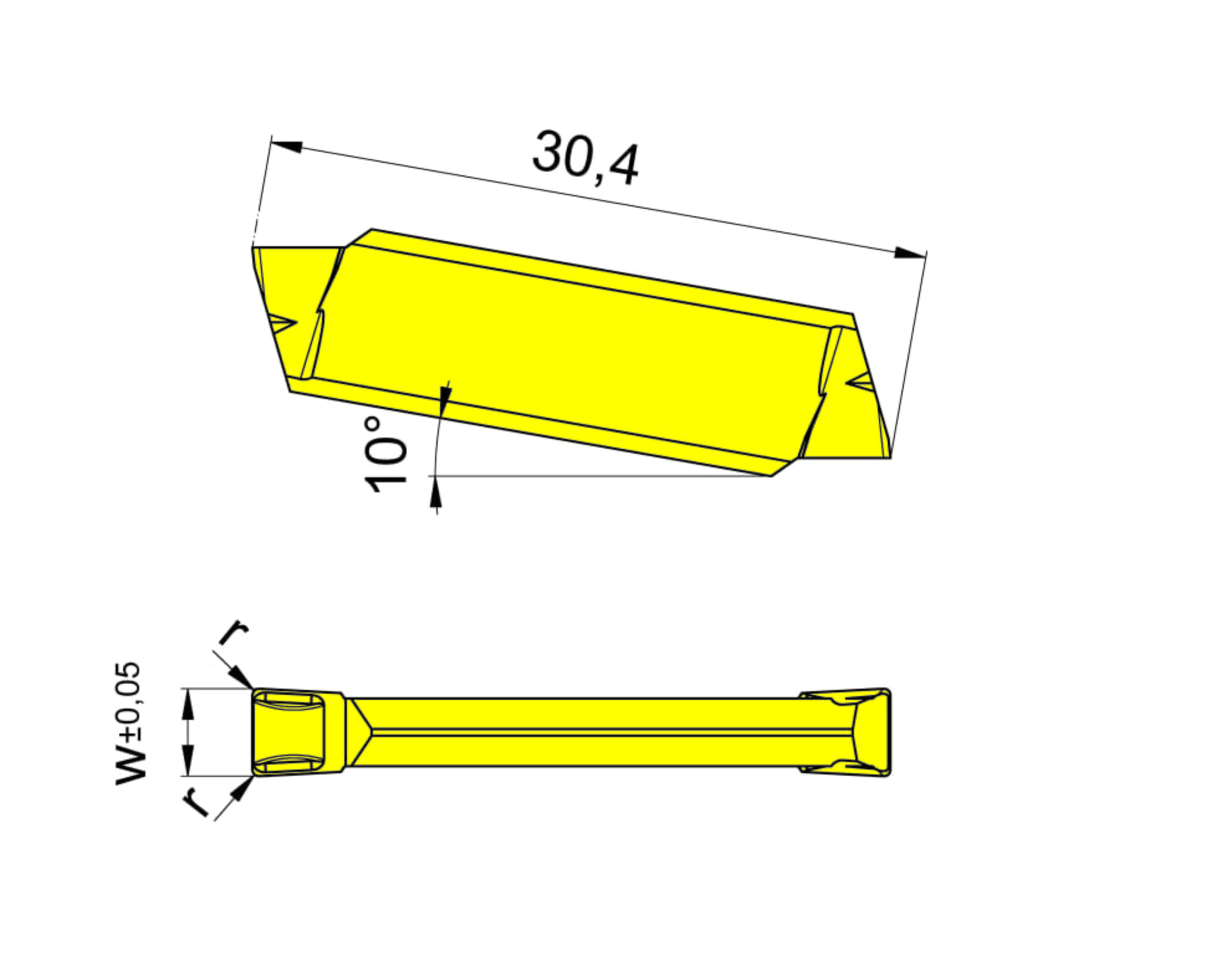

Width of groove (w)
4
mm
Corner radius (r)
0.3
mm
| Downloads | |
|---|---|
| S22904003V3_20210630_144700906.STP | Download |
| S22904003V3.DXF | Download |
| Download all files | |
