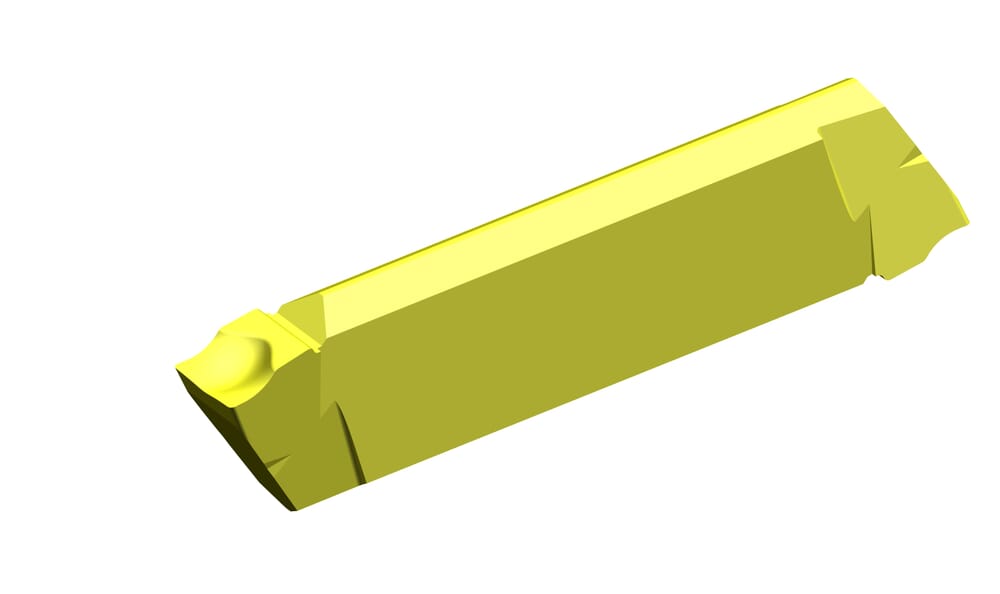

S229.0400.F2 TF45
Inserts
Part number S2290400F2TF45
HORN Inserts S229.0400.F2 TF45 for Turning
Please note:Technical instructions
eclass-shortcut
21-18-20-03
ISO_SSC
HORN229030108N$$$$$;HORN229040108N$$$$$
DIN_SSC
HORN-229030108N;HORN-229040108N
Katalog_SSC
229030;229040
Plating seat size (Größe)
3;4
Width of groove (w)
4
mm
Corner radius (r)
0.2
mm
| Downloads | |
|---|---|
| S2290400F2_20230116_215138843.STP | Download |
| S2290400F2_20211125_112310481.DXF | Download |
| Download all files | |
