S229.0400.H4 AL96
Insert
Part number S2290400H4AL96

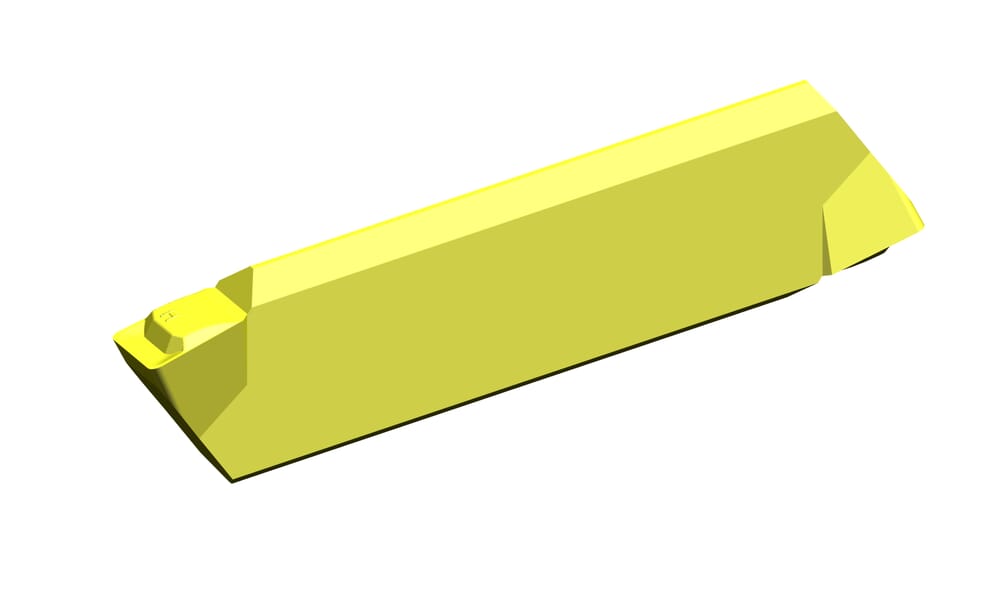

HORN Insert S229.0400.H4 AL96 for Turning
Please note:Technical instructions
eclass-shortcut
21-18-20-03
ISO_SSC
HORN229030108N$$$$$;HORN229040108N$$$$$
DIN_SSC
HORN-229030108N;HORN-229040108N
Katalog_SSC
229030;229040
Plating seat size (Größe)
3;4
Width of groove (w)
4
mm
Corner radius (r)
0.4
mm
| Downloads | |
|---|---|
| S2290400H4_20210630_141235715.STP | Download |
| S2290400H4_20210629_065825984.DXF | Download |
| Download all files | |
