S25A.0400.12 TH35
Insert
Part number S25A040012TH35

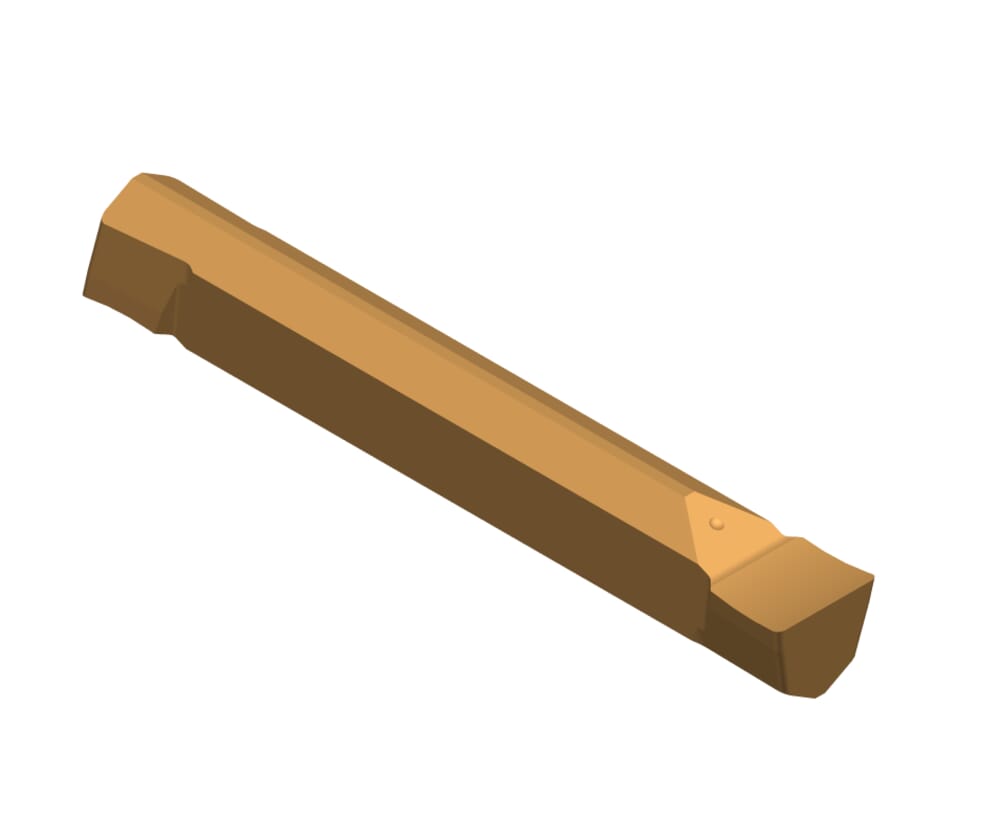

HORN Insert S25A.0400.12 TH35 for Turning
Please note:Technical instructions

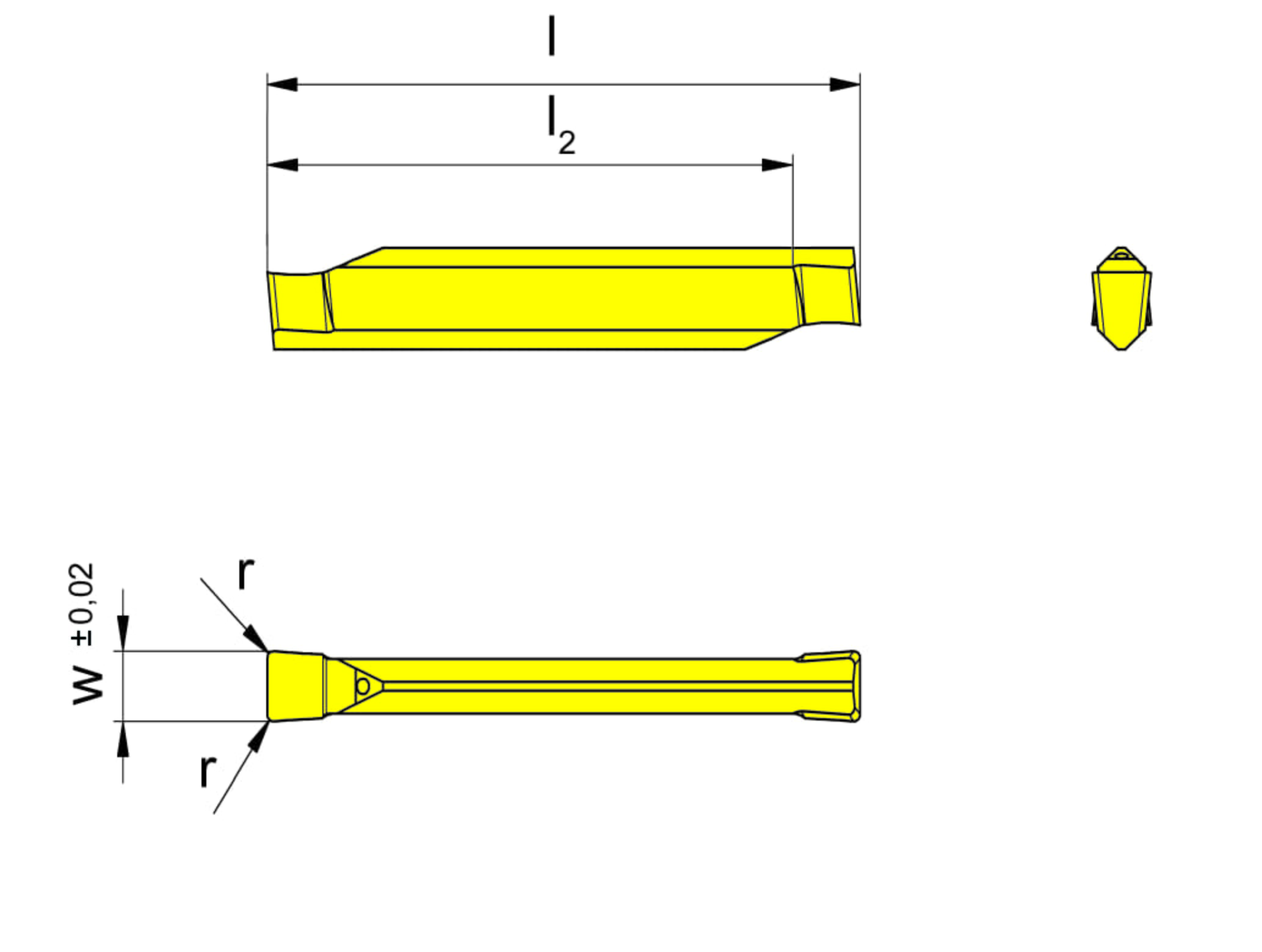

Outcropping, working length (l2)
20.5
mm
eclass-shortcut
21-18-20-11
ISO_SSC
HORN25A040008N$$$$$
DIN_SSC
HORN-25A040008N
Katalog_SSC
25A04
Plating seat size (Größe)
4
Width of groove (w)
4
mm
Corner radius (r)
0.2
mm
Total length (l)
24
mm
| Downloads | |
|---|---|
| S25A040012_20210630_142525753.STP | Download |
| S25A040012.DXF | Download |
| Download all files | |
